Quoizel QR1814 Assembly Instruction Sheet

6 CORPORATE PARKWAY
, .
GOOSE CREEK SC 29445
. .
www quoizel com
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
Package Contents
Mirror Hanger
A
x 2
Hanger Nail
B
x 4
To hang the mirror Vertically
To hang the mirror Horizontally
-
STEP 1 Identify the Points for
mounting the Mirror Hangers
A. Determine where the mirror will be
placed on the wall and hold the mirror on
the wall in the position you wish. Mark
the wall at the bottom center of the mirror
with a pencil lightly. This will be
Measurement A, the distance from the
floor to the bottom of the mirror.
B. Place the mirror on a flat surface again
and measure from the bottom of the
mirror to the hangers that will be used to
hang the mirror, this is measurement B.
C. Add measurement A from step A above
and measurement B together and mark
this spot on the wall where the mirror will be hung. Measurement B is
straight up from Measurement A you marked on the wall in step A
above.
D. Measure the distance between the centerline of each hanger and
then divide this measurement by 2, this is Measurement C. In order
to locate the exact hanger location on the wall, from Measurement B
go to the right the distance of Measurement C and mark the wall. Do
this going to the left of Measurement B as well and mark the wall.
These two marks are the center of the hangers, Measurement C. The
two marks you just made on the wall are the same distance apart as
the two hangers.
-
STEP 2 Installing the 2 Mirror Hangers
A. To determine where the Mirror Hangers
(A) will be fastened to the wall, measure
up from Measurement C 3". Do this in two
locations as illustrated and mark the
wall.
B. Using the Nails (B) provided with the
Mirror Hangers (A) attach the 2 Mirror
Hangers (A) to the wall at the position
just marked 3" above Measurement C.
Please note the Mirror Hangers are
adjustable allowing for easy leveling
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2014 QuoizelInc.
Assembly Instruction Sheet #IS-QR1814
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, gloves, safety glasses.
Estimated Assembly Time: 20-30 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the mirror. Contact customer service for replacement parts.
Warnings and Cautions
These instructions are provided for your safety. It is very important you read them completely before installing
the mirror. We strongly recommend that a licensed, professional electrician perform the installation.
Quoizel recommends 2 people for each step during assembly.
C
go to Step 1.
go to Step 4.
" C"
BACK
Floor
Surface
" A"
Figure 1
Mirror Hanger
Adjustment Screw
Hanger Nail
3"
C
Hook
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
For Style QR1814
of the mirror as needed.
C. Once you have both Mirror Hangers (A) securely nailed in place,
adjust as the length of the Mirror Hangers (A) so that each Mirror
Hanger (A) is the same length.
-
STEP 3 Hanging the Mirror
A. With the help of another person place
the mirror onto the mirror hanger
hooks. Making sure each hook is
securely hooked into the hangers
before letting go of the mirror.

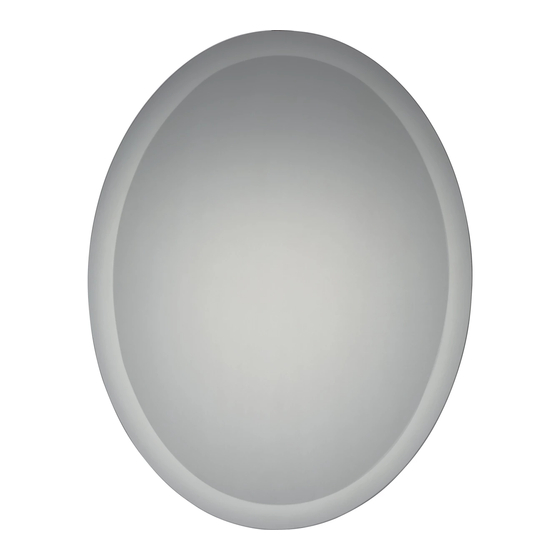

Mirror
B. If needed you may remove the mirror
x 1
and adjust the mirror hanger hooks to
level the mirror and replace the mirror.
Clean glass with household glass
cleaner. Retain this sheet for future
reference.
Hanger
-
STEP 4 Identify the Points for
mounting the Mirror Hangers
A. Determine where the mirror will be
placed on the wall and hold the mirror on
the wall in the position you wish. Mark
the wall at the bottom center of the mirror
with a pencil lightly. This will be
Measurement A, the distance from the
floor to the bottom of the mirror.
B. Place the mirror on a flat surface again
and measure from the bottom of the
mirror to the hangers that will be used to
hang the mirror, this is measurement B.
this spot on the wall where the mirror will be hung. Measurement B is
straight up from Measurement A you marked on the wall in step A
above.
D. Measure the distance between the centerline of each hanger and
then divide this measurement by 2, this is Measurement C. In order
to locate the exact hanger location on the wall, from Measurement B
go to the right the distance of Measurement C and mark the wall. Do
this going to the left of Measurement B as well and mark the wall.
These two marks are the center of the hangers, Measurement C. The
two marks you just made on the wall are the same distance apart as
the two hangers.
-
STEP 5 Installing the 2 Mirror Hangers
A. To determine where the Mirror Hangers
(A) will be fastened to the wall, measure
up from Measurement C 3". Do this in two
locations as illustrated and mark the
wall.
B. Using the Nails (B) provided with the
C
Mirror Hangers (A) attach the 2 Mirror
Hangers (A) to the wall at the position
Mark "B"
just marked 3" above Measurement C.
Please note the Mirror Hangers are
Figure 2
adjustable allowing for easy leveling
1of2
Mirror Hanger
Bracket
Catch
Hanger
Figure 3
Hanger
" C"
BACK
Floor
" A"
Surface
Figure 4
Mirror Hanger
Adjustment Screw
Hanger Nail
C
3"
C
Mark "B"
Hook
Figure 5
February2014
