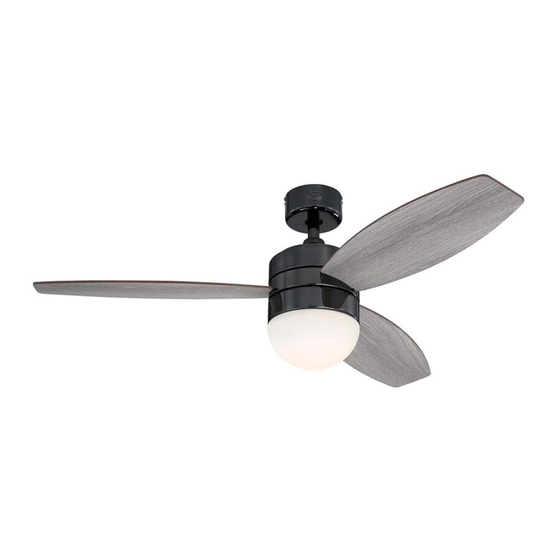

Westinghouse ETL-ES-Drake-WH23 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
MANUAL DEL USUARIO
Drake
Please write model number here for future reference:
Por favor, incluya el número del modelo aquí para futura referencia:
ETL-ES-Drake-WH23
Net Weight:
14.00 LBS
Peso Neto:
6.35 KGS

Advertisement

loading
Need help?

Need help?

Do you have a question about the ETL-ES-Drake-WH23 and is the answer not in the manual?

Questions and answers

Related Manuals for Westinghouse ETL-ES-Drake-WH23

Summary of Contents for Westinghouse ETL-ES-Drake-WH23

  • Page 1 ETL-ES-Drake-WH23 OWNER'S MANUAL MANUAL DEL USUARIO Drake Please write model number here for future reference: Por favor, incluya el número del modelo aquí para futura referencia: Net Weight: 14.00 LBS Peso Neto: 6.35 KGS...

  • Page 2: Safety Tips

    ETL-ES-Drake-WH23 SAFETY TIPS OBSERVE THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT TO OUTLET BOX MARKED ' A CCEPTABLE FOR FAN SUPPORT OF 35 LBS (15.9 KG) OR LESS' AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX AND/OR SUPPORT DIRECTLY FROM BUILDING STRUCTURE.

  • Page 3: Consejos De Seguridad

    ETL-ES-Drake-WH23 CONSEJOS DE SEGURIDAD HAGA LO SIGUIENTE: LEA Y GUARDE ESTAS INSTRUCCIONES ADVERTENCIA: PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA ELÉCTRICA O HERIDAS PERSONALES, MONTE EN UNA CAJA DE EMBUTIR ROTULADA “ADECUADA PARA VENTILADORES DE 35 LB (15,9 KGS ) O MENOS”...
  • Page 4 ETL-ES-Drake-WH23 FEATURES CARACTERÍSTICAS DOWNROD INSTALLATION INSTALACIÓN CON VARILLA VERTICAL For normal ceilings COMBO-BLADE Combo-Blades feature two high quality finishes on one blade. Select the one that best complements Para techos normales your decor, or change the style with just a flip of the blade.
  • Page 5 ETL-ES-Drake-WH23 PREPARING FOR INSTALLATION PREPARANDO PARA DE LA INSTALACIÓN Use metal outlet box suitable for fan support (must support 35 lbs). Before attaching fan to outlet box, ensure the outlet box is securely fastened by at least two points to a structural ceiling member (a loose box will cause the fan to wobble).
  • Page 6 ETL-ES-Drake-WH23 MOUNTING BRACKET INSTALLATION INSTALACIÓN CON SOPORTE DE MONTAJE Remove the screws from the two mating holes (2) on the canopy. Loosen (do not remove) the screws in the mating slots (1) on the canopy. Rotate the mounting bracket and remove from the canopy.
  • Page 7 ETL-ES-Drake-WH23 MOUNTING BRACKET INSTALLATION MOUNTING OPTIONS INSTALACIÓN CON SOPORTE OPCIONES DE MONTAJE DE MONTAJE Choose a MOUNTING OPTION Elija una OPCIÓN DE MONTAJE NORMAL DOWNROD OPTION If installing downrod supplied with fan, proceed to page 10, step 8. OPCIÓN CON VARILLA VERTICAL PARA TECHO NORMAL Si instala la varilla vertical incluida con el ventilador, proceda a la página 10, paso 8.
  • Page 8 ETL-ES-Drake-WH23 EXTENDED DOWNROD OPTION OPCIÓN CON VARILLA VERTICAL MÁS LARGA Loosen the downrod ball (1) from downrod (2) by removing the screw (3). Slide downrod ball (1) off of downrod and remove pin (4). Afloje la bola de la varilla vertical (1) de la varilla vertical (2) quitando el tornillo de fijacion (3). Deslice la bola de la varilla vertical (1) hasta separarla de la varilla vertical y quite el...
  • Page 9 ETL-ES-Drake-WH23 EXTENDED DOWNROD OPTION OPCIÓN CON VARILLA VERTICAL MÁS LARGA Re-install pin into downrod, and slide downrod ball up to the top of the downrod. Re-install the screw to secure ball to downrod. Note: Some extended downrods have a pre-drilled set-screw hole. If a pre-drilled hole is present in the extended downrod, tighten the set screw into the pre-drilled hole in the extended downrod. If no pre- drilled hole exists in the extended downrod, tighten the screw against the downrod to secure the downrod ball.
  • Page 10 ETL-ES-Drake-WH23 DOWNROD PREPARATION PREPARANDO LA VARILLA VERTICAL Remove clamp pin (1) and cross pin (2) from downrod (3). Quite el pasador tipo prensa (1) desde el pasador transversal (2) de la varilla vertical (3).
  • Page 11 ETL-ES-Drake-WH23 NORMAL DOWNROD OPTION OPCIÓN CON VARILLA VERTICAL PARA TECHO NORMAL Insert downrod into downrod coupling. Make sure to align hole in downrod with the hole in down- rod coupling. Install cross pin (1) through coupling and downrod. Insert keeper pin (2) into cross pin until it snaps into place.
  • Page 12 ETL-ES-Drake-WH23 BLADE INSTALLATION INSTALACIÓN DE LAS ALETAS Insert the blades through the slots on the motor housing as shown, and use the provided blade screws and fabric washers to tighten the blades to the pre-attached blade brackets. Inserte las aletas a través de las ranuras en la carcasa del motor como se muestra, y use los tornillos para aletas y las arandelas de tela provistos para apretar las aletas a los soportes de...
  • Page 13 ETL-ES-Drake-WH23 LIGHT FIXTURE INSTALLATION INSTALACIÓN DEL JUEGO DE LUZ Carefully insert lead wires through the center hole of the converting plate (1). The converting plate has 2 keyhole slots, align the slots to the protruding screws from support plate (2). Attach and rotate the con- verting plate clockwise to engage the key-slots, then Install the screw removed in step 12 into the closed hole and tighten all 3 screws securely.
  • Page 14 ETL-ES-Drake-WH23 LIGHT FIXTURE INSTALLATION INSTALACIÓN DEL JUEGO DE LUZ Remove one of the screws on the converting plate (1), and loosen, (do not remove) the other two (2). Connect the wire plugs from the motor (3) to the wire plugs from the light kit (4), white to white, and blue to black.
  • Page 15 ETL-ES-Drake-WH23 LIGHT FIXTURE INSTALLATION INSTALACIÓN DEL JUEGO DE LUZ The LED light kit (1) has 2 keyhole slots, align the slots to the protruding screws from converting plate (2). Attach and rotate the LED light kit (1) clockwise to engage the key-slots, then Install the screw removed in step 14 into the closed hole and tighten all 3 screws securely.
  • Page 16 ETL-ES-Drake-WH23 MOUNTING MONTAJE Carefully lift fan assembly onto mounting bracket. Rotate fan until notch on downrod ball (1) engages the ridge on the mounting bracket (2). This will allow your hands to be free for wiring. Levante con cuidado el conjunto del ventilador hasta el soporte de montaje. Gire el ventilador hasta que la muesca de la bola de la varilla vertical (1) enganche sobre la sali-...
  • Page 17 ETL-ES-Drake-WH23 WIRING OPTIONS OPCIÓN DE CABLEADO OPCIÓN DE CABLEADO PARA CONTROL REMOTO REMOTE CONTROL WIRING OPTION Green Ground Verde (de tierra) Fuente de White (neutral) AC Power AC IN N AC IN N Entrada C.A. N Entrada C.A. N Blanco (neutro) alimentación...
  • Page 18 ETL-ES-Drake-WH23 WIRING OPTIONS OPCIÓN DE CABLEADO Once wiring step has been completed, slide the wired remote receiver in between the mounting bracket and the top of the downrod ball for downrod fans. Al terminar la instalación del cableado, deslice el receptor remoto inalámbrico entre el soporte de montaje y la parte superior de la bola de la varilla vertical.
  • Page 19 ETL-ES-Drake-WH23 SECURE TO CEILING ASEGURE EL VENTILADOR AL TECHO For downrod fans, slide the canopy up to the mounting bracket. Para ventiladores con varilla vertical, deslice el dosel hacia arriba hasta el soporte de montaje. The canopy has two mating slots (1) and two mating holes (2). Position both slots on canopy directly under and in line with two screws in the mounting bracket (3). Lift the canopy, allow- ing the two screws to slide into the mating slots.
  • Page 20 ETL-ES-Drake-WH23 LIGHT FIXTURE INSTALLATION INSTALACIÓN DEL JUEGO DE LUZ Locate the indentations on the neck of the glass and align with the protrusions on the inside of the light kit. Lift the glass up allowing the protrusions to engage the indentations of the glass, and twist the glass clockwise to lock into place.
  • Page 21 ETL-ES-Drake-WH23 To reverse the direction of the blades, slide the reverse switch (located on the top of the motor housing) to the opposite side. Note: Make sure slide switch is pushed firmly to one side or the other. The fan will not operate with the slide switch in the middle.
  • Page 22 ETL-ES-Drake-WH23 HOW TO OPERATE YOUR CEILING FAN INSTRUCCIONES PARA OPERAR SU VENTILADOR DE TECHO Mount the transmitter holder onto the wall using screws provided. Place the transmitter into the holder. Monte el soporte para el transmisor a la pared usando los tornillos incluidos. Coloque el transmisor en el...
  • Page 23 ETL-ES-Drake-WH23 HOW TO OPERATE YOUR CEILING FAN INSTRUCCIONES PARA OPERAR SU VENTILADOR DE TECHO Restore electrical power to the outlet box by turning on the electricity at the main fuse box. To make the fan operational, open battery door by pressing and sliding down the battery door.
  • Page 24 ETL-ES-Drake-WH23 HOW TO OPERATE YOUR CEILING FAN INSTRUCCIONES PARA OPERAR SU VENTILADOR DE TECHO Restaure la energía eléctrica a la caja de embutir encendiendo la electricidad en la caja de fusibles principal. Para que el ventilador funcione, abra la puerta de la batería presionando y deslizándola hacia abajo.
  • Page 25 ETL-ES-Drake-WH23 HOW TO OPERATE YOUR CEILING FAN INSTRUCCIONES PARA OPERAR SU VENTILADOR DE TECHO The remote buttons function as follows: (1) Fan speed: = High speed = Medium-high speed = Medium Speed = Low Speed Button: Turn the fan off - Light On/Off –...

  • Page 26: Operation

    ETL-ES-Drake-WH23 OPERATION AND MAINTENANCE Operation Turn on the power and check operation of fan. Speed settings for warm or cool weather depend on factors such as room size, ceiling height, number of fans and so on. The slide switch controls direction, forward or reverse.

  • Page 27: Operación

    ETL-ES-Drake-WH23 OPERACIÓN Y MANTENIMIENTO Operación Encienda el ventilador y verifique su funcionamiento. Las velocidades para clima cálido o frío dependen de factores como el tamaño de la habitación, la altura del ventilador, el número de ventiladores, etc. El interruptor deslizante controla la dirección, hacia adelante o hacia atrás.

  • Page 28: Troubleshooting Guide

    ETL-ES-Drake-WH23 If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation, or wiring. In some cases, these TROUBLESHOOTING GUIDE installation errors may be mistaken for defects. If you experience any faults, please check this troubleshooting chart. If a problem cannot be remedied, please consult with your qualified electrician and do not attempt any electrical repairs yourself.
  • Page 29 ETL-ES-Drake-WH23 Si tiene dificultades para hacer funcionar su nuevo ventilador, podría ser a causa del armado, instalación o cableado incorrectos. En algunos GUÍA PARA SOLUCIONAR PROBLEMAS casos, estos errores de instalación podrían ser confundidos con defectos. Si experienca algun fallo, consulte esta guía para solucionar problemas.

  • Page 30: Warranty

    If replacement product is not available through seller, please contact www.westinghouselighting.com/contact-us. GARANTÍA Este ventilador de Westinghouse Lighting se ofrece con una garantía limitada de por vida para el propietario original frente a defectos de material y de mano de obra. Esta garantía sustituye cualquier otra garantía expresa o implícita.
  • Page 31 ETL-ES-Drake-WH23 PARTS LIST LISTA DE REPUESTOS Description 1 ..Mounting Bracket (assembled with Canopy) 2 ..Blade (qty 3) 3 ..Glass shade 4 ..Remote control 5 ..Capacitor 6 ..Hardware pack 7 ..Down Rod Assembly (includes down rod ball, cross pins, clamp pin) 8 ..
  • Page 32 ETL-ES-Drake-WH23 Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A. www.westinghouselighting.com and Westinghouse are trademarks of Westinghouse Electric Corporation. Used under license by Westinghouse Lighting. All Rights Reserved. Made in China...
