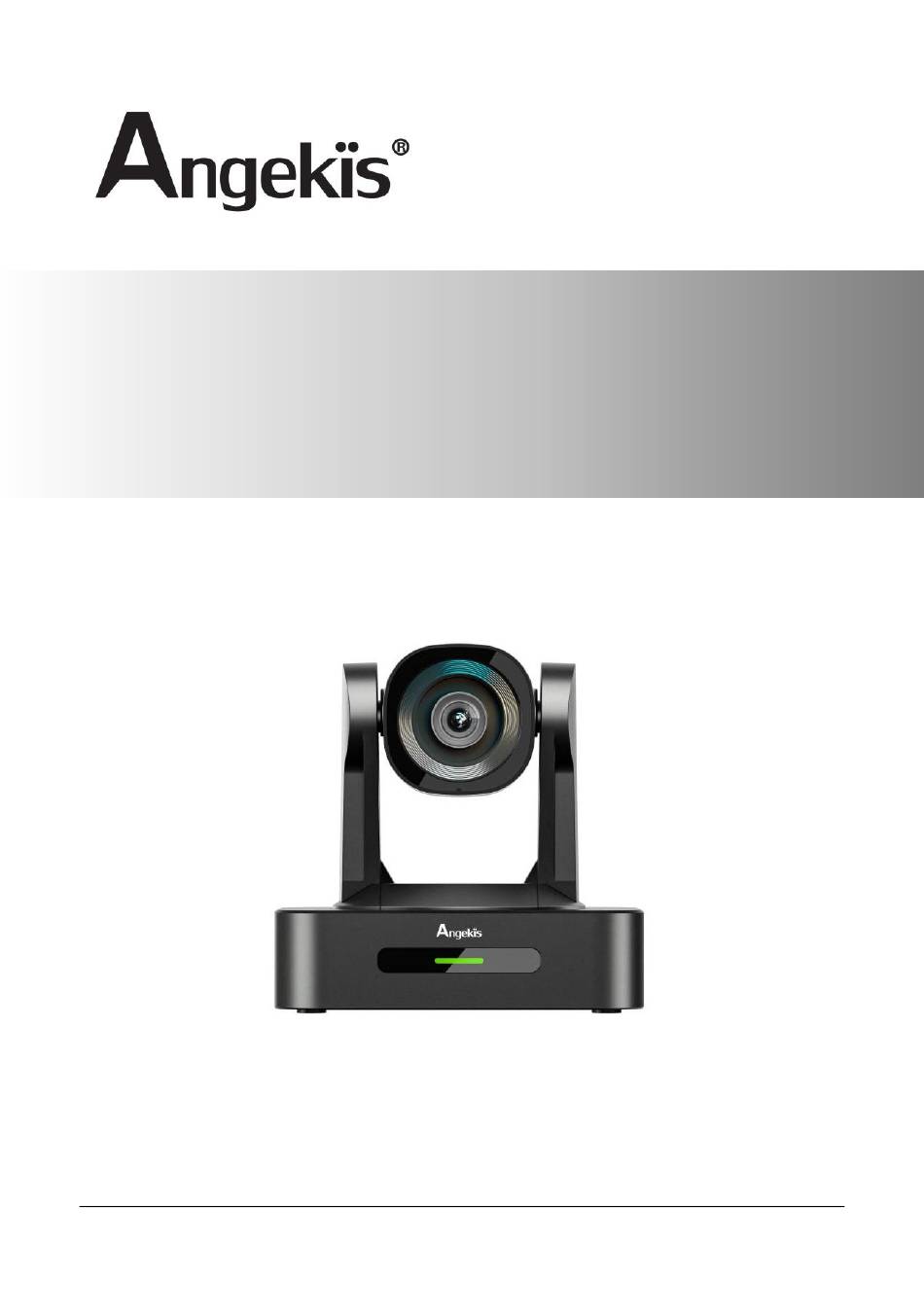

Saber X
ANG2-31UHD-01
User Manual V1.0 EN
Please refer this document before using

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Saber X and is the answer not in the manual?

Questions and answers

Related Manuals for Angekis Saber X

Summary of Contents for Angekis Saber X

  • Page 1 Saber X ANG2-31UHD-01 User Manual V1.0 EN Please refer this document before using...

  • Page 2: Table Of Contents

    ANG2-31UHD-01 CONTENT ......................1 SAFETY GUIDES .....................2 USE CHECK ..................... 4 PRODUCT HIGHLIGHTS ................6 CAMERA SPEC ....................7 INTERFACE DESCRIPTION ................9 IR REMOTE CONTROLLER ................ 10 VISCA IN(RS232 PORT) ................12 VISCA PROTOCOL ..................14 PELCO-D PROTOCOL .................. 28 PELCO-P PROTOCOL ................... 29 OSD MENU ....................

  • Page 3: Safety Guides

    Safety Guides ● Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. ● The camera power voltage is 12V DC, rated currency is 2A. We suggest you use it with the original power supply adapter supplied by the factory.
  • Page 4 Safety Guides Attention！ ▲ The video quality may be affected by the specific frequencies of electromagnetic field. ▲ Never grasp the head of the camera, and never move the camera by hand when it is working, otherwise, mechanism maybe destroyed. Declaration：...

  • Page 5: Use Check

    Use Check PACKING LIST Check all below items when open the package Camera ················································· 1PCS Power Adapter········································· 1PCS Power Cable··········································· 1PCS Remote Controller···································· 1PCS USB Type-C Cable····································1PCS RS232 Cable··········································· 1PCS User Manual··········································· 1PCS Shock-absorbing Pad································· 1PCS QUICK START — 4 —...
  • Page 6 Use Check Dial Switch Setting (at the bottom of the camera) Dial Switch (ARM) SW-1 SW-2 Instruction Upgrading mode Debugging mode Undefined Working mode Dial Switch SW-3 SW-4 Instruction Reserved Reserved Reserved Reserved Dial Switch SW-5 SW-6 Instruction Undefined Working mode Undefined Undefined —...

  • Page 7: Product Highlights

    Product Highlights ★ Adopting the most advanced image processing DSP, 1/1.8 inch 12MP sensor. ★ 4K wide angle optical lens: 30x optical zoom, with 60 degree field of view. ★ IP Ultra HD 4K60 video output, while supporting H.264, H.265 encoding. ★...

  • Page 8: Camera Spec

    Camera Spec ANG2-31UHD-01 Sensor 1/1.8inch high quality、12MP CMOS Sensor 3840*2160P60/59.94/50/30/29.97/25 1920*1080P60/59.94/50/30/29.97/25/24/23.98 HDMI 1920*1080I60/59.94/50 1280*720P60/59.94/50/30/29.97/25 1920*1080P60/59.94/50/30/29.97/25/24/23.98 1920*1080I60/59.94/50 1280*720P60/59.94/50/30/29.97/25 Video Format MJPG, H.264: 3840*2160P30; 1920*1080P30; 1280*720P30; 1024*576P30; 800*448P30 NV12: 1920*1080P10; 1280*720P25; 1024*576P30; 800*448P30 3840*2160P15~60;1920*1080P15~60; 1280*720P15~60; 1024*576P15~60; 640*360P15~30 Video Interface HDMI, SDI, RJ45, USB Type-C Audio Interface 3.5mm Line in Focal Length...
  • Page 9 Camera Spec Daisy Chain Support RS232 serial daisy chain Minimum Lux 0.5lux White Balance Auto / Manual / ATW / Push / Indoor / Outdoor / Color Temperature Exposure Auto / Manual /Shutter / Iris / Bright Focus Auto / Manual Iris Auto / Manual Shutter...

  • Page 10: Interface Description

    Interface Description 1.Camera Lens 6.Tripod Screw Hole 11.USB Type-C port 2.Camera Base 7.Installation Hole 12.HDMI port 3.IR Receiver Panel 8.RS232 ((IN) port 13.3G-SDI port 4.Power Indicator Light 9.RS232 (OUT) port 14.RJ45 port 5.Dial Switch 10.Line in port 15.DC 12V plug —...

  • Page 11: Ir Remote Controller

    IR REMOTE CONTROLLER Power Key Under Normal working mode , short press Power, key to let the camera enter standby mode; Press it again , the camera will do self- configuration and then go back to HOME position；It will go to preset position if the power on mode has been set.
  • Page 12 IR REMOTE CONTROLLER Menu Key OK: to confirm the menu selection Menu：enter/exit menu Back：Back to previous menu F+/F-: Set focus by manual, only valid under manual focus mode. T/W: Set the lens zoom rate Navigating Key: Up/Down/Left/Right Under normal working mode, use navigate key to set the pan tilt, and select values when enter OSD.

  • Page 13: Visca In(Rs232 Port)

    VISCA In(RS232 Port) V_IN V_OUT V_IN RS485 A(+) B(-) VISCA IN & Mini DIN VISCA IN & DB9 Connection Connection CameraVISCA IN Windows DB-9 Camera VISCA IN Mini DIN A(+) A(+) IR OUT IR OUT B(-) B(-) — 12 —...
  • Page 14 VISCA In(RS232 Port) VISCA Network Construction： SERIAL PORT CONFIGURATION： Parameter Value Baud rate 2400/4800/9600/115200 Start bit 1bit Date bit 8bits Stop bit 1bit Check bit None — 13 —...

  • Page 15: Visca Protocol

    VISCA Protocol Part1 Camera Return Command Ack/Completion Message command Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. Error Messages command Note Returned when the command format is different or when a Syntax Error z0 60 02 FF command with illegal command parameters is accepted.
  • Page 16 VISCA Protocol Command type function command Wide (Variable) 8x 01 04 06 3p FF Enable In separate mode Direct 8x 01 04 46 0p 0q 0r 0s FF Enable In separate mode Stop 8x 01 04 08 00 FF Far(Standard) 8x 01 04 08 02 FF Near(Standard) 8x 01 04 08 03 FF...
  • Page 17 VISCA Protocol Command type function command Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF Shutter Setting CAM_Shutter Down 8x 01 04 0A 03 FF pq: Shutter Position Direct 8x 01 04 4A 00 00 0p 0q FF (0~0x15) Reset 8x 01 04 0B 00 FF...
  • Page 18 VISCA Protocol Command type function command Reset 8x 01 04 3F 00 pp FF pp: Preset Number(=0 to 8x 01 04 3F 01 pp FF CAM_Memory(preset) 127) Recall 8x 01 04 3F 02 pp FF Reset 8x 01 04 3F 00 0p 0p FF pp: Preset Number(=0 to CAM_MemoryH 255)
  • Page 19 VISCA Protocol Command type function command CAM_Preset Zoom Preset Zoom qq:Preset Zoom Speed 81 01 7E 01 2B 00 qq FF Speed Set Speed Set 01~07 default:5 Preset Speed p: Adjustment of direction CAM_Preset Speed Adj 8x 01 7E 01 1B 0p FF 3=down, 2=up CAM_IR address IR address...
  • Page 20 VISCA Protocol Command type function command 0p：0x01-ON 0x00-OFF 0q：0x01-line in rstu：samplerate 8x 01 04 D8 0p 0q 0r 0s 0t 0u CAM_AudioSet Direct mn： volume 0~100 0m 0n 0h 0i 0j FF h： encode mode 4：LPCM 5: ACC ij： bitrate*1000 50HZ 8x 01 04 23 01 FF FLICK...
  • Page 21 VISCA Protocol Command type function command pq: Video format 1080P60 0x2e 1080P50 0x2f 1080I60 0x01 1080I50 0x04 1080P30 0x06 1080P25 0x08 720P60 0x09 720P50 0x0c 720P30 0x0e 720P25 0x11 1080P5994 0x13 Video System Set(Sony) 8x 01 04 24 72 0p 0q FF 1080I5994 0x02 1080P2997...
  • Page 22 VISCA Protocol Command type function command Frame rate: 0xpq Frame Rate 8x 01 04 C2 03 0p 0q FF (15~60) IDR Setting: 0xpq 8x 01 04 C2 04 0p 0q FF (1~120) Contor mode: 0xpq Stream Rate 0x00: CBR 8x 01 04 C2 05 0p 0q FF Mode 0x01: VBR pqrs : Column(x size)
  • Page 23 VISCA Protocol Command type function command Stop 8x 01 06 01 VV WW 03 03 FF Absolute 8x 01 06 02 VV WW 0Y 0Y Position 0Y 0Y 0Z 0Z 0Z 0Z FF Relative 8x 01 06 03 VV WW 0Y 0Y Position 0Y 0Y 0Z 0Z 0Z 0Z FF Home...
  • Page 24 VISCA Protocol Command type command return note CAM_BGain Inq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain CAM_Saturation Inq 8x 09 04 A1 FF y0 50 00 00 0p 0q FF pq: saturation CAM_Contrast Inq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF...
  • Page 25 VISCA Protocol Command type command return note CAM_DHCP Inq 8x 09 04 AE FF y0 50 pp FF y0 50 0p 0p 0q 0q 0r 0r 0s CAM_IP Inq 8x 09 04 AB FF 0s FF y0 50 0p 0p 0q 0q 0r 0r 0s CAM_MASK Inq 8x 09 04 AC FF 0s FF...
  • Page 26 VISCA Protocol Command type command return note CAM_AT_LimitEnable_I 8x 09 04 D7 FF y0 50 0p FF p: 1=Enable 0=Disable 0p：0x01-ON 0x00-OFF 0q：0x01-line in rstu：samplerate 8x 01 04 D8 0p 0q 0r 0s 0t CAM_AudioSet 8x 09 04 D8 FF mn：...
  • Page 27 VISCA Protocol Command type command return note pqrs : Column(x size) Sub stream Resolution 8x 09 04 C3 00 y0 50 0p 0q 0r 0s 0m 0n 0x mnxy: Line (y size) 0y FF only support: 640*360 8x 09 04 C3 01 y0 50 0p 0q 0r 0s 0m 0n 0x pqrsmnxy: bitrate Sub stream Rate Inq...
  • Page 28 VISCA Protocol VISCA PAN TILT ABSOLUTE POSITION VALUE PAN ANGLE VISCA value TILT ANGLE VISCA value -170 0xF670 0xFE50 -135 0xF868 0x0000 0xFAF0 0x01B0 0xFD78 0x0360 0x0000 0x510 0x0288 0x0510 0x0798 0x0990 VISCA PAN TILT SPEED VALUE Pan(Degree/Second) Tilt(Degree/Second) — 27 —...

  • Page 29: Pelco-D Protocol

    PELCO-D Protocol Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed...

  • Page 30: Pelco-P Protocol

    PELCO-P Protocol Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 Tilt 0Xa0 Address 0x00 0x08 Pan Speed 0Xaf Speed Tilt Down 0Xa0 Address 0x00 0x10 Pan Speed 0Xaf Speed Tilt Left 0Xa0 Address 0x00 0x04 Pan Speed 0Xaf Speed Tilt Right 0Xa0...

  • Page 31: Osd Menu

    OSD Menu 1. Under working mode, press the MENU key on the IR remote controller, to enter the OSD menu as below: 2. After entering the main menu, use the navigate UP/DOWN key to select the main menu. Once selected, the main menu will change to the blue background, and the right side will show sub-menu options.
  • Page 32 OSD Menu EXPOSURE AUTO、MANUAL、SHUTTER、IRIS、 Default: AUTO MODE BRIGHT Shutter speed: 1/30~1/10000, only valid SHUTTER Default: AUTO under MANUAL and SHUTTER mode Iris setting: CLOSE~F1.8, only valid under IRIS Default: AUTO MANUAL and IRIS mode EXPOSURE Gain setting: 0dB~30dB, only valid under GAIN Default: AUTO MANUAL mode...
  • Page 33 OSD Menu FOCUS HIGH, NORMAL, LOW Default: NORMAL SENSITIVITY SPEED BY Optional: OFF, ON Default: ON ZOOM FLIP Flip horizontal Default: OFF MIRROR Flip vertical Default: OFF PT SPEED Set Pan Tilt speed: 5~24 Default: 18 ZOOM SPEED Set Zoom speed: 1~7 Default: 5 PRESET SETTINGS...
  • Page 34 OSD Menu IR ADDRESS Camera IR control address CLIENT VISCA MODEL NO. Model number INFO RMATIONS ARM VERSION ARM firmware version ISP VERSION Camera ISP firmware version RELEASE DATE Software release date Set IP Address in Menu In order to help customers debug, the camera has the support menu to set the IP address.

  • Page 35: Uvc Control

    UVC Control 1. Only run the client’s software after the camera has completed self-configuration (the IR indicator in blue color and will not flash); otherwise may cause black screen issue. 2. Make sure the camera is recognized by the PC Device Manager. 3.

  • Page 36: Web Setting

    WEB Setting It is not necessary to install additional video player plug-in to preview the local screen on the web interface. The web interface supports Google Chrome, Firefox, IE, Safari, Opera, 360, QQ and other browsers, adaptability is very good. 1.
  • Page 37 WEB Setting 3. Parameter Setting Click “Setting” to enter the parameter setting interface as following: “Video Encode”: can set image encode mode, main stream and sub stream resolution/bit rate/frame rate, bit rate control way, and I frame interval etc. as above image.
  • Page 38 WEB Setting “Video Transmission”: RTMP settings and SRT settings can be made, and if the camera is a NDI model, NDI settings can be made, as shown in the following figure： "Audio Settings": the audio enable can be off / on, the encoding mode can be selected, and the parameters such as sampling rate and bit rate can be adjusted, as shown in the following figure: Note: SRT can support external audio input, but the sample rate should be...
  • Page 39 WEB Setting Focus including focus mode, default focal distance, digital zoom etc. Exposure includes exposure mode, shutter speed, gain, iris, brightness, and anti-flicker. White Balance includes white balance mode, red gain, blue gain. Image includes mirror, flip, backlight compensation, Gamma, WDR(wide dynamic range).
  • Page 40 WEB Setting Noise reduction includes 2D/3D reduction. There is on/off option for 2D, and off/auto/1~4 six options. Digital Output option sets the resolution of the camera's HDMI and SDI images. “AI Setting”option includes Enable, Avatar position, Avatar scale and Avatar switching, so you can choose the right tracking effect according to the actual application scenario.
  • Page 41 WEB Setting “Ethernet” includes DHCP mode, IP address, Netmask, Gateway, Http Port, RTSP Port, Visca Over IP. Default parameter as following: OFF/ON Gateway DHCP 192.168.1.1 RTSP Port IP AAddress 192.168.1.188 192.168.1.1 RTSP Encrypt OFF/ON Netmask HTTP Port VISCA Over IP 255.255.255.0 52381 “Firmware upgrade”: it is for camera program upgrade, support ISP program...
  • Page 42 WEB Setting “Account Setting”: is used for setting camera account and password Input the account firstly, then input same password twice, click set to finish Please remember account and password, otherwise you may be not able to login. “System Time”: Set the time zone and NTP enable. —...

  • Page 43: View Rtsp Video Via Vlc

    View RTSP Video Via VLC Default RTSP main streaming address: rtsp://192.168.1.188/stream/main Default RTSP sub streaming address: rtsp://192.168.1.188/stream/sub Default RTMP main streaming address: rtmp://192.168.1.188:1935/app/rtmpstream0 Default RTMP sub streaming address: rtmp://192.168.1.188:1935/app/rtmpstream1 1. Run VLC Media Player. 2. Media->network stream, to enter into “open media” interface. 3.

  • Page 44: Visca Over Ip

    VISCA over IP VISCA over IP： VISCA over IP means VISCA protocol transmit via IP, to reduce RS232/RS485 cable layout (the controller must support IP communication function) Communication port spec: Control port: RJ45 Gigabit LAN  IP protocol: IPv4  Transmit protocol: UDP ...
  • Page 45 VISCA over IP Command format: the following is message head and valid message format. Note: LAN output way is big-endian, LSB is in the front. Payload type: Data definition as following: Value Value Name Value (Byte 0) (Byte1) VISCA command 0x01 0x00 Stores the VISCA command.
  • Page 46 VISCA over IP becomes the max value, it will change to 0 for next time. The peripheral equipment will save sequence number of each command, and return the sequence number to the controller. Payload According to Payload type, the following data will be saved. VISCA command ...
  • Page 47 VISCA over IP controller will wait for the return message then send the next command, we can detect and confirm if the peripheral equipment receive the commands from return message’s lag time. If controller shows it is overtime, it is regarded as error transmission.
  • Page 48 VISCA over IP Sequence chart as following Sequence chart when command lost Sequence chart when returned message lost Note: Do not set IP address, sub net mask, gateway parameter in VISCA over IP command, otherwise, it will cause network breaks off. Due to change these parameter, network will be in off status.
  • Page 49 Copyright ® Angekis Technology Co., Ltd All Rights Reserved. FACEBOOK https://www.angekis.com...
