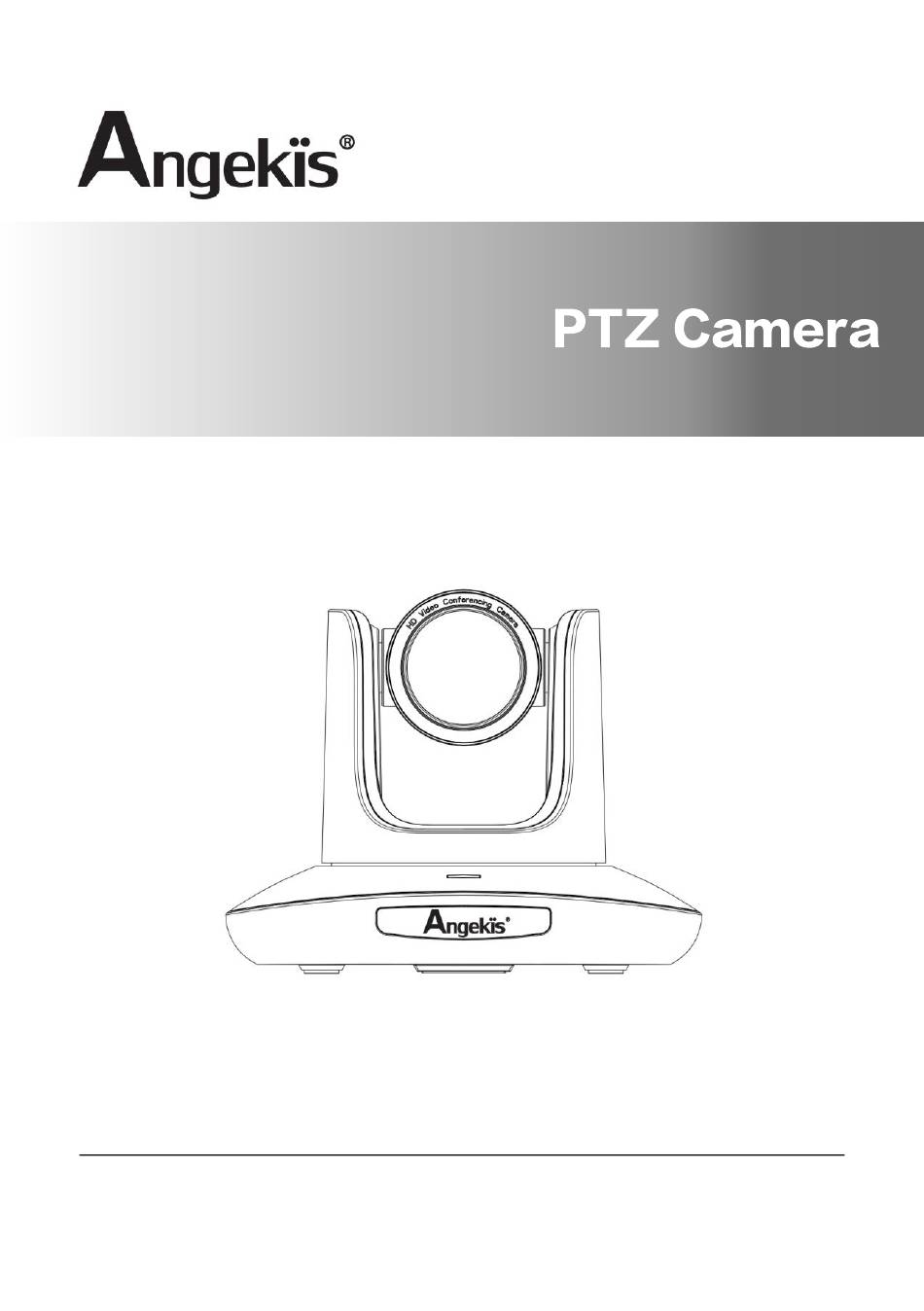

- Page 1 Saber U20 User Manual V1.0 EN Please refer this document before using...
-
Page 2: Table Of Contents
Saber U20 CONTENT ......................... 1 SAFETY GUIDES ......................2 PACKING LIST ........................3 QUICK START........................3 PRODUCT HIGHLIGHTS ....................5 PRODUCT SPEC ......................6 CAMERA INTERFACE ....................7 CAMERA DIMENSION ....................8 IR REMOTE CONTROLLER ...................9 VISCA IN(RS232 PORT) ..................... 11 VISCA PROTOCOL ....................... 12 PELCO-D PROTOCOL ....................19 PELCO-P PROTOCOL ....................20... -
Page 3: Safety Guides
Saber U20 SAFETY GUIDES ● Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. ● The camera power voltage is 12V DC, rated currency is 2A. We suggest you use it with the original power supply adapter supplied by the factory. -
Page 4: Packing List
Saber U20 PACKING LIST Check all below items when open the package Camera ··············································· 1PCS Power Adapter ······································ 1PCS Power Cable ········································· 1PCS Remote Controller ································ 1PCS USB Type-C Cable ································· 1PCS RS232 Cable ········································· 1PCS User Manual ········································· 1PCS QUICK START —... - Page 5 Saber U20 Dial Switch Setting (at the bottom of the camera) Dial Switch (ARM) SW-1 SW-2 Instruction Upgrading mode Debugging mode Undefined Working mode Dial Switch Dial Switch SW-3 SW-4 Instruction SW-5 SW-6 Instruction Reserved Reserved Reserved Reserved Reserved Reserved...
-
Page 6: Product Highlights
Saber U20 PRODUCT HIGHLIGHT ★With the most advanced HD DSP, 1/2.8-inch 2.4 million image sensor. ★High-quality 20x 60-degree wide-angle optical lens, to ensure the smooth and transparent HD images. ★ Independent intellectual property rights of the focus algorithm, fast and accurate focus performance, to ensure that the image remains clear in the process of zooming, focusing process is fast and smooth. -
Page 7: Product Spec
Saber U20 TECHNICAL SPEC ANG2-20FHD-01 Sensor 1/2.8inch high quality, 2.4 MP CMOS Sensor 1920*1080P60/59.94/50/30/29.97/25/24 HDMI 1920*1080I60/59.94/50 1280*720P60/59.94/50/30/29.97/25 Video Format MJPG: 1920*1080P60; 1280*960P60; 1280*720P60; 1024*768P60; 800*600P60; 640*480P30; 320*240P60 Type-C YUY2：640*480P30；320*240P30 Video Interface HDMI, USB Type-C Focal Length 4.9mm~98mm Aperture F1.5~3.0 View Angel 60°(Wide)~3.2°(Tele) -
Page 8: Camera Interface
Saber U20 2D Noise Supported Reduction 3D Noise Supported Reduction Anti-flicker OFF, 50Hz, 60Hz Pan Tilt Flip Supported Mirroring Supported Input Voltage DC 12V / USB 5V Dimension 220mm×190mm×173mm Net Weight 1.47kg(3.2LBS) Working -10℃~50℃ Temperature Working ≤80% Humidity CAMERA INTERFACE 1.Camera Lens... -
Page 9: Camera Dimension
Saber U20 CAMERA DIMENTION(MM) — 8 —... -
Page 10: Ir Remote Controller
Saber U20 IR REMOTE CONTROLLER Power Key Under Normal working mode ， short press Power key to let the camera enter standby mode；Press it again ， the camera will do self-configuration and then go back to HOME position；It will go to preset position if the power on mode has been set. - Page 11 Saber U20 Menu Key OK: to confirm the menu selection Menu：enter/exit menu Back：Back to previous menu F+/F-: Set focus by manual, only valid under manual focus mode. T/W: Set the lens zoom rate Navigating Key: Up/Down/Left/Right Under normal working mode, use navigate key to set the pan tilt, and select values when enter OSD.
-
Page 12: Visca In(Rs232 Port)
Saber U20 VISCA IN(RS232 PORT） Functions IR OUT VISCA IN and DB9 Connection VISCA IN and Mini DIN CameraVISCA IN Windows DB- Camera VISCA IN Mini DIN A(+) A(+) IR OUT IR OUT B(-) B(-) SERIAL PORT CONFIGURATION： Parameter Value... -
Page 13: Visca Protocol
Saber U20 VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message command Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. Error Messages command Note Returned when the command format is different or when a... - Page 14 Saber U20 Command type function command Near (Variable) 8x 01 04 08 3p FF p=0 (Low) to 7 (High) Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position Auto Focus 8x 01 04 38 02 FF...
- Page 15 Saber U20 Command type function command 8x 01 04 3D 02 FF Exposure Compensation ON/OFF 8x 01 04 3D 03 FF CAM_WDR Direct 8x 01 04 D3 pq FF pq: ExpComp Position (0~0x6) 8x 01 04 33 02 FF BackLight On...
- Page 16 Saber U20 Command type function command pp: Video format 1080P60 0x00 1080P50 0x01 1080I60 0x02 1080I50 0x03 1080P30 0x04 1080P25 0x05 720P60 0x06 720P50 0x07 Video System 8x 01 06 35 00 pp FF 720P30 0x08 Set(Factory) 720P25 0x09 1080P5994...
- Page 17 Saber U20 Command type function command Up right 8x 01 06 01 VV WW 02 01 FF Down Left 8x 01 06 01 VV WW 01 02 FF Down Right 8x 01 06 01 VV WW 02 02 FF Stop...
- Page 18 Saber U20 Command type command return note CAM_Contrast Inq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF pq: contrast y0 50 00 FF Full Auto y0 50 03 FF Manual CAM_AE Mode Inq 8x 09 04 39 FF...
- Page 19 Saber U20 VISCA PAN TILT ABSOLUTE POSITION VALUE PAN ANGLE VISCA value TILT ANGLE VISCA value -170 0xF670 0xFE50 -135 0xF868 0x0000 0xFAF0 0x01B0 0xFD78 0x0360 0x0000 0x510 0x0288 0x0510 0x0798 0x0990 VISCA PAN TILT SPEED VALUE Pan(Degree/Second) Tilt(Degree/Second) — 18 —...
-
Page 20: Pelco-D Protocol
Saber U20 PLECO -D PROTOCOL COMMAND LIST Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed... -
Page 21: Pelco-P Protocol
Saber U20 PLECO -P PROTOCOL COMMAND LIST Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0Xa0 Address 0x00 0x08 Tilt Speed 0Xaf Speed Down 0Xa0 Address 0x00 0x10 Tilt Speed 0Xaf Speed Left 0Xa0 Address 0x00 0x04 Tilt Speed... -
Page 22: Osd Menu
Saber U20 OSD MENU 1. Under working mode, press the MENU key on the IR remote controller, to enter the OSD menu as bellow: 2. After entering the main menu, use the navigate UP/DOWN key to select the main menu. Once selected, the main menu will change to blue background, and the right side will show sub-menu options. - Page 23 Saber U20 Shutter speed: 1/30~1/10000, only valid SHUTTER Default: AUTO under MANUAL and SHUTTER mode Iris setting: CLOSE~F1.8, only valid under IRIS Default: AUTO MANUAL and IRIS mode Gain setting: 0dB~30dB, only valid under GAIN Default: AUTO MANUAL mode EXPOSURE...
- Page 24 Saber U20 SPEED BY ZOOM Optional: OFF, ON Default: ON FLIP Flip horizontal Default: OFF HORIZONTAL FLIP VERTICAL Flip vertical Default: OFF PT SPEED Set Pan Tilt speed: 5~24 Default: 18 ZOOM SPEED Set Zoom speed: 1~7 Default: 5 PTZ SETTINGS PRESET FREEZE Optional：OFF, ON...
-
Page 25: Uvc Control
Saber U20 UVC CONTROL 1. Only run the client software after the camera has completed self- configuration (the IR indicator in blue color and will not flash); otherwise may cause black video issue. 2. Make sure the camera is recognized by the PC Device Manager.
