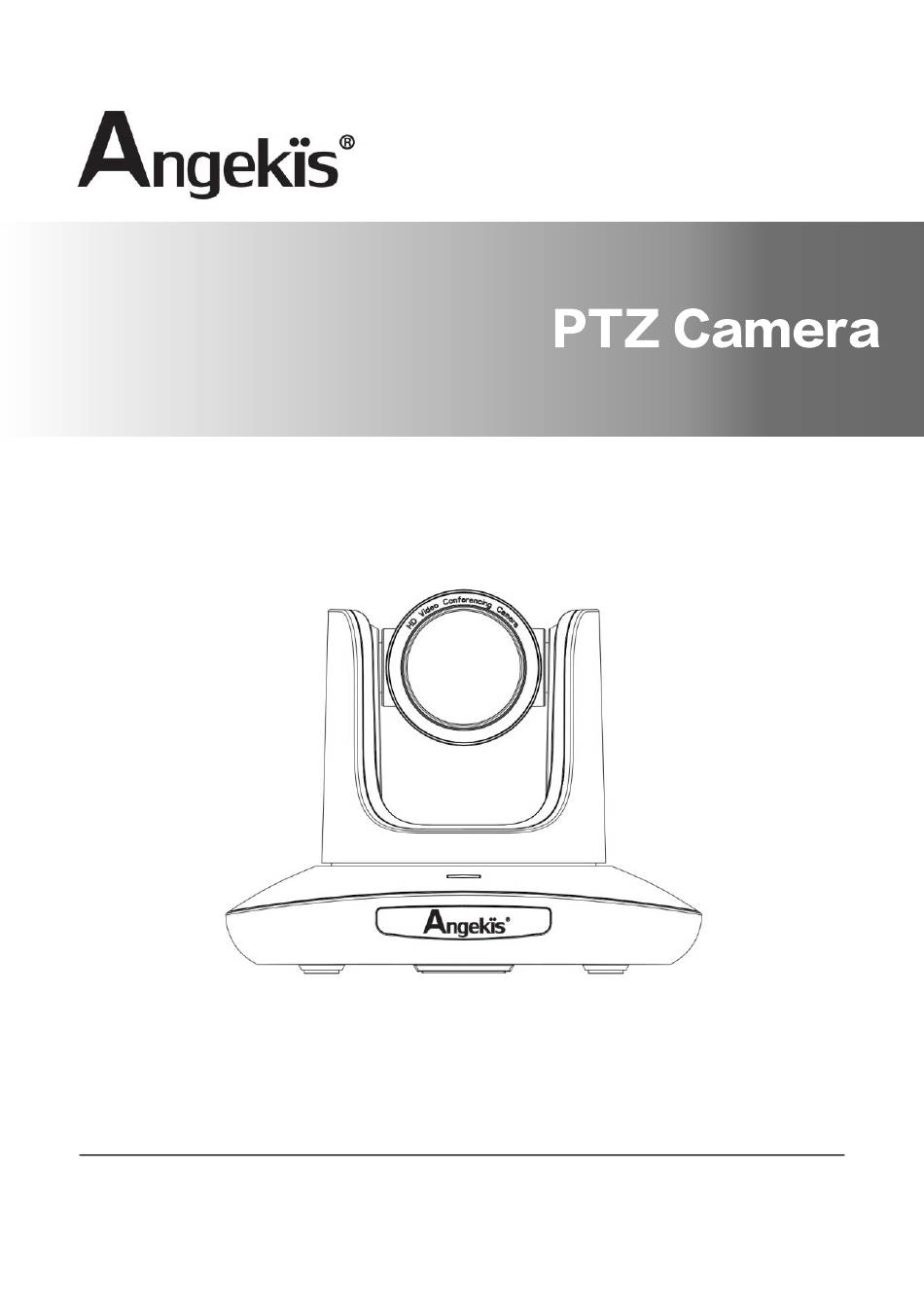

4K60
Saber 4K+
User Manual V1.0 EN
Please refer this document before using

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Saber 4K+ and is the answer not in the manual?

Questions and answers

Related Manuals for Angekis Saber 4K+

Summary of Contents for Angekis Saber 4K+

  • Page 1 4K60 Saber 4K+ User Manual V1.0 EN Please refer this document before using...

  • Page 2: Table Of Contents

    Saber 4K+ CONTENT ........................1 SAFETY GUIDES ......................2 PACKIN LIST ........................ 3 PRODUCT HIGHLIGHTS ................... 5 TECHNICAL SPEC ....................... 6 INTERFACE DESCRIPTION ..................8 CAMERA DIMENSION ....................8 IR REMOTE CONTROLLER ..................9 VISCA IN(RS232 PORT) ..................11 VISCA PROTOCOL ....................13 PELCO-D PROTOCOL .....................

  • Page 3: Safety Guides

    Saber 4K+ SAFETY GUIDES ● Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. ● The camera power voltage is 12V DC, rated currency is 2A. We suggest you use it with the original power supply adapter supplied by the factory.

  • Page 4: Packin List

    Saber 4K+ PACKING LIST Check all below items when open the package Camera ··············································· 1PCS Power Adapter ····································· 1PCS Power Cable ········································· 1PCS Remote Controller ································ 1PCS USB Type-C Cable ································· 1PCS RS232 Cable ········································· 1PCS User Manual ········································· 1PCS QUICK START LAN interface —...
  • Page 5 Saber 4K+ Dial Switch Setting (at the bottom of the camera) Dial Switch (ARM) SW-1 SW-2 Instruction Upgrading mode Debugging mode Undefined Working mode Dial Switch SW-3 SW-4 Instruction Reserved Reserved Reserved Reserved Dial Switch SW-5 SW-6 Instruction Undefined Working mode Undefined Undefined —...

  • Page 6: Product Highlights

    Saber 4K+ PRODUCT HIGHLIGHT ★ Adopting the most advanced image processing DSP, 1/2.8 inch 8.42MP sensor. ★ 4K wide angle optical lens: 12x optical zoom, with 80.5 degree field of view. ★ IP Ultra HD 4K60 video output, while supporting H.264, H.265 encoding. ★...

  • Page 7: Technical Spec

    TECHNICAL SPEC Saber 4K+ ANG2-12UHD-01 Sensor 1/2.8inch high quality、8.42 MP CMOS Sensor 3840*2160P60/59.94/50/30/29.97/25 1920*1080P60/59.94/50/30/29.97/25/24/23.98 HDMI 1920*1080I60/59.94/50 1280*720P60/59.94/50/30/29.97/25 1920*1080P60/59.94/50/30/29.97/25/24/23.98 1920*1080I60/59.94/50 1280*720P60/59.94/50/30/29.97/25 Video Format MJPG, H.264/H265: 3840*2160P30; 1920*1080P60/30; 1280*720P60/30; 1024*576P60/30; 800*448P60/30 USB Type-C NV12: 1920*1080P10; 1280*720P25; 1024*576P30; 800*448P30 YUYV: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30 Main：...
  • Page 8 TECHNICAL SPEC Saber 4K+ HTTP, RTSP, RTMP, Onvif, Visca TCP, Visca UDP, Visca over IP, Protocol Visca Serial, Pelco-P, Pelco-D POE+ Supported Daisy Chain Support RS232 serial daisy chain Minimum Lux 0.1lux Auto / Manual / ATW / Push / Indoor / Outdoor / Color White Balance Temperature Exposure...

  • Page 9: Interface Description

    Saber 4K+ CAMERA INTERFACE 1.Camera Lens 6.Tripod Screw Hole 11.USB Type-C port 2.Camera Base 7.Installation Hole 12.HDMI port 3.IR Receiver Panel 8.RS232 ((IN) port 13.3G-SDI port 4.Power Indicator Light 9.RS232 (OUT) port 14.RJ45 port 5.Dial Switch 10.Line in port 15.DC 12V plug CAMERA DIMENSION（MM）...

  • Page 10: Ir Remote Controller

    Saber 4K+ IR REMOTE CONTROLLER Power Key Under Normal working mode ， short press Power key to let the camera enter standby mode；Press it again ， the camera will do self-configuration and then go back to HOME position；It will go to preset position if the power on mode has been set.
  • Page 11 Saber 4K+ Menu Key OK: to confirm the menu selection Menu：enter/exit menu Back：Back to previous menu F+/F-: Set focus by manual, only valid under manual focus mode. T/W: Set the lens zoom rate Navigating Key: Up/Down/Left/Right Under normal working mode, use navigate key to set the pan tilt, and select values when enter OSD.

  • Page 12: Visca In(Rs232 Port)

    Saber 4K+ VISCA IN（RS232 PORT） V_IN V_OUT V_IN RS485 A(+) IR OUT B(-) VISCA IN and DB9 Connection VISCA IN and Mini DIN Connection CameraVISCA IN Windows DB-9 Camera VISCA IN Mini DIN A(+) A(+) IR OUT IR OUT B(-) B(-) —...
  • Page 13 Saber 4K+ VISCA Network Construction： SERIAL PORT CONFIGURATION： Parameter Value Baud rate 2400/4800/9600/115200 Start bit 1bit Date bit 8bits Stop bit 1bit Check bit None — 12 —...

  • Page 14: Visca Protocol

    Saber 4K+ VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message command Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. Error Messages command Note Returned when the command format is different or when a Syntax Error z0 60 02 FF command with illegal command parameters is accepted.
  • Page 15 Saber 4K+ Command type function command Wide(Variable) 8x 01 04 06 3p FF Enable In separate mode Direct 8x 01 04 46 0p 0q 0r 0s FF Enable In separate mode Stop 8x 01 04 08 00 FF Far(Standard) 8x 01 04 08 02 FF Near(Standard) 8x 01 04 08 03 FF Far (Variable)
  • Page 16 Saber 4K+ Command type function command Iris Priority Automatic Iris Priority 8x 01 04 39 0B FF Exposure mode Bright Mode (Manual Bright 8x 01 04 39 0D FF control) Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF Shutter Setting CAM_Shutter Down...
  • Page 17 Saber 4K+ Command type function command Recall 8x 01 04 3F 02 pp FF 8x 01 04 61 02 FF Image Flip Horizontal CAM_LR_Reverse ON/OFF 8x 01 04 61 03 FF 8x 01 04 66 02 FF Image Flip Vertical CAM_Picture Flip ON/OFF 8x 01 04 66 03 FF...
  • Page 18 Saber 4K+ Command type function command pp: Video format 1080P60 0x00 1080P50 0x01 1080I60 0x02 1080I50 0x03 1080P30 0x04 1080P25 0x05 720P60 0x06 720P50 0x07 Video System 720P30 0x08 8x 01 06 35 00 pp FF Set(Factory) 720P25 0x09 1080P5994 0x0E 1080I5994 0x0F...
  • Page 19 Saber 4K+ Command type function command 8x 01 04 AC 0p 0q 0r 0s 0m Mask set Set mask to: pq.rs.mn.xy 0n 0x 0y FF 8x 01 04 AD 0p 0q 0r 0s 0m Set gateway to : Gateway set 0n 0x 0y FF pq.rs.mn.xy pqrs : Column(x size)
  • Page 20 Saber 4K+ Command type function command 8x 01 06 08 03 FF On/Off 8x 01 06 08 10 FF 8x 01 06 01 VV WW 03 01 FF 8x 01 06 01 VV WW 03 02 FF Down 8x 01 06 01 VV WW 01 03 FF Left Right 8x 01 06 01 VV WW 02 03 FF...
  • Page 21 Saber 4K+ Command type command return note CAM_Focus Pos Inq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position (0~0x01) CAM_2D_Inq 8x 09 04 A5 FF y0 50 03 FF p: 0: off 1: on (0~0x05) CAM_3D_Inq 8x 09 04 53 FF...
  • Page 22 Saber 4K+ Command type command return note CAM_WDR Pos Inq 8x 09 04 D3 FF y0 50 0p FF p: WDR Position CAM_Aperture Inq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain pp: Memory number 8x 09 04 3F pp CAM_Preset Exist Inq y0 50 0q FF...
  • Page 23 Saber 4K+ Command type command return note y0 50 ab cd mn pq rs tu vw CAM_Version Inq 8x 09 00 02 FF Video System 8x 09 06 23 FF y0 50 pp FF pp: Video format Inq(Factory) 8x 09 04 24 72 Video System Inq(Sony) y0 50 0p 0p FF pp: Video format...
  • Page 24 Saber 4K+ Command type command return note Mode sel:0xpp 8x 09 04 C3 02 Sub Encode Mode Inq y0 50 pp FF 0x00: h264 0x01: h265 8x 09 04 C3 03 Frame rate:0xpp Sub Frame Rate Inq y0 50 pp FF (15~60) 8x 09 04 C3 04 IDR Setting:0xpp...
  • Page 25 Saber 4K+ — 24 —...

  • Page 26: Pelco-D Protocol

    Saber 4K+ PELCO-D PROTOCOL COMMAND LIST Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address...

  • Page 27: Pelco-P Protocol

    Saber 4K+ PELCO-P PROTOCOL COMMAND LIST Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 Tilt 0Xa0 Address 0x00 0x08 Pan Speed 0Xaf Speed Tilt Down 0Xa0 Address 0x00 0x10 Pan Speed 0Xaf Speed Tilt Left 0Xa0 Address 0x00 0x04 Pan Speed 0Xaf Speed...
  • Page 28 Saber 4K+ Query Zoom Value Value 0xA0 Address 0x00 0x5D 0xAF Position High Byte Low Byte Response — 27 —...

  • Page 29: Osd Menu

    Saber 4K+ OSD MENU 1. Under working mode, press the MENU key on the IR remote controller, to enter the OSD menu as bellow: 2. After entering the main menu, use the navigate UP/DOWN key to select the main menu. Once selected, the main menu will change to blue background, and the right side will show sub-menu options.
  • Page 30 Saber 4K+ Iris setting: CLOSE~F1.8, only valid under IRIS Default: AUTO MANUAL and IRIS mode Gain setting: 0dB~30dB, only valid under GAIN Default: AUTO MANUAL mode EXPOSURE Bright setting: 0~27, only valid under Default: AUTO BRIGHT BRIGHT priority mode. BRIGHT 0~15 Default: 8 OFF/ON...
  • Page 31 Saber 4K+ PRESET PT Preset head speed:2~24 Default: 15 SPEED PRESET ZOOM Preset zoom speed:1~7 Default: 5 SPEED PRESET SAVE Optional: OFF, ON Default: OFF AE&AW SIZE 2160P, 1080P, 1080I, 720P VIDEO FORMAT FRAME RARE 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 DHCP OFF/ON 192.168.001.188 (Example)
  • Page 32 Saber 4K+ Set IP Address in Menu In order to facilitate customer debugging, the camera has the support menu to set IP address. The specific methods are as follows: 1.Press "MENU" to open the menu interface, select "network parameters" in the menu to call up the IP setting interface: 2.Right click the remote control to enter the IP setting interface, and select the parameters to be set by using the navigation up and down keys, and then select the...

  • Page 33: Uvc Control

    Saber 4K+ UVC CONTROL 1. Only run the client’s software after the camera has completed self-configuration (the IR indicator in blue color and will not flash); otherwise may cause black screen issue. 2. Make sure the camera is recognized by the PC Device Manager. 3.

  • Page 34: Web Setting

    Saber 4K+ WEB SETTING It is not necessary to install additional video player plug-in to preview the local screen on the web interface. The web interface supports Google Chrome, Firefox, IE, Safari, Opera, 360, QQ and other browsers, adaptability is very good. 1.
  • Page 35 Saber 4K+ select the volume switch and volume level, as well as the full-size view and picture-in-picture mode. 3. Parameter Setting Click “Setting” to enter the parameter setting interface as following: “Video Encode”: can set image encode mode, main stream and sub stream resolution/bit rate/frame rate, bit rate control way, and I frame interval etc.
  • Page 36 Saber 4K+ “Video Transmission”: RTMP settings and SRT settings can be made, as shown in the following figure： "Audio Settings": the audio enable can be off / on, the encoding mode can be selected, and the parameters such as sampling rate and bit rate can be adjusted, as shown in the following figure: “Image Parameter”...
  • Page 37 Saber 4K+ Focus including focus mode, default focal distance, digital zoom etc. Exposure includes exposure mode, shutter speed, gain, iris, brightness, and anti-flicker. White Balance includes white balance mode, red gain, blue gain. — 36 —...
  • Page 38 Saber 4K+ Image includes mirror, flip, backlight compensation, Gamma, WDR(wide dynamic range). Image Quality includes brightness, sharpness, contrast, saturation. Noise reduction includes 2D/3D reduction. There is on/off option for 2D, and off/auto/1~4 six options. Digital Output option sets the resolution of the camera's HDMI and SDI images.
  • Page 39 Saber 4K+ As following picture, click “clicking to upload file” icon, open dialog box, select to open the file, and click “upgrade” to start. DO NOT power off or do other operation when upgrading, reboot the camera after 2 min when upgrade finished. Then login web end to select “reset all”...
  • Page 40 Saber 4K+ Input the account firstly, then input same password twice, click set to finish Please remember account and password, otherwise you may be not able to login. “System Time”: Set the time zone and NTP enable. — 39 —...

  • Page 41: View Rtsp Video Via Vlc

    Saber 4K+ VIEW RTSP VIDEO VIA VLC Default RTSP main streaming address: rtsp://192.168.1.188/stream/main Default RTSP sub streaming address: rtsp://192.168.1.188/stream/sub Default RTMP main streaming address: rtmp://192.168.1.188:1935/app/rtmpstream0 Default RTMP sub streaming address: rtmp://192.168.1.188:1935/app/rtmpstream1 1. Run VLC Media Player. 2. Media->network stream, to enter into “open media” interface. 3.

  • Page 42: Visca Over Ip

    Saber 4K+ VISCA over IP： VISCA over IP means VISCA protocol transmit via IP, to reduce RS232/RS485 cable layout (the controller must support IP communication function) Communication port spec: Control port: RJ45 Gigabit LAN  IP protocol: IPv4  Transmit protocol: UDP ...
  • Page 43 Saber 4K+ Note: LAN output way is big-endian, LSB is in the front. Payload type: Data definition as following: Value Value Name Value (Byte 0) (Byte1) VISCA command 0x01 0x00 Stores the VISCA command. VISCA inquiry 0x01 0x10 Stores the VISCA inquiry. Stores the reply for the VISCA command and VISCA reply 0x01...
  • Page 44 Saber 4K+ equipment will save sequence number of each command, and return the sequence number to the controller. Payload According to Payload type, the following data will be saved. VISCA command  Save VISCA command packet VISCA inquiry  Save VISCA message packet VISCA reply ...
  • Page 45 Saber 4K+ detect and confirm if the peripheral equipment receive the commands from return message’s lag time. If controller shows it is overtime, it is regarded as error transmission. If controller shows it is overtime, resend the commands to check peripheral’s status, resent command sequence number is same as last command, the following chart list the received message and status after resending the commands.
  • Page 46 Saber 4K+ Sequence chart as following Sequence chart when command lost Sequence chart when returned message lost Note: Do not set IP address, sub net mask, gateway parameter in VISCA over IP command, otherwise, it will cause network breaks off. Due to change these parameter, network will be in off stat —...
