Overview

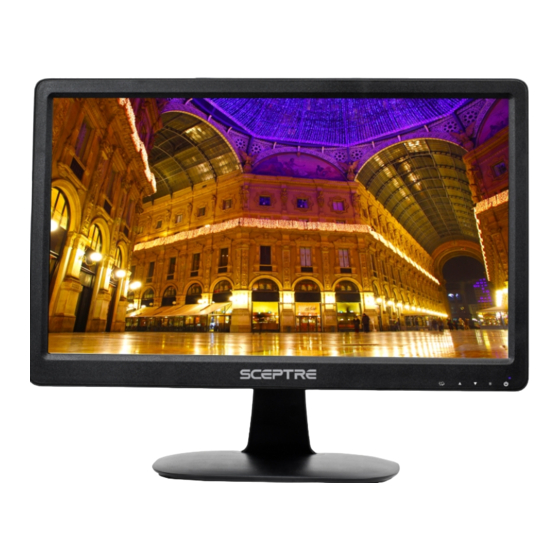

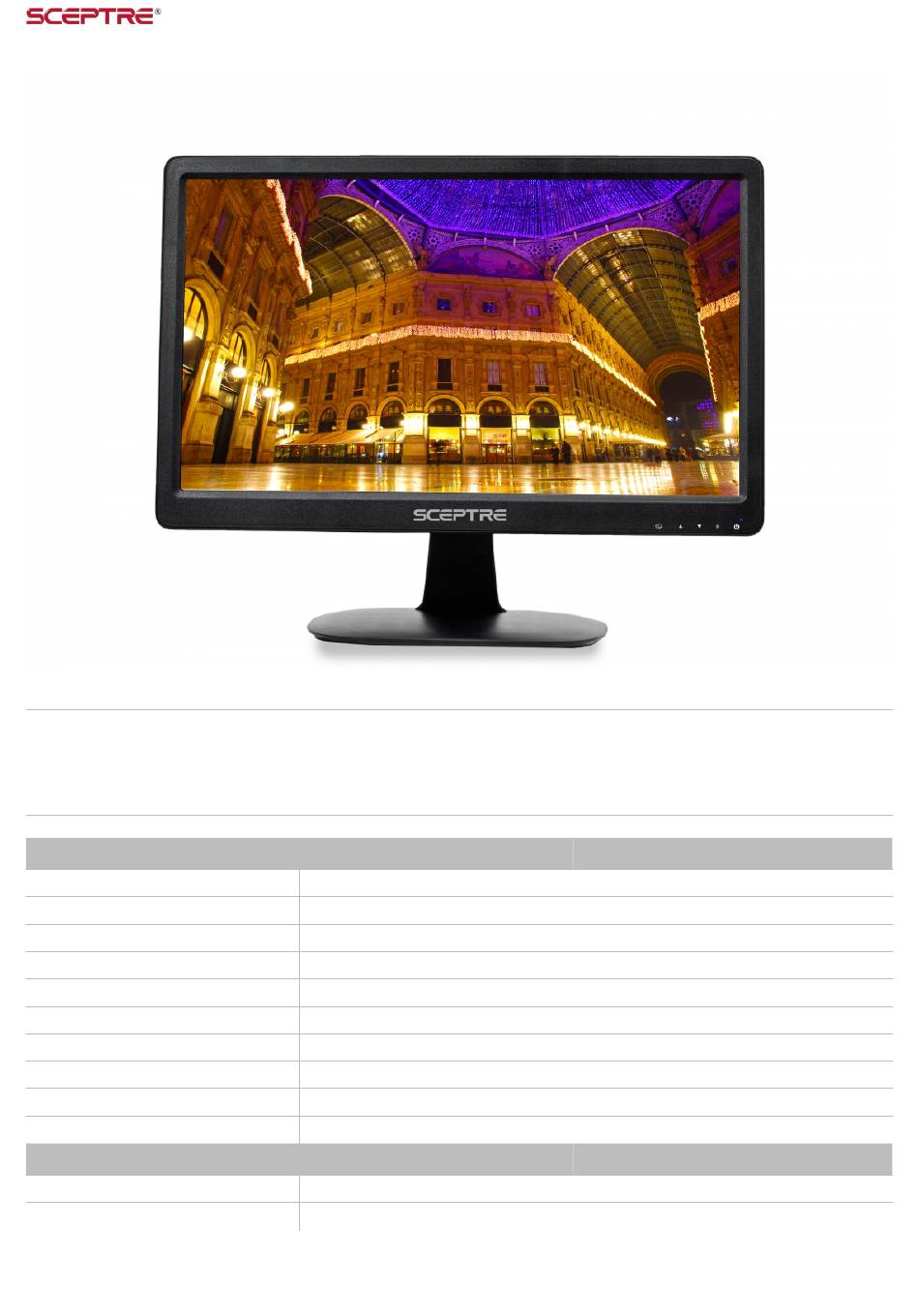

Take in all the clarity and stunning color of a monitor all on a compact and thin 16" screen. With HD resolution, HDMI, and VGA, the
E165W-1600HC provides all of superior features that are usually reserved for larger monitors. HDMI not only delivers superior digital
video and audio, but also connects both to the Monitor with only one cable.
Display
Active Screen Size
Aspect Ratio
Brightness
Contrast Ratio
Display Colors
Dynamic Contrast Ratio
Lamp Life
Response Time
True Resolution
Viewing Angle
Features
On Screen Display Control (OSD)
OSD Language
E165W-1600HC
16" (15.6" Diagonal corner to corner)
16:9
220 cd/m2
500 : 1
262k
5,000 : 1
50,000+ Hours
8 ms (G-to-G)
1366 x 768
90˚ (Horizontal) / 50˚ (Vertical)
Picture, Display, Advance Color, Source, Other
English (Default), French, Spanish
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sceptre E165W-1600HC
Summary of Contents for Sceptre E165W-1600HC
- Page 1 Take in all the clarity and stunning color of a monitor all on a compact and thin 16" screen. With HD resolution, HDMI, and VGA, the E165W-1600HC provides all of superior features that are usually reserved for larger monitors. HDMI not only delivers superior digital video and audio, but also connects both to the Monitor with only one cable.
- Page 2 Auto Dynamic Contrast Enhancement Wall Mountable Neck & Base Detachable Energy Guide Outputs Headphone Output 3.5mm Mini-Jack for External Speaker / Headphone Inputs HDMI 1 x HDMI 1 x VGA Signal Compatibility Digital Signal Frequency 30 – 80 kHz (Horizontal) / 60 – 75 kHz (Vertical) HDMI Input Signal Support 1080/60p, 1080/60i, 720p, 480p, 480i VGA Input Signal Support...
- Page 3 Limited Parts and Labor One Year...
- Page 4 Windows 10 Customer Service 30 years of Experience Sceptre monitors are fully Our customer service For over 30 years, Sceptre Inc. has compatible with Windows 10, the representatives are, and have maintained its winning formula of most recent operating system...
-
Page 5: Safety Instructions
- 1 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 6: Safety Instructions
No naked flame sources, such as lighted candles, should be placed on the ap paratus. 10. Operating environment: temperature: 5° C~35° C, Humidity: 10% to 90% non- condensing, altitude: 0~2,000 m. - 2 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 7: Important Information
IMPORTANT INFORMATION - 3 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 8: Important Information
The house icon identifies that this product is for indoor use. The AC adapter (external power supply) of this equipment is compliant with DoE (Department of Energy) Level VI standard for external power supply efficiency. - 4 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 9: Safety Instructions
If you are not Do not place the display on cloth or sure of the type of power supplied to other materials that may be located - 5 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... - Page 10 5° C ~ 35° C, Humidity: 10% to 90% power cord and contact your dealer non-condensing, Altitude: 0~2,000 m. immediately. Do not try to repair the product yourself. - 6 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual...
- Page 11 To ensure safety and many years of trouble free operation of your LED monitor, please read the manual carefully before making any adjustments, and keep them in a safe place for future reference. We hope you enjoy your new SCEPTRE monitor.
-
Page 12: Opening The Package
Opening the Package The SCEPTRE display is packaged in a carton. The size and weight of the product might be too heavy for 1 person to handle. In the event of that happening; it is recommended that the display package must be handled by a minimum of 2 or more persons. -
Page 13: Attaching The Base
Make sure the wall is structurally safe for the weight of the display Make sure the wall mount kit is compatible with the display Read and follow all instructions provided by the wall mounting kit. Securely install all screws and connections. - 9 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 14: Removing The Base
To remove the stand, lay the display with the screen portion facing down. Unscrew the 2 screws at the bottom of the base and remove the base. Pry upwards at the indicated point to open the cover. - 10 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... - Page 15 Unscrew the 2 screws that were covered up. Unscrew last 4 screws and remove the hinge and you are done. - 11 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual...
-
Page 16: Table Of Contents
How do I clean the LED Monitor? ..............28 Specification ....................29 LIMITED PRODUCT WARRANTY ..............30 Disclaimer, Trademarks, Icons & Copyright Information ........ 32 FCC Compliance Statement ................33 - 12 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 17: Identifying Front And Rear Panel
5mm. Please Note: The 5mm length of screw refers to how deep the screw can go inside the mounting holes. When you’re buying screws, you should add the original 5mm to the thickness of your mounting plate in order to get the total screw length. - 13 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 18: Rear Control Buttons
– This button switches between all the different inputs of the display. When the OSD is active, this button acts as the EXIT button and exits out of the option or OSD. – This button turns the display on or off. - 14 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 19: Rear View Connections
This port can only be used when you have a HDMI cable plugged into the monitor. WARNING: This monitor is not equipped with built in speakers. - 15 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 20: Connections
3. Turn on the power of both the E165 LED MONITOR and the computer. Please Note: Make sure to set audio output from your computer to PCM output. - 16 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 21: If You Have Vga Connection On Your Video Card
The PC’s clearest picture is ran with 1366 x768 at 60 Hz. If the VGA port receives no signal for over 1 hour, the monitor will auto shut- off. - 17 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 22: On Screen Display (Osd) Menu
▲ ▼ buttons to adjust each option’s select the option you want to adjust. Use the values. When you want to exit press the button. - 18 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 23: Picture
DCR – This option automatically adjusts the contrast for you depending on the graphics displayed at the time. PRESET – This option lets the user select pre-calibrated options of brightness, contrast, and backlight. - 19 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 24: Display
Always use auto adjust first to adjust the image. AUTO COLOR & AUTO ADJUST are only available with a VGA connection. The option will be disabled if you are using HDMI. - 20 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 25: Advance Color
COLOR – This option will adjust the color intensity of a picture being show on the monitor. BLUE LIGHT SHIFT – This option will adjust the level of blue light on the display. - 21 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 26: Source
HDMI – This option selects HDMI as the video source of the monitor. VGA – This option selects VGA as the video source of the monitor. - 22 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 27: Other
OSD menu. RESET – This option reset all settings under the OSD. INFORMATION – This option shows what source the monitor is currently on and what resolution it is displaying. - 23 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 28: Supported Pc (Vga) Resolution
1080p (scaled) *Once a mode is optimized, there is no need to make any further adjustment as long as the VGA card remains unchanged. **Specifications are subject to change without notice. - 24 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 29: Troubleshooting
Please remember to make sure your refresh rate should be at 60Hz. I CAN’T OPEN THE You need to have a valid video signal going through the monitor before you can turn on the OSD. - 25 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... - Page 30 The monitor does not have built in speakers. You will need COMING FROM THE to add your own speakers to the computer. MONITOR I PLUGGED SPEAKERS INTO Plug the speakers directly to your computer. THE MONITOR AND THERE’S NO SOUND - 26 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual...
- Page 31 In there you can change the size of the words by changing from the option DEFAULT SCALE to LARGE SCALE. Click on APPLY to finalize your selection. Once you have finished rebooting, the computer is ready for use. - 27 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual...
-
Page 32: How Do I Clean The Led Monitor
Wipe the display with a dry micro-fiber cloth or 100% cotton cloth afterwards. - 28 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 33: Specification
Wall Mount Hole Pattern included) Features VGA, HDMI (HDCP supported), AUDIO OUT FCC, cTUVus, RoHS, MS WHQL, ISTA 3A Compliance V7.0 Energy Star *Specifications are subject to change without notice. - 29 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual... -
Page 34: Limited Product Warranty
(SCEPTRE reserves the right to determine “wear and tear” on any and all products); unsatisfactory visual or audio performance not caused by a manufacturing defect;... - Page 35 Dead Pixel Policy SCEPTRE sets limit on the LCD at 3 dead pixels in a cluster adjacent to each other, or 5 dead pixels in a combination of color and brightness. Any number of dead or bad pixels under the limit is considered to be within normal performance specification of the LCD and is not considered defective.
-
Page 36: Disclaimer, Trademarks, Icons & Copyright Information
SCEPTRE is a trademark or registered trademark of Sceptre Group. Sceptre, Inc. shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 37: Fcc Compliance Statement
European Notice Products with the CE marking comply with both the EMC Directive (89/336/EEC), (93/68/EEC) and the Low Voltage Directive (72/23/EEC) issued by the Commission of the European Community. - 33 - www.SCEPTRE.com SCEPTRE E165 HD Display User Manual...
