MAXIGLOBAL MODSECUR MT 10 User Manual

Hide thumbs Also See for MODSECUR MT 10:
Table of Contents

Advertisement

Quick Links

Download this manual
MODSECUR MT 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MODSECUR MT 10 and is the answer not in the manual?

Questions and answers

Related Manuals for MAXIGLOBAL MODSECUR MT 10

Summary of Contents for MAXIGLOBAL MODSECUR MT 10

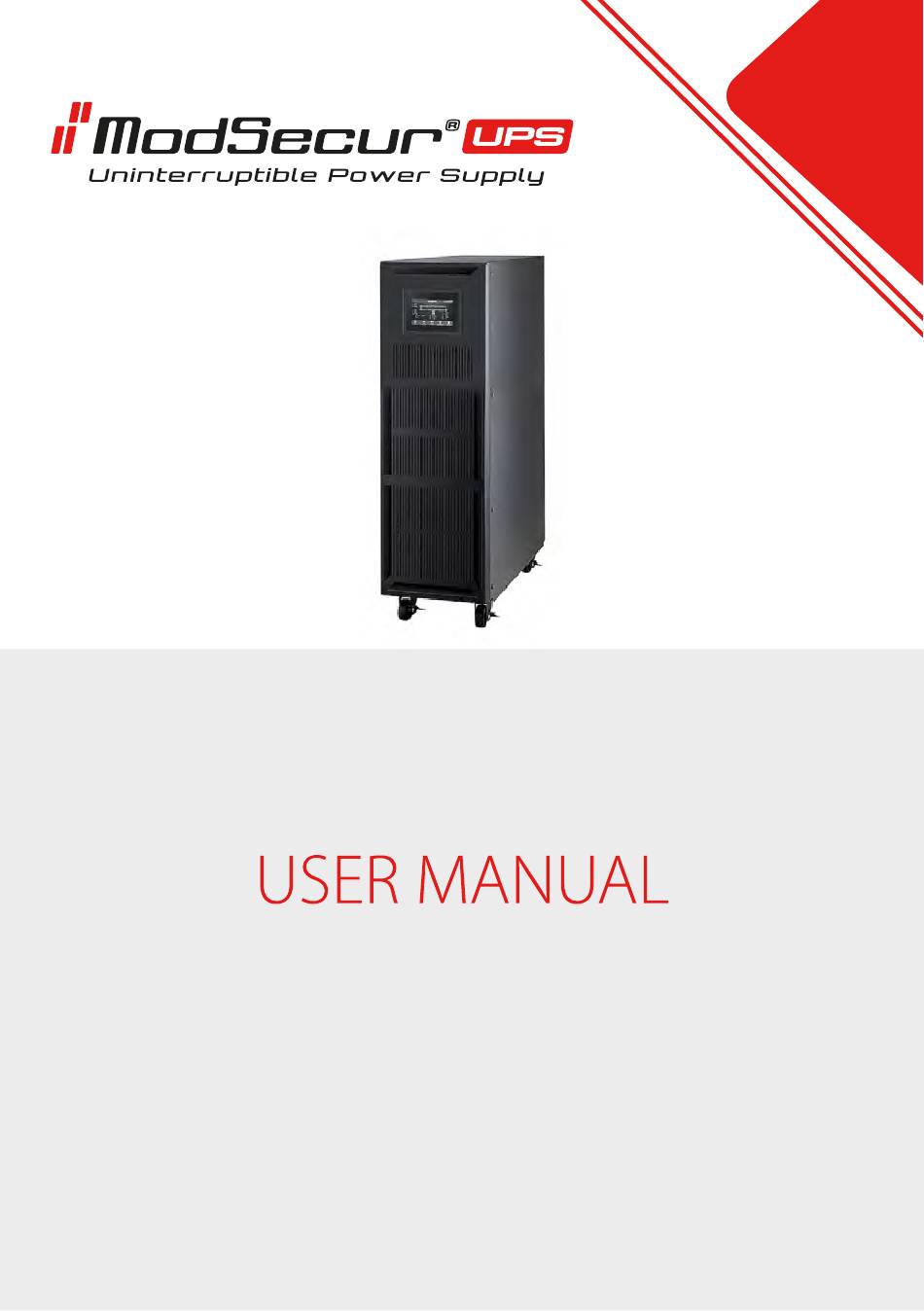

  • Page 1 MODSECUR MT 10...

  • Page 3: Table Of Contents

    Table of contents 1. Safety rules.................................1 2. Transport, unpacking the UPS........................3 3. Appearance and connection........................3 3.1. UPS rear panel..............................3 3.2. Connection of the remote REPO switch....................4 3.3. Connecting communication to the External Service Bypass EMBS...........4 3.4. Connection of communication options....................4 3.5.

  • Page 4: Safety Rules

    1. Safety rules This manual contains information on the safe use of the UPS. Before unpacking and installing the power supply, please read it carefully and follow its recommendations. FULFILLED STANDARDS - EXECUTION EN 62040-3: Uninterruptible Power Systems (UPS): Methods for determining the properties and test requirements.
  • Page 5 - Keep these operating instructions! The manual contains important instructions on the use of the UPS that should be followed during installation and use of the UPS device and batteries. - Condensation may occur if the power supply is cold and is brought into a warm place. Therefore, you should wait at least 2 hours until it starts up.

  • Page 6: Transport, Unpacking The Ups

    2. Transport, unpacking the UPS Check carefully that the carton and the contents are not damaged. If any damage is found, immediately inform the shipping company and the power supply distributor. Do not throw away the UPS packaging. 1. If no damage is found, carefully open the carton. 2.

  • Page 7: Connection Of The Remote Repo Switch

    3.2. Connection of the remote REPO switch The UPS is equipped with an EPO port for connecting the Remote Emergency Power O (REPO) switch. The EPO port is con gured as NC (normally closed), the activation of EPO occurs by breaking the connection between Pin 1 and Pin 2 (removal of the jumper). 3.3.

  • Page 8: Power Connection - Con Guration 3:1

    3.6. Power connection - con guration 3:1 NOTE: UPS operation con guration may only be changed by an authorized service! OUTPUT INPUT INPUT BYPASS Power supply terminal for con guration 3: 1 phase 4. LCD display operation The UPS is equipped with a color LCD touch panel. Below is a diagram showing the possibilities and the location of the various information available in the display menu.

  • Page 9: Main Display Window

    4.1. Main display window The main menu of the display shows the current operating mode of the UPS (energy ow through individual functional blocks) and the parameters of power supply, batteries and UPS outputs. To return to the main window from anywhere else, use the icon 4.2.
  • Page 10 Select the UPS ON / OFF command to enable or disable the UPS inverter. The display will switch to the following view asking you to con rm or cancel your selection. Click "YES" to turn on / o the UPS. The display will return to the main window view. Click "BACK"...
  • Page 11 Turn on battery test Turn o battery test To silence the audible alarm, select the "MUTE ALL" command and con rm your selection with the "YES" key. To turn mute o , choose "Back" or with the command "No". The mute icon appears on the display in the main window in the upper left corner Mute alarm Cancel mute alarm The control menu also allows you to switch the battery charger on or o .

  • Page 12: Measure Window

    4.3. Measure window The screens below show a 3: 3 con guration. For a 3: 1 con guration, only 1 Output Phase and Bypass are displayed. In the measurements tab there are three windows between which you can switch with the arrow keys up / down.

  • Page 13: Ups Con Guration Window (Setting)

    The third tab o ers measurements of input and output currents, power factors, and measure- ments of active and apparent input power as well as the load percentage. 4.4. UPS con guration window (Setting)
  • Page 14 In the con guration tab there are two setting levels to choose from. Basic mode (GENERAL) for the user allows setting • Time • Dates • Language selection • Power sources network / generator • Service telephone number • Contact person •...
  • Page 15 In the service mode, it is possible to con gure the electrical parameters: Settings • Voltage, frequency • Working mode • Voltage tolerance ranges etc. Battery parameters: • Warning levels for high and low battery voltage • Cut-o voltage • Capacity and number of battery chains etc. Other detailed settings are available exclusions for service technicians.

  • Page 16: Information Window

    4.5. Information window In the information tab There is access to all con gured parameters of the UPS, information about the software version, serial number, etc. In the user mode, it is only possible to view the parameters without the possibility of changing them.

  • Page 17: Alarm Window

    4.6. Alarm window In the alarms tab current existing alarms and warnings are shown. Sample battery discon- nected alarm below: 5. Audible alarms and event codes 5.1. Audible alarms Description Alarm The possibility of mute Bypass mode 1x/2 minutes Battery mode 1x/4 seconds Damage continuous...

  • Page 18: Warning Codes

    5.2. Warning codes Code Error Batteries not connected N wire missing Incorrect phase sequence of the recti er power supply Incorrect phase sequence of the bypass supply Battery overcharging Low battery voltage Overload Fan failure Active EPO Overheating Charger failure Di erent recti er feed lines in a parallel system Various bypass feed lines in a parallel system Bypass mode lock after 3 times overload for 30 minutes...

  • Page 19: Ups Operations

    6. UPS operations 6.1. Turn on the UPS from the mains 1. Turn on the output disconnect switch on the rear panel of the UPS.. 2. Turn on the battery disconnector located near the battery cabinet in the case of external batteries to the ON position.

  • Page 20: Turn On The Ups From The Battery

    6.3. Turn on the UPS from the battery 1. Turn on the output disconnect switch on the rear panel of the UPS. 2. Turn on the battery disconnector located near the battery cabinet in the case of external batteries to the ON position. 3.

  • Page 21: Installing The Software

    6.6. Installing the software To take full advantage of the UPS, please install the provided ViewPower communication software. During the installation, follow the instructions on the computer screen. You must restart your computer after the installation process is complete. Restarting the computer will automatically launch ViewPower, as shown by the ViewPower icon in the Windows system tray.
