Uninterruptible Power Supply
QUICK START GUIDE
MB Basic

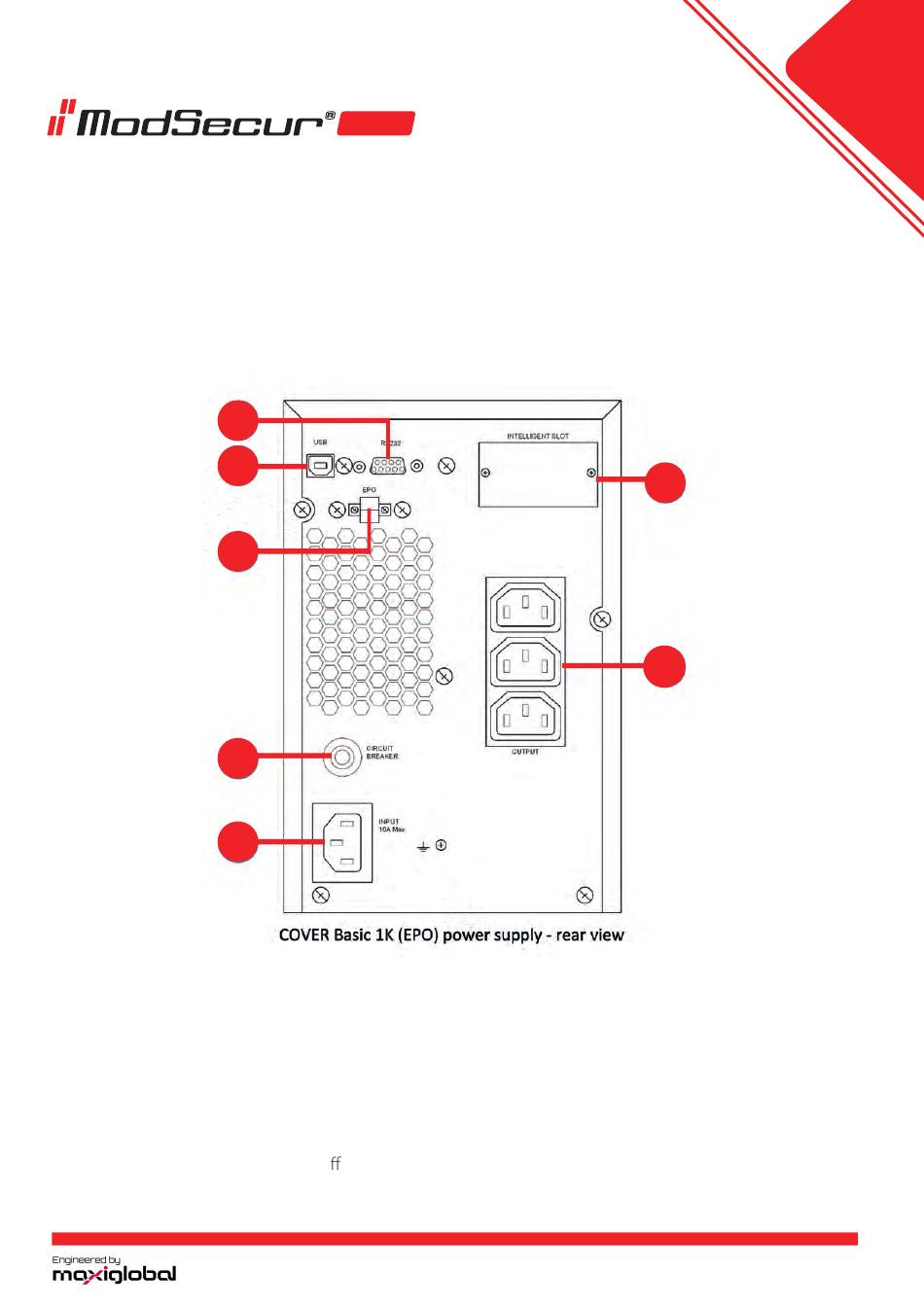

Appearance and connection
1
Power socket.
2
UPS power circuit fuse.
3
USB communication port.
4
RS-232 communication port.
5
Communication port slot (SNMP).
7
Output outlets.
8
Remote Emergency power o (EPO) input.
UPS
4
3
8
2
1
5
7
MODSECUR UPS | 1
01
Advertisement
Table of Contents
Related Manuals for MAXIGLOBAL ModSecur MB Basic
Summary of Contents for MAXIGLOBAL ModSecur MB Basic
- Page 1 Uninterruptible Power Supply QUICK START GUIDE MB Basic Appearance and connection Power socket. UPS power circuit fuse. USB communication port. RS-232 communication port. Communication port slot (SNMP). Output outlets. Remote Emergency power o (EPO) input. MODSECUR UPS | 1...
- Page 2 QUICK START GUIDE MB Basic EPO connector - emergency stop switch against re To the connector marked EPO connect the emergency switch against re. The standard con guration of the EPO is an NC (normally closed) type connector, i.e. for the correct opera- tion of the UPS it is necessary to leave the jumper in the connector or connect a circuit breaker ensuring short circuit.
-
Page 3: Lcd Panel
Displays an error or warning code. Output information Displays the voltage or frequency parameters and the battery voltage. Vac: output voltage, Hz: output frequency, Vdc: battery voltage Load information Indicates load level 0-24%, 25-49%, 50-74% and 75-100%. FOR MORE INFORMATION: www.maxiglobal.pt MODSECUR UPS | 3... - Page 4 QUICK START GUIDE MB Basic LCD Panel Function Indicates an overload condition. Indicates a short circuit condition at the device output. Information on programmable outputs Indicates whether a programmable socket group is con gured. Information about the operating mode Indicates that the UPS is connected to the 230V mains. Indicates the UPS is running on battery.
- Page 5 QUICK START GUIDE MB Basic LCD Panel Function Battery information Indicates 0-24%, 25-49%, 50-74%, and 75-100% charge level. Indicates a defective battery condition. Indicates a low battery condition. Information about power supply parameters and battery voltage Displays input voltage, frequency, and battery voltage. Vac: 230V mains voltage, Vdc: battery voltage, Hz: mains frequency UPS settings menu Use in the UPS con guration menu is possible when the...
- Page 6 QUICK START GUIDE MB Basic Display state Settings 01 - Setting the output voltage value 200: Indicates 200Vac output voltage 208: Indicates 208Vac output voltage 220: Indicates 220Vac output voltage 230: indicates 230Vac output voltage (default) 240: Indicates 240Vac output voltage 02 –...
- Page 7 QUICK START GUIDE MB Basic Display state Settings 06 – Bypass availability while the inverter is turned o Bypass availability setting when the UPS has the inverter turned o (UPS in Stand By mode). EAW: Bypass available DIS: Bypass unavailable (default) 07 –...
-
Page 8: Operating Mode
QUICK START GUIDE MB Basic Operating mode Description LCD Mode If the supply voltage is within tolerance, the UPS supplies the loads with clean and stable voltage Normal mode (On Line) with a sinusoidal shape. In this mode, the batteries are charged. - Page 9 QUICK START GUIDE MB Basic Error code Icon Error Code Error Code Icon Short circuit on the inverter BUS start error High battery voltage High BUS voltage Low battery voltage BUS low voltage High temperature Inverter start error Overload Inverter voltage high Charger damaged Inverter voltage is low UPS warnings and audible alarms...
-
Page 10: Battery Test
QUICK START GUIDE MB Basic UPS Support Turn on the UPS To turn on the UPS, press and hold the ON / Mute button on the UPS display for 2 seconds. Warning! In order to obtain the maximum duration of autonomy, the batteries should be charged at least 10 hours after the rst use. -
Page 11: Display Indication
QUICK START GUIDE MB Basic LCD Display letter abbreviations Meaning Shortcut Display indication Enabled Disabled Escape Voltage too high (High loss) Voltage too low (Low loss) Battery Charger current Boost voltage Float voltage Converter Turn on Temperature Charger Bypass frequency unstable Error EEPROM Fan error Battery replacement...
