INSTALLATION GUIDE
GB
SEALED PELLET STOVE

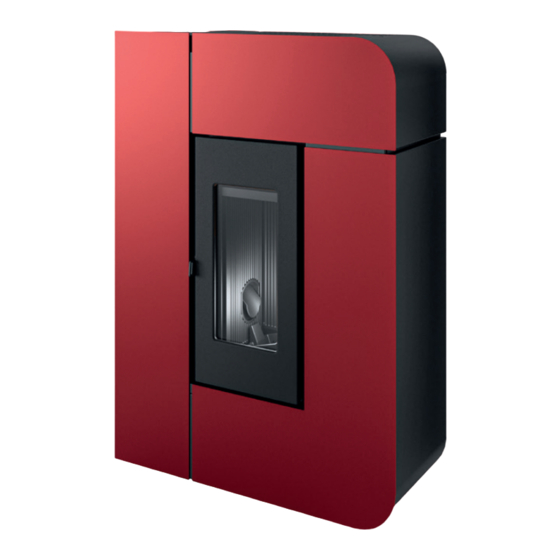

ALEA AIR 7 S1
Instructions in English

Advertisement

Table of Contents
loading

Related Manuals for MCZ ALEA AIR 7 S1

Summary of Contents for MCZ ALEA AIR 7 S1

  • Page 1 INSTALLATION GUIDE SEALED PELLET STOVE ALEA AIR 7 S1 Instructions in English...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ....................II INTRODUCTION ......................1 1-WARNINGS AND WARRANTY CONDITIONS ..............2 2-INSTALLATION ......................9 3-DRAWINGS AND TECHNICAL SPECIFICATIONS ............18 4-UNPACKING ......................21 5- SMOKE OUTLET .....................23 6-INSTALLATION AND ASSEMBLY ................25 7-OPENING THE DOORS .....................29 8-CONNECTION TO ADDITIONAL DEVICES ..............30 9-LOADING THE PELLETS ...................31 10-ELECTRICAL CONNECTION ..................32 11-FIRST START-UP ....................33...

  • Page 3: Introduction

    No part of this manual may be translated into other languages, adapted and/or reproduced, even in part, in other mechanical and/or electronic form or media, for photocopies, recordings or other, without the prior written authorisation of MCZ Group Spa. The company reserves the right to make changes to the product at any time without prior notice. The owner company reserves its rights according to law.

  • Page 4: 1-Warnings And Warranty Conditions

    1-WARNINGS AND WARRANTY CONDITIONS SAFETY PRECAUTIONS • Installation, electrical connection, operating check and maintenance must only be carried out by authorised and qualified personnel. • Install the product in accordance with all local and national legislation and regulations in force in the region or state. • Only use the fuel recommended by the manufacturer.
  • Page 5 1-WARNINGS AND WARRANTY CONDITIONS • Do not dry laundry on the product. Any drying racks or the like must be kept at a safe distance from the product. Fire hazard. • All liability for improper use of the product is entirely borne by the user and relieves the manufacturer of any civil and criminal liability.
  • Page 6 1-WARNINGS AND WARRANTY CONDITIONS exposed to weathering. • It is recommended not to remove the feet that support the product in order to ensure adequate insulation, especially if the flooring is made of flammable materials. • In the event of a malfunction of the ignition system, do not force it on by using flammable materials.
  • Page 7 1-WARNINGS AND WARRANTY CONDITIONS INFORMATION: Please contact the retailer or qualified personnel authorised by the company to resolve a problem. • Only use the fuel specified by the manufacturer. • When the product is switched on for the first time, it is normal for it to emit smoke due to the paint heating up for the first time. Therefore make sure the room it is installed in is well-ventilated.
  • Page 8 1-WARNINGS AND WARRANTY CONDITIONS and therefore the product is used correctly. Replacement of the entire system or repair of one of its components does not extend the warranty period, and the original expiry date remains unchanged. The warranty covers the replacement or free repair of parts recognised as being faulty at source due to manufacturing defects. In the event of a fault, to benefit from the warranty, the customer must keep the warranty certificate and provide it along with the document given at the time of purchase to the Technical Service Centre.
  • Page 9 1-WARNINGS AND WARRANTY CONDITIONS SPARE PARTS In the event of a malfunction, consult the retailer who shall forward the call to the Technical Assistance Department. Only use original spare parts. The retailer or service centre can provide all necessary information regarding spare parts. We do not recommend waiting for the parts to get worn out before having them replaced.
  • Page 10 1-WARNINGS AND WARRANTY CONDITIONS Our solid bio-combustible products, (hereinafter called “Products”) are designed and manufactured in compliance with one of the following European standard harmonised to Regulation (UE) no. 305/2011 for construction products: EN 14785: “Residential space heating appliances fired by wood pellets” EN 13240: “Roomheaters fired by solid fuel.”...

  • Page 11: 2-Installation

    2-INSTALLATION The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. In any case, always observe the regulations in force in the country of installation. PELLETS Wood pellets are manufactured by extruding sawdust which is produced during the processing of natural dried wood (without paint). The compactness of the material is guaranteed by the lignin contained in the wood itself and allows the pellets to be produced without glue or binders.
  • Page 12 If the floor is made of wood, it is recommended to fit a floor protection sheet in compliance with the standards in force in the country of installation. Non-flammable walls Flammable walls ALEA AIR 7 S1 A = 4 cm A = 4 cm B = 5 cm B = 30 cm If the floor is made of combustible material, it is recommended to use a protection made of non-combustible material (steel, glass...) that...
  • Page 13 2-INSTALLATION FOREWORD This Flue chapter has been drawn up with reference to the provisions of European Standards (EN13384 - EN1443 - EN1856 - EN1457). The chapter provides indications for installing an efficient and correct flue but is under no circumstances to substitute the regulations in force, which the qualified manufacturer must be in possession of.
  • Page 14 2-INSTALLATION TECHNICAL SPECIFICATIONS Have the efficiency of the flue checked by an authorised technician. The flue must be sealed against flue gases, in a vertical direction without narrowing, be made with materials impermeable to smoke, condensation, thermally insulated and suitable to resist normal mechanical stress over time (we recommend fireplaces made of A/316 or refractory material with insulated round section double chamber).
  • Page 15 2-INSTALLATION ROOF AT 60° ROOF AT 45° 45° 60° A = MIN. 2.60 metres A = MIN. 2.00 metres FIGURE 6 FIGURE 5 B = DISTANCE > 1.20 metres B = DISTANCE > 1.30 metres C = DISTANCE < 1.20 metres C = DISTANCE <...
  • Page 16 2-INSTALLATION MAINTENANCE The flue must be kept clean, since the deposit of soot or unburnt oils reduces the cross-section, blocking the draught and thus compromising the efficient operation of the stove and, if large build-ups accumulate, can catch fire. The flue and chimneypot must be cleaned and checked by a qualified chimney sweep at least once a year.
  • Page 17 2-INSTALLATION EXTERNAL AIR INLET It is mandatory to provide an adequate external air inlet that supplies the combustion air required for the product to work properly. The flow of air between the outside and the installation room may be direct, through an inlet in an external wall of the room (preferable solution see Figure 9 a), or indirect, via air intake from adjoining rooms and connecting permanently with the installation room (see Figure 9 b).
  • Page 18 2-INSTALLATION In order to fully enhance the sealed features and heating performance of this Oyster appliance, and thus to avoid fitting a free air intake in the room. It is recommended to connect the air required for combustion directly to the external air intake through 060 mm piping with a maximum length of 3 linear metres, using the suitable “j”...
  • Page 19 2-INSTALLATION EXAMPLES OF CORRECT INSTALLATION 1. Installation of Ø120mm flue with hole for the passage of the pipe increased by: minimum 100mm around the pipe if next to non- flammable parts such as cement, brick, etc.; or minimum 300mm around the pipe (or as required by plate data) if next to flammable parts such as wood etc.

  • Page 20: 3-Drawings And Technical Specifications

    3-DRAWINGS AND TECHNICAL SPECIFICATIONS DRAWINGS AND CHARACTERISTICS ALEA AIR 7 S1 STOVE DIMENSIONS Ø 80 Ø 60 Ø 80...
  • Page 21 3-DRAWINGS AND TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS ALEA AIR 7 S1 Energy Efficiency Class Class according to Decree no.186 dated 7-11-2017 4 stars Nominal output power 7.0 kW (6020 kcal/h) Minimum output power 2.7 kW (2322 kcal/h) Efficiency at Max 89.6% Efficiency at Min 93.1%...
  • Page 22 3-DRAWINGS AND TECHNICAL SPECIFICATIONS WARNING Attention! The stoves small and lightweight, and therefore there is the risk of it tipping over. Secure the stove to the wall if children are present.

  • Page 23: 4-Unpacking

    4-UNPACKING PREPARATION AND UNPACKING Remove all the parts of the packaging (polystyrene, wood, plastic). All packaging materials can be reused for similar use or disposed of as urban solid waste, in accordance with the standards in force. After having removed the packaging make sure the product is intact. Handle the product with suitable means paying attention to the applicable safety regulations in force.
  • Page 24 4-UNPACKING Therefore, the end user is responsible for product storage, disposal or possible recycling in compliance with the relative applicable laws in force. Do not store the stove unit or its cladding without their packaging. Position the stove and connect it to the flue. Remove the plastic tie that fastens the top to the structure of the stove. If the stove needs to be connected to an outlet pipe which goes through the rear wall (to connect to the flue), take utmost care to make sure that the joint is not forced.

  • Page 25: 5- Smoke Outlet

    5- SMOKE OUTLET REAR SMOKE OUTLET FITTING The stove will be supplied as per standard with pipe “T” assembled. Proceed as follows to install the smoke outlet at the back: • remove the knockout hole “D” at the back of the stove • insert the elbow “C”...
  • Page 26 5- SMOKE OUTLET UPPER SMOKE OUTLET The stove will be supplied as per standard with pipe “T” assembled. Proceed as follows to install the top smoke outlet: • remove knockout hole “S” on the top • insert the linear pipe (optional) into the pipe “T” already supplied with the stove for the connection to the flue Ø...

  • Page 27: 6-Installation And Assembly

    6-INSTALLATION AND ASSEMBLY Live electrical parts: only power the product once it has been fully assembled. On delivery, the stove has no metal cladding, as shown in the image below. Take the box with the package (figure below) and prepare the material for installation. METAL CLADDING POS.
  • Page 28 6-INSTALLATION AND ASSEMBLY ASSEMBLING FRONT CLADDING The frame “P” to fix the front cladding on the stove is already assembled on the structure. Proceed as follows for assembly: • open the firebox door “Q” • remove the two screws “x” at the top part, inside the firebox door “Q” •...
  • Page 29 6-INSTALLATION AND ASSEMBLY • take the front panels “M”, “N”, “O” • fix them to the frame with the M5 nuts “b” provided • when you have finished mounting the front cladding, mount the complete frame in the stove structure •...
  • Page 30 6-INSTALLATION AND ASSEMBLY ACCESS TO THE CIRCUIT BOARD The circuit board “J” is located at the base of the stove. If the board needs to be accessed, remove the front panel. ACCESS TO THE GEARMOTOR You must remove the front panel to access the gearmotor “U”.

  • Page 31: 7-Opening The Doors

    7-OPENING THE DOORS OPENING THE DOOR OF THE FIREBOX To open the firebox door “Q”use the cold handle provided and pull it towards you. Attention! The firebox door must be closed properly for the stove to work correctly. Only open the doors when the stove is switched off and cold. Technical Dept.

  • Page 32: 8-Connection To Additional Devices

    8-CONNECTION TO ADDITIONAL DEVICES INSTALLATION OF WIFI PANEL (OPTIONAL-CODE 4020003) Use the knockout hole at the back of the stove to install the Easy Connect WiFi panel and follow the installation instructions found inside the product. The WiFi panel must be connected to the board on the stove using the supplied cable. In order to use the WiFi system, download the Easy Connect app and follow the set-up instructions.

  • Page 33: 9-Loading The Pellets

    9-LOADING THE PELLETS LOADING THE PELLETS Fuel is loaded from the upper part of the stove by lifting the door “S” . Pour the pellets in slowly so that they are deposited at the bottom of the hopper. If loading pellets when the stove is running, open the door of the tank using the stove mitten that comes with the stove itself.

  • Page 34: 10-Electrical Connection

    10-ELECTRICAL CONNECTION ELECTRICAL CONNECTION First connect the power cable to the back of the stove and then to a wall socket. It is recommended to disconnect the power cable when the stove is not used. ELECTRICAL STOVE CONNECTION The cable must never come into contact with the smoke exhaust pipe or any other part of the stove. STOVE POWER SUPPLY Connect the power cable to the back of the stove and then to a wall socket.

  • Page 35: 11-First Start-Up

    11-FIRST START-UP WARNINGS BEFORE IGNITION GENERAL WARNINGS Remove any objects that may burn from the product brazier and from the glass (manual, various adhesive labels or any polystyrene). Check that the brazier is positioned correctly and rests properly on the base. The first ignition may not be successful as the feed screw is empty and does not always manage to load the brazier with the required amount of pellets in time to light the flame.
  • Page 36 11-FIRST START-UP depending on the heat stored in the structure, determined by the duration and the operating speed of the product throughout the day. When the internal temperature drops below the set thresholds, the fans for hot air and exhaust smoke extraction will automatically switch off.

  • Page 37: 12-Control Panel

    12-CONTROL PANEL 1. Stove start-up/shutdown 5. Decreases set temperature / programming functions. 2. Scrolling down through the programming menu. 6. Increases set temperature / programming functions. 3. Menu 7. Display. 4. Scrolling up the programming menu. Technical Dept. - All rights reserved - Reproduction prohibited...

  • Page 38: 13-Menu Entries And Operation

    13-MENU ENTRIES AND OPERATION MAIN MENU Press key 3 (menu) to access it. The options accessed are: • Date and Time • Timer • Sleep (only when stove is on) • Settings • Info Date and time configuration Proceed as follows to configure the date and time: •...
  • Page 39 13-MENU ENTRIES AND OPERATION EXAMPLES OF PROGRAMMING: 08:00 12:00 11:00 14:00 Stove on between 08:00 and 14:00 08:00 11:00 11:00 14:00 Stove on between 08:00 and 14:00 17:00 24:00 00:00 06:00 Stove on between 17:00 on Monday to 06:00 on Tuesday NOTES ON USE OF THE TIMER •...
  • Page 40 13-MENU ENTRIES AND OPERATION OPERATING MODE ADJUSTMENT MENU “Adjustments” menu settings determine the operating mode of the stove. To access the menu, proceed as follows: • Press the + - keys • Scroll by using the <> arrows and select “Set Amb. T” or “Set Ventilation T” or “Set Flame” •...
  • Page 41 13-MENU ENTRIES AND OPERATION SETTINGS MENU The SETTINGS menu enables to configure the stove operating modes: a. Language. b. Cleaning (only displayed when stove is off). Feed screw loading (shown only when stove is off). d. Tones. e. External thermostat (activation). Auto Eco (activation).
  • Page 42 13-MENU ENTRIES AND OPERATION d - Tones This function is disabled by default. To enable it proceed as follows: • Press the “menu” key. • Use the arrow keys to scroll through and select “Settings” • Press “menu” to confirm. •...
  • Page 43 13-MENU ENTRIES AND OPERATION h - Pellet Recipe This function is for adapting the stove to the type of pellet in use. As there are many types of pellets available on the market, operation of the stove can vary considerably according to the quality of the fuel. When the pellets clog up the brazier due to excess loading of fuel or when the flame is always high even at low power, or when the flame is low, it is possible to decrease/increase the amount of pellets in the brazier: The available values are:...
  • Page 44 13-MENU ENTRIES AND OPERATION • Press “menu” to confirm. • Use the arrow keys to scroll through and select ‘’Components test’’ . • Press “menu” to confirm. • Use the + - keys to select the test to be carried out •...
  • Page 45 13-MENU ENTRIES AND OPERATION EXTERNAL THERMOSTAT CONNECTION (optional) The room thermostat is not included with the stove and must be installed by a qualified technician. ATTENTION! The electrical wires must not come into contact with the hot parts of the stove. TERM.

  • Page 46: 14-Safety Devices

    14-SAFETY DEVICES SAFETY DEVICES The product is fitted with the following safety devices PRESSURE SWITCH Monitors pressure in the smoke duct. It is designed to shut down the pellet feed screw in the event of an obstructed flue or significant back-pressure (from wind) SMOKE TEMPERATURE PROBE Detects the temperature of the smoke, thereby enabling start-up or stopping the product when the temperature drops below the preset...

  • Page 47: 15-Alarms

    15-ALARMS ALARM SIGNALLING When an operating condition other than the one expected for regular stove operation occurs, an alarm is triggered. The reason for the alarm is shown on the control panel. The sound signal is not enabled for alarms A01-A02 in order not to disturb the user when there is an absence of pellets in the hopper during the night.
  • Page 48 15-ALARMS NORMAL SHUTDOWN (on the panel: OFF with flashing flame) When the shutdown key is pressed, or when there is an alarm signal, the stove enters the thermal extinguishing stage which involves automatic execution of the following stages: • Pellet loading stop •...
  • Page 49 15-ALARMS ALARM A05 AND MINIMUM NEGATIVE PRESSURE INSIDE THE PELLET HOPPERS OF THE SEALED PRODUCTS In the event that alarm A05 is triggered often, please note that: Smoke pressure switch triggered Check for chimney obstructions / door open Fuel loading hatch Close the hatch.
  • Page 50 15-ALARMS Remembering that the draught recommended for the products to work properly is 10 Pa at maximum capacity and 5 Pa at minimum (according to the technical data sheet found in the user and maintenance manual), adjustments may be required in worse draught conditions (also due to the position of the flue in areas that are particularly subject to adverse weather such as prevailing winds, snow, northern exposure, etc.) so as to always guarantee the required negative pressure inside the hopper.
  • Page 51 15-ALARMS NEGATIVE PRESSURE INSIDE THE HOPPER WITH FACTORY-SET PARAMETERS AND A DRAUGHT OF 5 Pa (MINIMUM RECOMMENDED) POWER VALUES 13.7/14.2 Pa 15.1/15.6 Pa 17.1/17.5 Pa 19.1/19.5 Pa 22.0/22.2 Pa Draught 6 kW 95°C 110°C 125°C 141°C 165°C Smoke temperature 13.8/14.3 Pa 15.6/16.1 Pa 17.8/18.0 Pa 21.7/22.2 Pa...

  • Page 52: 16-Recommendations For Safe Use

    16-RECOMMENDATIONS FOR SAFE USE ONLY CORRECT INSTALLATION AND APPROPRIATE MAINTENANCE AND CLEANING OF THE APPLIANCE CAN GUARANTEE CORRECT OPERATION AND SAFE USE OF THE PRODUCT. We would like to inform you that we are aware of cases of malfunctioning of domestic pellet-fuelled heating products, mainly due to incorrect installation and use, as well as inadequate maintenance.

  • Page 53: 17-Cleaning

    17-CLEANING EXAMPLE OF A CLEAN BRAZIER EXAMPLE OF A DIRTY BRAZIER Only by properly servicing and cleaning the product is it possible to ensure its safety and correct operation. ATTENTION! All the cleaning operations of all parts must be performed with the product completely cold and unplugged. Disconnect the product from the 230V power supply before performing any maintenance operation The product requires little maintenance if used with certified good quality pellets.
  • Page 54 17-CLEANING For the brazier to be cleaned properly, remove it from its housing completely and thoroughly clean all the holes and the grate on the bottom. If high quality pellets are used, you will normally only need to use a brush to restore the optimal operating conditions of the component.
  • Page 55 17-CLEANING PERIODIC CLEANING PERFORMED BY A QUALIFIED TECHNICIAN CLEANING THE HEAT EXCHANGER Half-way through the winter season, but especially at the end, the compartment through which the exhaust smoke passes will need to be cleaned. This cleaning process is mandatory in order to facilitate the general removal of all combustion residue, before it becomes very difficult to remove it due to moisture compacting it over time.
  • Page 56 17-CLEANING FAN CLEANING The fan is secured to the back of the stove. Proceed as follows to remove it: • undo the 4 screws “x” • remove the cap “z” • and the gasket “g” • remove the fan • vacuum the ash and dust built up in the fan CLEANING THE HEAT EXCHANGER CLEANING THE UPPER COMPARTMENT...
  • Page 57 17-CLEANING Take out the internal cast iron “T” and “S” By using a stiff rod or a bottle brush, scrape the walls of the firebox in order to make the ash fall into the lower compartment. Then thoroughly clean the lower exchanger, replace any gaskets if needed, and reassemble. PERIODICAL CHECK OF THE DOOR CLOSURE Make sure the door closure ensures a correct sealing action (with the “paper sheet”...
  • Page 58 17-CLEANING CLEANING THE SMOKE DUCT AND GENERAL CHECKS Clean the smoke outlet system, especially around the Tee fittings, elbows and any horizontal sections of the smoke duct. For information on periodically cleaning the flue, contact a skilled chimney sweep. Check the seal of the ceramic fibre gaskets on the door of the stove. If necessary, order new replacement gaskets from the retailer or contact an authorised service centre to carry out the operation.
  • Page 59 17-CLEANING SHUTDOWN (end of season) At the end of each season, before switching the product off, it is recommended to remove all the pellets from the hopper with a vacuum cleaner with a long pipe. We recommend removing the unused pellets from the hopper because they can retain moisture. Disconnect any combustion air ducting that can lead to moisture inside the combustion chamber but, above all, ask the specialised technician to refresh the paint inside the combustion chamber with the special silicone spray paints (available at any store or Technical Assistance Centre) during the necessary annual end of season scheduled maintenance operations.

  • Page 60: 18-Faults/Causes/Solutions

    18-FAULTS/CAUSES/SOLUTIONS ATTENTION: All repairs must only be carried out by a specialised technician, with the product switched off and unplugged. ANOMALY POTENTIAL CAUSES SOLUTIONS The pellets are not fed into The pellet hopper is empty Fill the hopper with pellets. the combustion chamber.
  • Page 61 18-FAULTS/CAUSES/SOLUTIONS ANOMALY POTENTIAL CAUSES SOLUTIONS The smoke extractor motor is not No electrical supply to the stove. Check the mains voltage and the working. protection fuse. The motor is faulty. Check the motor and capacitor and replace them, if necessary. Faulty motherboard.

  • Page 62: 19-Circuit Board

    19-CIRCUIT BOARD TERM. AMB. H2O +TC- DISPLAY ENCODER FUMI OPT. +5V GND ENC LIVE ELECTRICAL CABLES SERIAL DISCONNECT THE 230V POWER CABLE BEFORE CARRYING OUT ANY OPERATIONS ON THE CIRCUIT BOARDS ACC. SIC DEP. FUMI SCA COC. WIRING KEY 1. ROOM PROBE 8.
