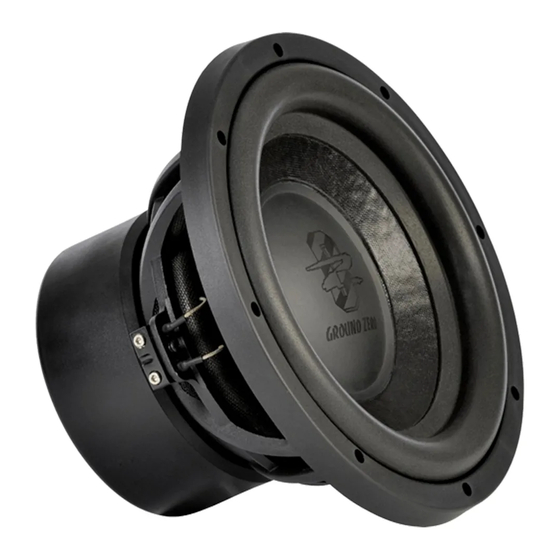

Ground Zero URANIUM GZUW 8SQ Owner's Manual

Ground Zero URANIUM GZUW 8SQ Owner's Manual

Advertisement

Quick Links

URANIUM-SERIES
SUBWOOFER
ANLEITUNG / OWNER'S MANUAL
GZUW 8SQ
GZUW 10SQX
GZUW 12SQX
Ausstattungsmerkmale / Features
• Aluminium Gußkorb
• Gepresste und beschichtete Papier Membrane
• 2 x 2 Ohm Kupfer Schwingspule
• Kapton Träger
• Audiophile POLYCOT Zentrierung
o Aluminum cast basket
o Pressed and coated paper cone
o 2 x 2 Ohm copper voice coil
o Kapton Former
o Audiophile POLYCOT Spider

Advertisement

loading
Need help?

Need help?

Do you have a question about the URANIUM GZUW 8SQ and is the answer not in the manual?

Questions and answers

Summary of Contents for Ground Zero URANIUM GZUW 8SQ

  • Page 1 URANIUM-SERIES SUBWOOFER ANLEITUNG / OWNER’S MANUAL GZUW 8SQ GZUW 10SQX GZUW 12SQX Ausstattungsmerkmale / Features • Aluminium Gußkorb • Gepresste und beschichtete Papier Membrane • 2 x 2 Ohm Kupfer Schwingspule • Kapton Träger • Audiophile POLYCOT Zentrierung o Aluminum cast basket o Pressed and coated paper cone o 2 x 2 Ohm copper voice coil o Kapton Former...
  • Page 2 Technische Daten / Specifications GZUW 8SQ GZUW 10SQX GZUW 12SQX Voice Coil Diameter 50 / 2" 50 / 2" 50 / 2" mm / inch Impedance Ohm 2 x 2 2 x 2 2 x 2 Re Ohm FS Hz 44.5 46.7 38.6...
  • Page 3 Gehäuseempfehlung / Enclosure recommendation GZUW 8SQ Bassreflex / Vented 18 Liter netto / 0.64 cu.ft. net (Rot / Red) 7 cm / 2.76” Port 28 cm / 11” Portlänge / Length* 43 Hz / 38 Hz Fb / F3 12 Liter netto geschlossen / 0.42 cu.ft. net sealed Bandpass 4 th order 15 Liter netto ventiliert / 0.53 cu.ft.
  • Page 4 Gehäuseempfehlung / Enclosure recommendation GZUW 10SQX Bassreflex / Vented 42 Liter netto / 1.48 cu.ft. net (Rot / Red) 8 cm / 3.15” Port 21 cm / 8.27” Portlänge / Length* 36 Hz / 30 Hz Fb / F3 22 Liter netto geschlossen / 0.78 cu.ft. net sealed Bandpass 4 th order 26 Liter netto ventiliert / 0.92 cu.ft.
  • Page 5 Gehäuseempfehlung / Enclosure recommendation GZUW 12SQX Bassreflex / Vented 56 Liter netto / 1.98 cu.ft. net (Rot / Red) 10 cm / 4” Port 26 cm / 10.24” Portlänge / Length* 35 Hz / 31 Hz Fb / F3 27 Liter netto geschlossen / 0.95 cu.ft. net sealed Bandpass 4 th order 33 Liter netto ventiliert / 1.17 cu.ft.
  • Page 6 We reserve the right to make needed change or improvement to the product without informing customer about this in advance. De Garantie bepalingen van alle door ground zero geleverde producten is volgens wettelijke bepalingen geregeld, Een retourzending kan alleen na duidelijke afspraak en in de originele verpakking plaatsvinden.SVP een aankoopbon en een duidelijke storingsomschrijving bijvoegen.Van garantie uitgesloten zijn defecten door...

This manual is also suitable for:

Uranium gzuw 10sqxUranium gzuw 12sqx
