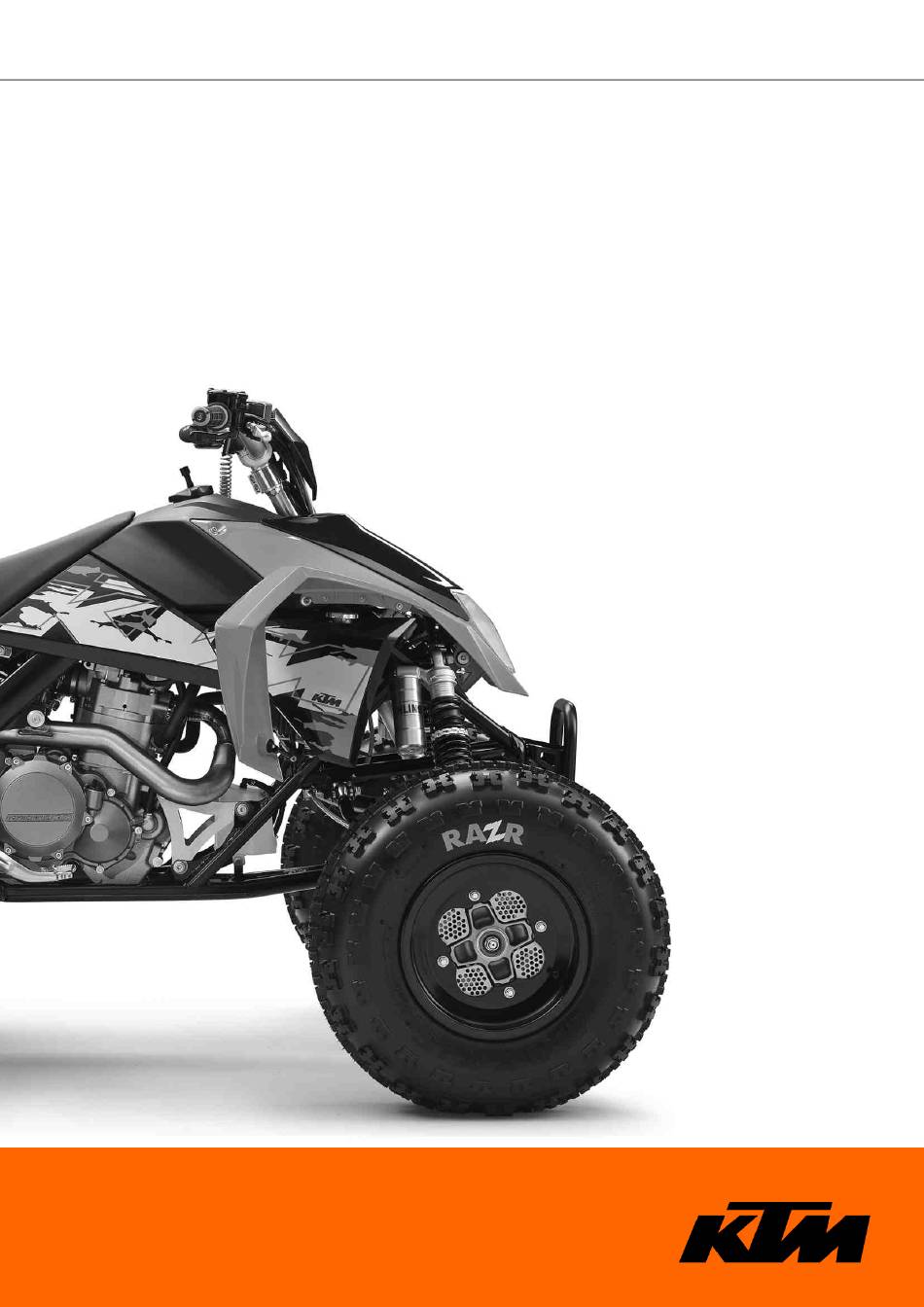

SETUP INSTRUCTIONS
2009
450 XC ATV
525 XC ATV
Art. no. 3211617en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 450 XC ATV 2009 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KTM 450 XC ATV 2009

Summary of Contents for KTM 450 XC ATV 2009

  • Page 1 SETUP INSTRUCTIONS 2009 450 XC ATV 525 XC ATV Art. no. 3211617en...
  • Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.

  • Page 4: Means Of Representation

    MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Identifies a page reference (more information is provided on the specified page). Formats used The typographical and other formats used are explained below.
  • Page 5   Info The key cover cap is in the tool set. Read the installation instructions on the inside of the cap. – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection. 100107-10...

  • Page 6: Adjusting The Handlebar Position

    WORK Adjusting the handlebar position – Pull the instrument support off the handlebar and swing it to the side. Info Protect the vehicle and its attachments from damage by covering them. Do not bend the cables and lines. 100100-10 – Remove the four screws .

  • Page 7: Mounting The Seat

    WORK Mounting the seat – Hook slot on the seat into collar sleeve of the fuel tank, lower the rear of the   seat and slide tab under fuel tank   100046-10 – Push down the rear of the seat until release hook engages.

  • Page 8: Installing The Rear Fender

    – Do not discard batteries with the household trash. Dispose of a defective battery in an environmentally compatible manner. Give the battery to your KTM dealer or to a recycling center that accepts used batteries. Warning Environmental hazard Hazardous substances cause environmental damage.

  • Page 9: Installing The Battery

    WORK Info Even if there is no load on the battery, it still loses power steadily. The charge state and the type of charge are very important for the service life of the battery. Rapid charging with a high charging current has a negative impact on the service life. If the charging current, charging voltage and charging time are exceeded, electrolyte escapes via the safety valves.
  • Page 10 WORK Warning Environmental hazard Improper handling of fuel is a danger to the environment. – Do not allow fuel to get into the ground water, the ground, or the sewage system. – Switch off the engine. – Open the filler cap. –...

  • Page 11: Technical Data - Chassis Tightening Torques

    TECHNICAL DATA - CHASSIS TIGHTENING TORQUES – Remaining nuts, chassis 15 Nm (11.1 lbf ft) – Remaining screws, chassis 10 Nm (7.4 lbf ft) – Screw on fuel tank 6 Nm (4.4 lbf ft) – Screw, clamping nut, rear axle 10 Nm (7.4 lbf ft) ®...
  • Page 12 SUBSTANCES Super unleaded (ROZ 95 / RON 95 / PON 91) According to – DIN EN 228 (ROZ 95 / RON 95 / PON 91)
  • Page 13 *3211617en* 3211617en KTM-Sportmotorcycle AG 5230 Mattighofen/Austria http://www.ktm.com...

This manual is also suitable for:

525 xc atv 2009
