  • Page 1 MT12 Quick start guide WWW.RADIOMASTERRC.COM...
  • Page 2: Safety Information

    Power Requirements. MT12 is powered by 2x 3.7V 18650 Lithium Ion cells or a suitable 2s Lipo battery and is charged using the built-in USB-C port. The charging circuitry is designed for charging 2x 3.7V Lithium Ion or 2s lipo batteries only. The nominal voltage per cell is 3.7V and the maximum charging voltage per cell is 4.2V.
  • Page 3: Remote Control Overview

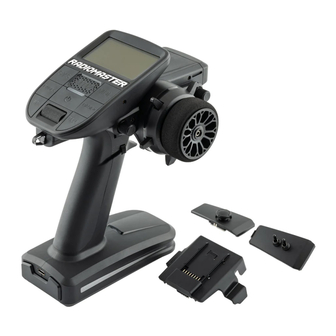

    Remote control overview LCD Screen Speaker SYS Button PAGE< Button P1 Dial Power Button RTN Button P2 Dial Menu Wheel Handwheel TELE Button Lanyard Loop PAGE> Button SA Button SC Button MDL Button Expansion module cover TYPE-C Charge Port Battery bay SD Button External Module Bay SD Card Slot...
  • Page 4 • Range [RNG] button can reduce the power to 1/30 to facilitate testing of remote-control distance. Model selection and protocol selection (ExpressLRS version) MT12 ELRS units equipped with an internal ELRS module are capable of providing 10mW-250mW RF output (limited to 100mw for EU LBT versions). In non-extreme circumstances, 100mW output at 500Hz update rate is recommended, as higher RF output and update rates may significantly reduce battery life and generate excessive heat.
  • Page 5: Specifications

    Should any issues arise with your radio system's hardware, please keep the proof of purchase and contact the retailer where you made the MT12 purchase. You may also visit our warranty support page https://ww- w.radiomasterrc.com/contact The limited warranty covers defects in workmanship for one year from the date...
  • Page 6 在组装或维护过程中,务必断开模型的电源。 请勿在以下情况下使用MT12枪控遥控器: • 恶劣天气或强风条件下,例如雨,冰雹,下雪,暴风雨或电磁环境中。 • 能见度较差的情况下。 • 可能存在人员、财产、电力高压线、公共道路、有车辆或动物的区域。 • 在您感到疲倦或不适,或在药物或酒精的影响下。 • 在遥控器或模型损坏或无法正常工作的情况下。 • 在2.4GHz干扰较大的区域或禁止使用2.4GHz无线电的地方。 • 在遥控器电池电压低的情况下。 • 在当地法规禁止使用模型的区域。 说明书和固件下载 MT12枪控遥控器出厂默认安装EdgeTX固件。若需下载最新手册或原厂固件,请访问RadioMaster官方 网站:https://www.radiomasterrc.com 若需为您的MT12枪控遥控器下载最新的EdgeTX固件,请访问 EdgeTX官网:https://www.edgetx.org 警告! MT12出厂时预装最稳定的固件, 如果您需要更新到最新版本的系统固件,请自行到EdgeTX官网下载安装。错 误的更新方式可能会导致遥控器无法操作。 电源和充电注意事项 MT12枪控遥控器使用2个3.7V 18650电池或2S Lipo电池,并可通过内置的USB-C端口进行充电。充电电路仅 适用于充电2个3.7V 18650电池或2S Lipo电池。每个电池的电压为3.7V,最大充电电压为4.2V。 请勿使用内置充电器为3.6V锂铁电池和3.6V 18650锂离子电池或电池组充电。充电或使用错误的电池类型/极 性可能导致PCB永久性损坏,并在严重情况下引发火灾。 请定期检查电池的电压和状态,并务必在有人监管的情况下进行充电。请避免在易燃材料附近进行充电。如果 遥控器被水润湿或出现任何损坏,请勿充电。对于使用或误用本产品而导致的任何不良后果,RadioMaster不 承担任何责任。...
  • Page 7 遥控器概述 LCD显示屏 扬声器 SYS按键 PAGE<按键 电源按键 RTN按键 导航滚轮及ENT按键 手轮 TELE按键 挂带环 PAGE>按键 SA按键 MDL按键 SC按键 扩展模块 TYPE-C充电接口 电池盒 SD按键 外置模块插槽 SD 卡槽 AUX 接口 天线 3.5mm 耳机插口 USB 数据接口 DSC 教练接口 油门 手柄 油门前后距离调节 油门弹力调节...
  • Page 8 模型选择及协议选择 MT12枪控遥控器提供两种选择:4合1多协议内置模块和Express LRS内置模块,根据您购买的版本,支持不同的 协议。如需了解可兼容协议的最新列表,请访问以下网站:https://www.-multi-module.org 或https://www.expresslrs.org/。 请注意,新的协议将不断更新并添加到最新固件中。有些新的协议可能需要固件升级。 · 请长按MDL按钮进入模型设置,在SETUP页面中选择MULTI,并在子选项中选择需要使用的协议。系统根据 您选择的射频协议,会自动开启对应的射频模块,同时关闭其它三个射频模块。系统在同一时间只会开启一个 射频模块,以确保没有多余的无线电信号相互干扰。 · [Bnd]选项用于启动对频过程。 · [Rng]选项可将功率降低至1/30,以方便测试遥控距离。 模型选择及协议选择(内置ELRS高频模块) MT12 内置ELRS具有10mW-250mW可调范围,最大功率为250mW,在非极限条件使用时,推荐将功率 限制为100mW,并使用500Hz速率,更高的速率会降低控制距离,更高的功率会带来较大的发热和耗电, 请您根据自身需求,合理调整功率及速率,以便达到性能和耗电的平衡。 对频流程: 1:关闭遥控器 2:重复上电接收机3次,接收器LED会进入双闪模式,表示进入对频模式。 3:打开遥控器,长按SYS按钮,在“TOOLS”菜单中选择“ExpressLRS ”LUA。向下滚动至[Bind]并按确定键。 4:接收机上的LED常亮后,表示对频成功 注意 EdgeTX软件非常强大,并且具有大量的编程和混控功能。 要获取EdgeTX最新详细的开源资料,请访问EdgeTX官方网站:https://www.edgetx.org...
  • Page 9 工作电压:6.6-8.4V DC 操作系统:EdgeTX 控制通道: 最多支持16 通道(取决于接收机) 显示屏:128*64 LCD显示屏 电池:2 x 18650或21700 5000mAh 7.4V电池组(电池不包含) 充电 : 支持USB-C直充 固件升级方式:通过USB或SD卡 油门和方向: 霍尔传感器 模块: Nano尺寸(兼容RadioMaster Rangere Nano 高频头/ RadioMaster RM 4in1 高频头 / TBS Crossfire Nano 高频头) 保修及维修 如果您的遥控器硬件出现任何问题,请保留购买证明并与您购买MT12的零售商联系。 用户手册 有关MT12 EdgeTX系统固件的详细用户手册,请访问Radiomaster官方网站: https://www.radiomasterrc.com 欧盟认证合格声明...
  • Page 10 WWW.RADIOMASTERRC.COM...
