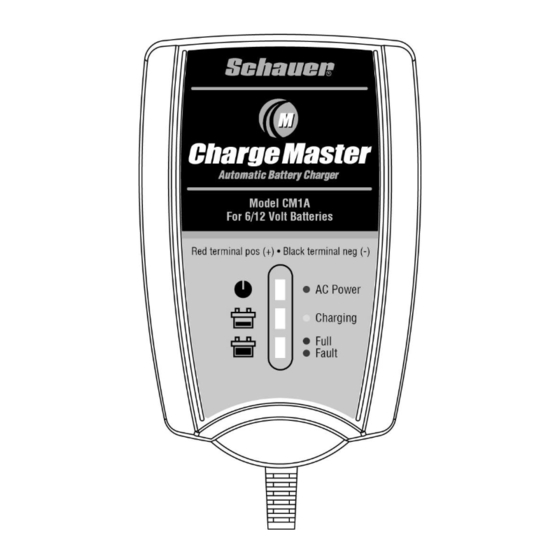

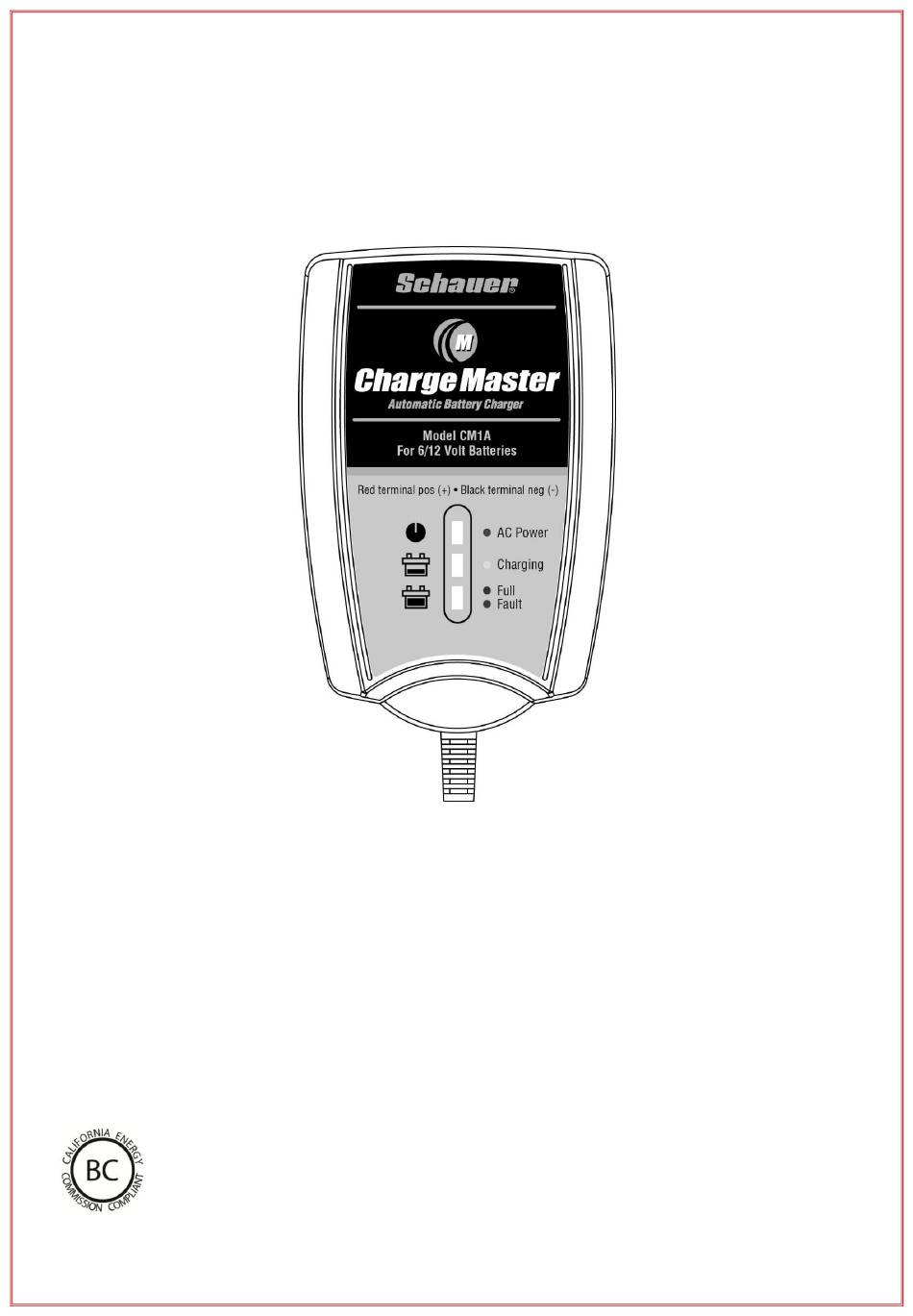

- Page 1 User Manual Battery Charger / Maintainer For 6 / 12 Volt lead-acid batteries 1 Amp Model: CM1A (0757-13CEC / SD16101B)
-
Page 2: Personal Precautions
WARNING RISK OF EXPLOSIVE GASES WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. EXPLOSIVE GASES DEVELOP DURING NORMAL BATTERY OPERATION. IT IS IMPORTANT THAT EACH TIME BEFORE USING YOUR CHARGER, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY. ... -
Page 3: Charger Location
attention immediately. NEVER smoke or allow a spark or flame in vicinity of battery or engine. Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short- circuit battery or other electrical part that may cause explosion. ... -
Page 4: Main Features
engine block away from battery keeping the battery terminal well removed there from. Do not connect any charger clips to carburetor, fuel lines, or sheet-metal body parts. Connect to a heavy gauge metal part of the frame or engine block. Connect charger AC supply cord to electric outlet. -
Page 5: Battery Types & Capacity
Internal over heat protection: Chargers have an internal overheat protection. The power will be reduced of the ambient temperature is raised. Corrosion-resistant output connectors Output clips and ring terminals provided: It comes with a quick connect fly lead and 2 different kinds of connectors, crocodile clips and a ring terminals. -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS: Part Number CM1A Type Automatic Input Voltage Range 100~120Vac Input Frequency 50/60Hz Output 1A @ 6V/12V Size (L*W*H) 100 x 65 x 36 mm Weight 0.4Kg Approvals UL/cUL, FCC, CEC CHARGING INSTRUCTIONS: STEP 1 - Pre Charge Check & Electrolyte Level Check ... -
Page 7: The Charging Process
Connection in Vehicle (Negatively Earthed) o If Positively Earthed – FIRST Connect the Black (-) battery charger lead to the Negative (-) battery post and then connect the Red (+) battery charger lead to the Vehicle’s chassis and far away from the fuel line. Connection in Vehicle (Positively Earthed) STEP 3 - Connect the battery charger to Mains Power (120Vac) ... -
Page 8: Maintenance
If the Battery is out of the vehicle. o Switch OFF and Remove the AC Power Socket from the outlet. o Remove the Black lead and then the Red lead. o Check electrolyte levels if possible. (As they may need topping up with distilled water after charging) LED STATUS INIDICATOR TABLE: Power Charging...
