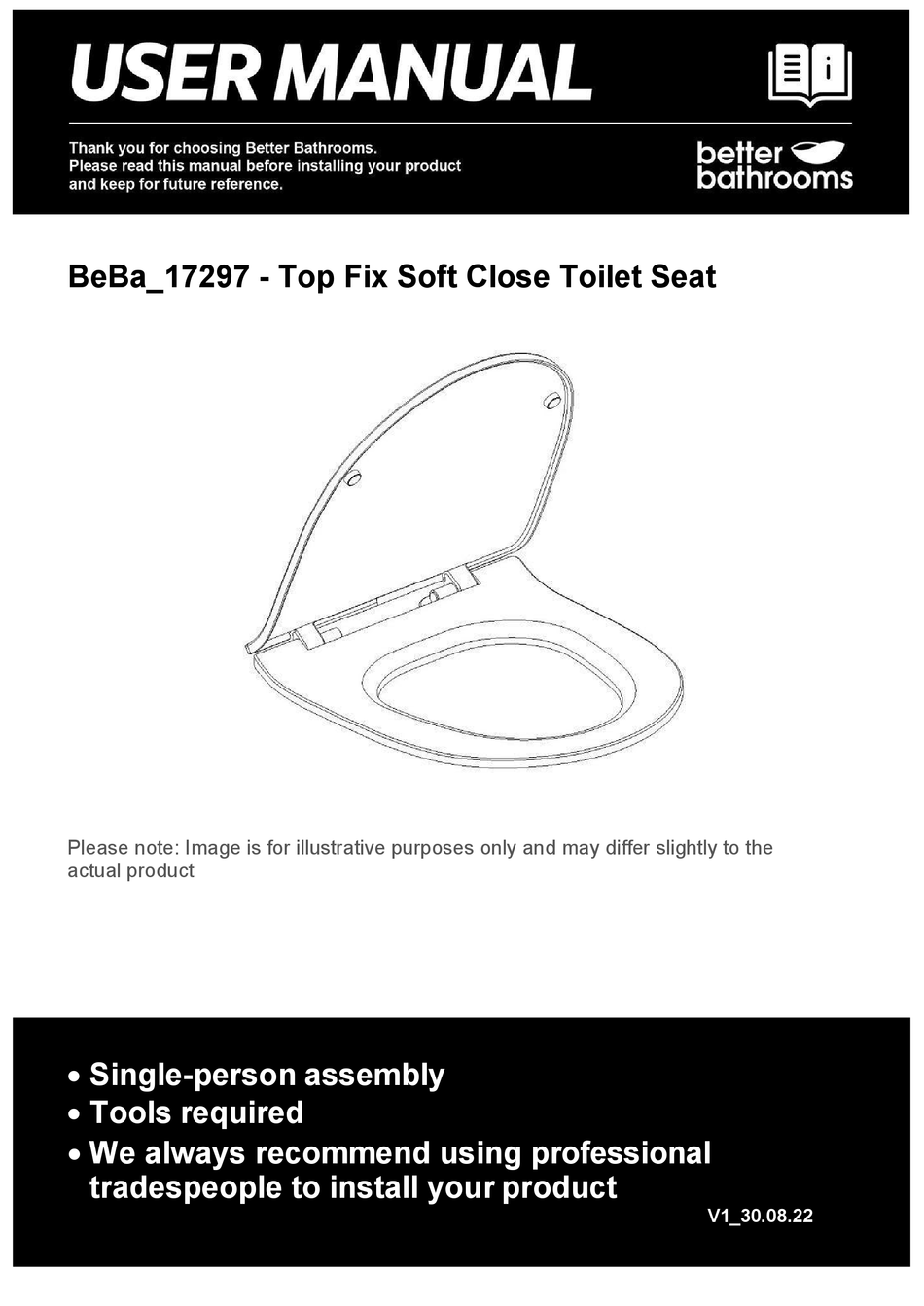

- Page 1 BeBa_17297 - Top Fix Soft Close Toilet Seat Please note: Image is for illustrative purposes only and may differ slightly to the actual product Single-person assembly Tools required We always recommend using professional tradespeople to install your product V1_30.08.22...
-
Page 2: Congratulations On Your Purchase
Congratulations on your purchase And welcome to our growing gang of savvy shoppers We're on a mission to bring you extraordinary bathroom products, for less. From modern to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So, you can fall in love with your space every single day. -
Page 3: Tools Required
Parts Please note that Parts are for illustrative purposes only and may differ slightly to the actual product 1. Expanding Plug 2. Gasket 3. Fitting Peg 4. Fixing Screw 5. Fitting Cover 4. Seat/Lid Assembly Tools required Screwdriver... -
Page 4: Installation
Installation 1. Push the expanding plugs (part 1) into the holes on the toilet pan then place the gaskets (part 2) between fitting pegs (part 3) and toilet pan. Next, place the long screws (part 4) through the fitting pegs and gaskets and screw into the expanding plug (part 1). - Page 5 4. Place the fitting covers over the fixed fittings then push the seat onto the fitting pegs and click into position Using During use do not force the seat closed as this will damage the soft close mechanism. Pull the seat and/or lid towards you slightly until it reaches the point at which it will fall under its own weight, then release.
-
Page 6: Troubleshooting
Troubleshooting Seat becomes loose after a period of use Remove the seat and re-tighten the fittings. Soft close mechanism stops working The mechanism cannot be replaced, replace the seat and lid, however, the fittings can remain fitted. Removal of seat/lid is advised in Maintenance (below). Seat is short or overhangs the toilet pan Align the seat lid with the front edge of the toilet pan, the fittings are adjustable. - Page 7 V I I...
- Page 8 Installation Instructions For Floor Fixing Kit 1. The WC pan should be installed on a flat surface and placed in its final intended position. Diagram Key 2. Using the diagram below as a guide, position each plastic floor fixing bracket inside the walls of the WC pan directly behind the fixing holes.
