Wall Hung Toilet
BeBa_27556 Boston Wall Hung Pan
BeBa_25895 Ashford Rimless Wall Hung Toilet
BeBa_25901 Santiago Rimless Wall Hung Toilet
BeBa_25899 Valencia Rimless Wall Hung Toilet
BeBa_28418 Newport Rimless Wall Hung Toilet
Toilet seat and Wall Frame/cistern sold separately
•
Waste pipe sold separately if a new installation
Please note: Image is for illustrative purposes only and may differ slightly to the
actual product.
• Single-person assembly
• Tools required
• We always recommend using professional
tradespeople to install your product
V4 11.1.22
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Better Bathrooms BeBa 27556
Summary of Contents for Better Bathrooms BeBa 27556

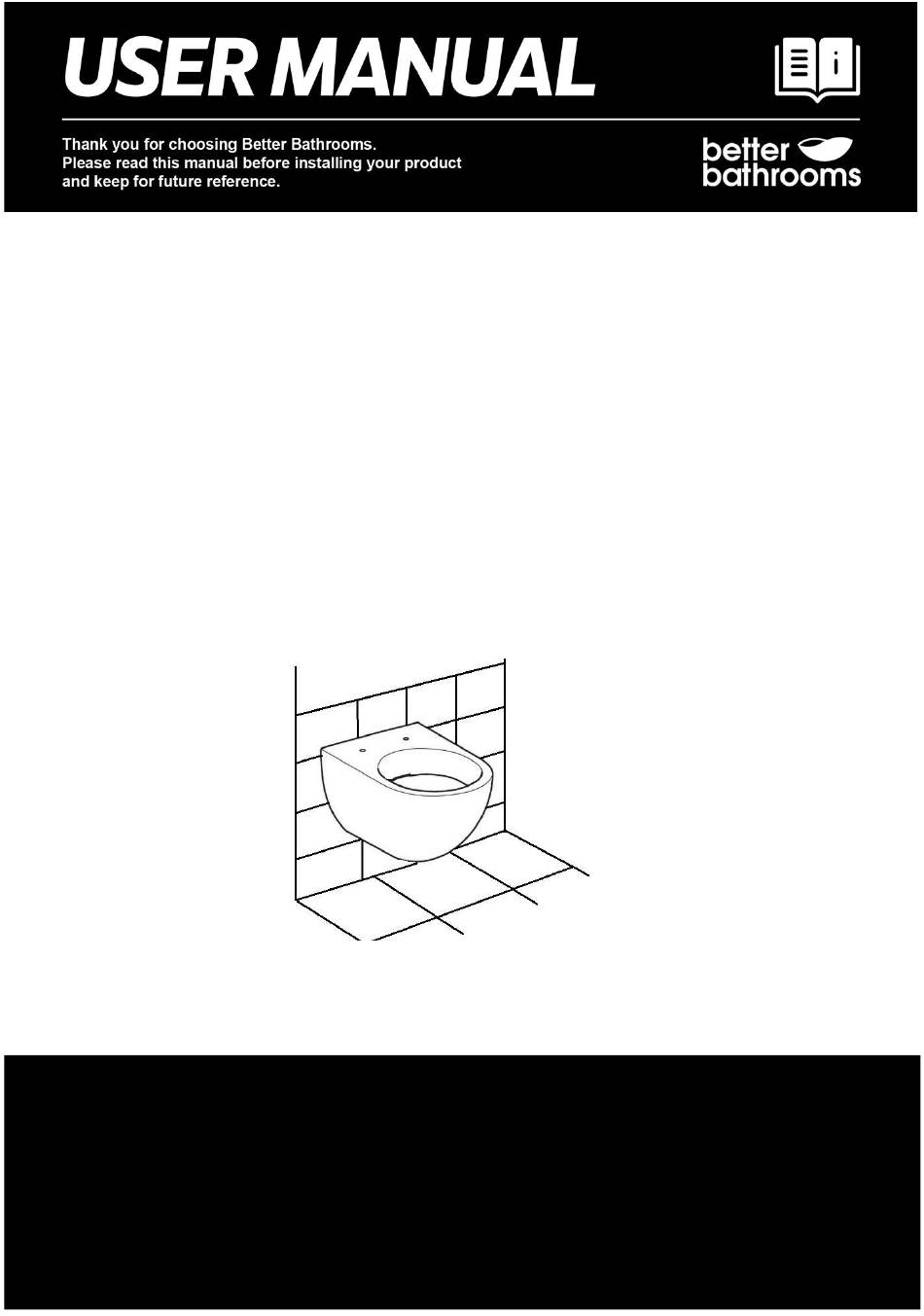

- Page 1 Wall Hung Toilet BeBa_27556 Boston Wall Hung Pan BeBa_25895 Ashford Rimless Wall Hung Toilet BeBa_25901 Santiago Rimless Wall Hung Toilet BeBa_25899 Valencia Rimless Wall Hung Toilet BeBa_28418 Newport Rimless Wall Hung Toilet Toilet seat and Wall Frame/cistern sold separately • Waste pipe sold separately if a new installation Please note: Image is for illustrative purposes only and may differ slightly to the actual product.
- Page 2 Congratulations on your purchase And welcome to our growing gang of savvy shoppers We're on a mission to bring you extraordinary bathroom products, for less. From modern to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So, you can fall in love with your space every single day.
-
Page 3: Table Of Contents
Contents • Parts • Tools required • Installation o Preparing for a Wall Hung Toilet Pan Fitting o Wall Hung Toilet Pan Fitting • Troubleshooting • Maintenance • Cleaning... -
Page 4: Parts
Parts Toilet Pan Fixing kit (below components) Please note not all the parts included are required for all installations, example top fixing pans do not require Part E A. Allen key B. 2 x Threaded connector (fixing bolts) C. 2 x Plastic wall mounting housing D. -
Page 5: Installation
Installation Please note: Whenever possible and when safe to do so, it is recommended to carry out leak tests during the installation process. Preparing for a Wall Hung Toilet Pan Fitting A – Flush pipe is supplied with the Wall Frame/cistern assembly, (Wall Frame/cistern sold separately). -
Page 6: Wall Hung Toilet Pan Fitting
Wall Hung Toilet Pan Fitting After the wall frame has been set in the wall and the wall has been finished, the installation of the toilet pan to the frame can begin. 1. Prepare the pipes as advised (cutting of the flush pipe and pan connector may be required). - Page 7 5. Insert the plastic wall mounting housing into the holes in the rear of the toilet pan and align the hole with the fixing hole on the top face of the toilet pan. Please note: this next section will require two people. 6.
-
Page 8: Troubleshooting
10. Once the installation is completed, a flush and leak test should be carried out and once it has been commissioned, the toilet can be sealed around the edge to finish. Troubleshooting Flush volume into the pan, not sufficient 1. Adjust the flush volume level on the syphon. 2. -
Page 9: Actual Product
Top Fix Soft Close Toilet Seat Please note: Image is for illustrative purposes only and may differ slightly to the actual product • Single-person assembly • Tools required • We always recommend using professional tradespeople to install your product V1_21.5.20... -
Page 10: Important Information
Congratulations on your purchase And welcome to our growing gang of savvy shoppers We're on a mission to bring you extraordinary bathroom products, for less. From modern to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So, you can fall in love with your space every single day. - Page 11 Parts Please note that Parts are for illustrative purposes only and may differ slightly to the actual product 1. Expanding Plug 2. Gasket 3. Fitting Peg 4. Fixing Screw 5. Fitting Cover 4. Seat/Lid Assembly Tools required Screwdriver...
-
Page 12: Installation
Installation 1. Push the expanding plugs (part 1) into the holes on the toilet pan then place the gaskets (part 2) between fitting pegs (part 3) and toilet pan. Next, place the long screws (part 4) through the fitting pegs and gaskets and screw into the expanding plug (part 1). - Page 13 4. Place the fitting covers over the fixed fittings then push the seat onto the fitting pegs and click into position Using During use do not force the seat closed as this will damage the soft close mechanism. Pull the seat and/or lid towards you slightly until it reaches the point at which it will fall under its own weight, then release.
-
Page 14: Troubleshooting
Troubleshooting Seat becomes loose after a period of use Remove the seat and re-tighten the fittings. Soft close mechanism stops working The mechanism cannot be replaced, replace the seat and lid, however, the fittings can remain fitted. Removal of seat/lid is advised in Maintenance (below). Seat is short or overhangs the toilet pan Align the seat lid with the front edge of the toilet pan, the fittings are adjustable. - Page 15 版本 料号 236J701-E71-01B 尺寸 材质 100克双胶 175X260mm 日期 页数 2021.12.08 表单编号 版本 Congratulations on your purchase Contents Dimensions Parts And welcome to our growing gang of savvy shoppers Dimensions We're on a mission to bring you extraordinary bathroom products, for less. From modern Parts to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match.
