Summary of Contents for ATI Technologies RADEON 9200 MAC EDITION
- Page 1 RADEON™ 9200 MAC EDITION User’s Guide P/N 137-40722-10...
- Page 2 ATI hardware, software, or other products and documentation provided herein. ATI Technologies Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design. With respect to ATI products which this...
-
Page 3: Table Of Contents
Table of Contents Introduction ....... 1 System Requirements External Connections Related Documentation Multimedia Features Viewing 3D Graphics... - Page 4 Compliance Information ....25 FCC Compliance Information Industry Canada Compliance Statement CE Compliance Information L’Information de conformité de la CE CE-befolgungInformationen Index .
-
Page 5: Introduction
CHAPTER 1: Introduction The RADEON™ 9200 MAC EDITION represents the next generation in 3D and video acceleration for your Power Macintosh® computer. It includes flexible dual-display support for multiple combinations of CRT and Digital Flat Panel monitors. Your new graphics accelerator provides: •... -
Page 6: Related Documentation
2 Related Documentation adapter (included) to connect to the RADEON™ 9200 MAC EDITION graphics accelerator. Note: Future references to Mac OS® X in this manual are intended to be generic and inclusive of their respective versions of the Macintosh® operating systems. Related Documentation The README file summarizes the latest product revisions. - Page 7 Viewing 3D Graphics 3 • 62.5 million triangles per second transform rate. • Full Scene Antialiasing. • Bilinear, Trilinear, and Anisotropic filtering. In addition, the RADEON™ 9200 MAC EDITION brings new and exciting graphics technologies to the Macintosh® platform: is an anti-aliasing solution that raises the bar for SMOOTHVISION™...
- Page 8 4 Viewing 3D Graphics...
-
Page 9: Ati Displays Control Panel
Introduction 5 CHAPTER 2: ATI Displays Control Panel Introduction The ATI Displays control panel provides access to the advanced features that the RADEON™ 9200 MAC EDITION has to offer. Open the ATI Displays control panel using Mac OS® X Open the Apple® System Preferences. Click the ATI Displays icon. -
Page 10: Ati Displays Control Panel
A warning dialog will display if no ATI product is installed in your computer. The Support dialog provides an internet link to ATI Technologies’ web site. Click Create Apple® System Profiler Report button to generate a detailed report of the computer’s installed hardware and software. -
Page 11: Connect Your Computer To A Tv/Vcr
Mac2TV™ Video Out 7 • View computer output directly on your television with advanced flicker reduction and artifact suppression. • Connect using Composite or S-Video output capabilities. • RADEON™ 9200 MAC EDITION provides a big-screen experience for playing games, giving presentations, and browsing the Internet. -
Page 12: Enabling Mac2Tv
8 Enabling Mac2TV™ In connector of your TV/VCR. If you are using Composite, connect the supplied Video Out Adapter to the S-Video connector of the RADEON™ 9200 MAC EDITION. Then attach one end of your Composite cable to the Composite connector and the other end to the Composite In of your TV/VCR (see diagram above). -
Page 13: Optimizing Mac2Tv
Optimizing Mac2TV™ 9 Output Standard allows you to select and restrict the TV standard for your country. The default setting is NTSC/PAL which allows both standards. Black & White, when enabled, forces Black & White output. The video card produces greys instead of colors in the output signal producing sharper images and text. -
Page 14: Controls Tab
10 Optimizing Mac2TV™ Controls Tab Sharpness makes details on the TV screen sharper. Use this setting to make blurry text readable. Frozen Dot Crawl, when enabled, removes the undesirable characteristic of many Composite televisions that is seen as thin, jagged edges moving around objects on the screen. -
Page 15: Ratio/Size Tab
Optimizing Mac2TV™ 11 • Saturation is the amount of color present that distinguishes pale or washed-out colors from vivid ones. Extreme settings, will produce black & white (greyscale) output. Default button undoes all changes and sets everything to the factory default settings. -
Page 16: Using A Tv As Your Only Display
12 Using a TV as your only display Revert button undoes all changes and sets everything to the original state or last known good setting. Using a TV as your only display If you are using television display only, disconnect your monitor from your RADEON™... -
Page 17: Advanced Display Options
Advanced Display Options 13 From the ATI Displays drop down menu you can set the Preferences for the ATI Displays control panel. Here you can configure how the ATI Displays control panel starts and exits. Advanced Display Options Advanced adds even more functionality, giving you complete control over your display. -
Page 18: Display Control Tab
14 Advanced Display Options Display Control Tab Force Single Display Operation, when using a dual display video card, causes all display modes to appear as a single list of supported resolutions in the Apple® Displays Properties. Only one display is on when this feature is enabled. The default setting is Disabled. -
Page 19: Advanced Dfp Tab
Advanced Display Options 15 Advanced DFP Tab Note: The features on this tab are intended to support Digital Flat Panels (DFP) only. Enable ATI Hardware Scaler on non-Apple panels can be used with flat panels with fixed resolutions. Enabled, this feature allows you to change video modes using the ATI Scaler. -
Page 20: Performance Tab
16 ATI HELP Performance Tab The Performance tab provides advanced control settings that mat improve overall performance. Enable High Performance PCI Bus Settings may improve graphics rendering performance. Note: This feature may impact the performance of other devices installed in the computer. Make Settings Persistent makes the performance settings permanent. -
Page 21: Using Dvd And Quicktime Playback

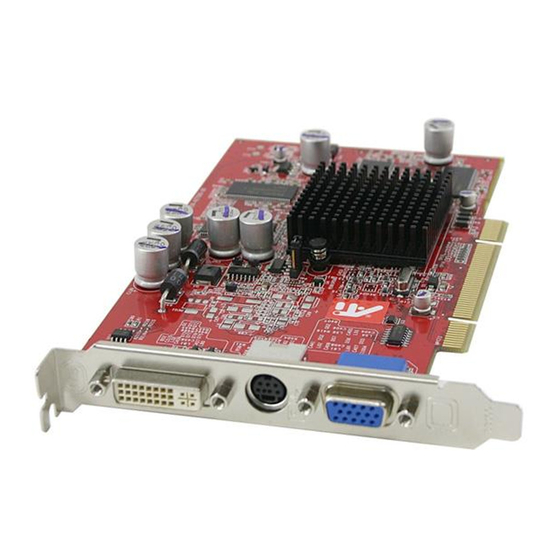

Using DVD and QuickTime® Playback 17 ® Using DVD and QuickTime Playback The RADEON™ 9200 MAC EDITION’s QuickTime® playback acceleration allows you to stretch even the smallest movies to full screen size without compromising frame rate or image quality. RADEON™ 9200 MAC EDITION’s hardware scaler maintains the original quality of your DVD or QuickTime®... - Page 22 18 Using Digital Flat Panel (DVI) VGA Monitor Port TV Out Port DVI Monitor Port VGA Connector DVI Connector Turn on your DVI flat panel and your Mac. Note: The DVI connector is hot swappable. You no longer need to shut down your computer before attaching a digital flat panel.
-
Page 23: Specifications
Video Mode Table 19 CHAPTER 3: Specifications Video Mode Table The video mode table below lists the color depth capabilities for the supported resolutions on your RADEON™ 9200 MAC EDITION. Please consult your monitor’s specifications to determine which resolutions are available with your display. Supported Modes Display Resolution Maximum Refresh... -
Page 24: Digital Flat Panel
20 Video Mode Table Supported Modes Display Resolution Maximum Refresh 1920 X 1200 1920 X 1440 2048 X 1152 2048 X 1280 2048 X 1536 The minimum refresh rate for the above modes is 60Hz. Digital Flat Panel Digital Display Mode (at any Bit 1920 x 1200* Depth) *Using a reduced blanking interval compatible with Apple®’s Cinema HD... -
Page 25: Glossary
CHAPTER 4: Glossary Alpha Blending When an image has an alpha value for each pixel, this tells how much to blend the colors from the image with the background colors. The lower the alpha values the more transparent the image looks. Anti-aliasing Method used to remove the jagginess of an image. - Page 26 Bilinear Filtering When texture mapping is performed an image can become very “blocky” or “pixelated” when the texture is viewed close up. Bilinear filtering samples four texture pixels, takes the weighted average of these pixels and applies the average of these “texels”. This blended color is used to provide a smoother looking texture.
- Page 27 HYPER Z™ A memory bandwidth saving technology that boosts rendering performance. HYPER Z™ is comprised of Hierarchical Z, Z Compression, Fast Z Clear and Early Z Test. MIP Map Multum In Parvum (Latin) means “many in one.” It is a method of increasing quality of a texture map by storing multiple resolutions of the same image and dynamically switching between them depending on the size and depth of the object being textured.
- Page 28 Specular Highlight The bright, usually small, intense light reflected from a 3-D surface with a high refraction value. Texture Mapping Mapping, or placing, an image onto an object. Images of realistic surfaces are placed on 3D models to create a richer and more complex visual effect. Trilinear Filtering Sampling method used to produce the most realistic looking 3D objects.
-
Page 29: Compliance Information
Compliance Information FCC Compliance Information This RADEON™ product complies with FCC Rules part 15. Operation is subject to the following two conditions • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. -
Page 30: Ce Compliance Information
CE Compliance Information EMC Directive 89/336/EEC and Amendments 92/31/EEC and 93/68/EEC, for Class B Digital Device. EN 55022:1998/CISPR 22:1997, - Class B - Limits and Methods of Measurement of Radio Disturbance Characteristics of Information Technology Equipment. EN55024:1998/CISPR 22:1997, - Information Technology Equipment - Immunity Characteristics - Limits and Methods of Measurement. -
Page 31: Index
Index Numerics 3D Graphics ADVANCED DISPLAY OPTIONS Anti-Flicker Apple ® System Profiler Report Apple Displays using VGA adapter Aspect Ratio ATI Displays ATI Displays Control Panel ATI Displays Preferences ATI Guide accessing description ATI HELP Black & White Brightness change your font size Compliance Information Compliance information Low Voltage Directive for TV-tuner-equipped products... - Page 32 External Connections Extra Set up Force Single Display Operation Frozen Dot Crawl Glossary Graphic Card features Hard Sync to TV HYPER Z™ Mac2TV ™ Video Out Monitor Resolution 2D video mode table Multimedia Features Open the ATI Displays Optimizing Mac2TV Optimizing Mac2TV ™...
- Page 33 Using DVD and QuickTime® Playback VERSAVISION™ Video Card features Video Output Viewing 3D Graphics Viewing Text on Television...
