Summary of Contents for Ryobi R18FG35E

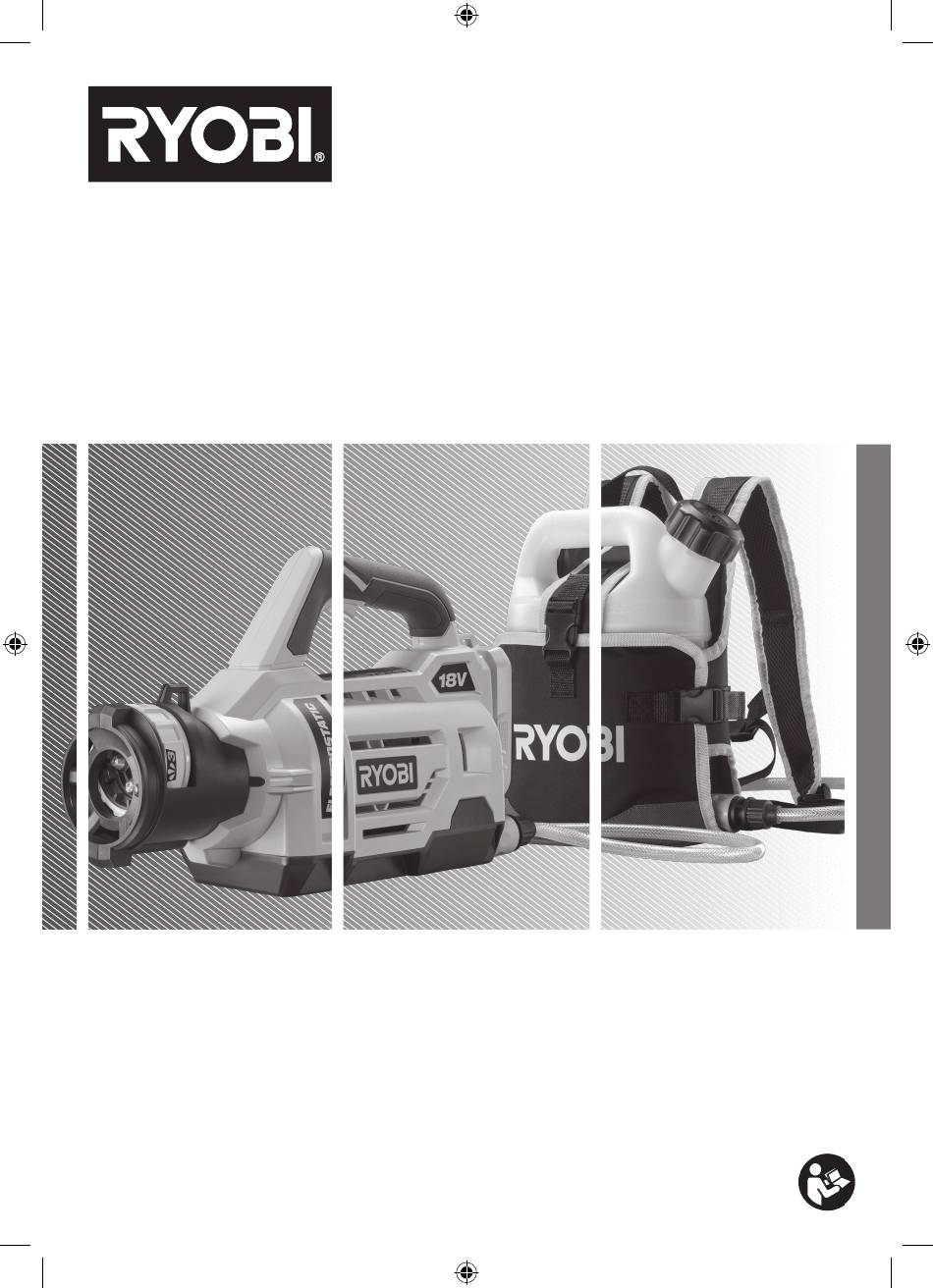

  • Page 1 FRONT PAGE R18FG35E...
  • Page 2 ■ When operating a power tool outdoors, use an IMPORTANT! extension cord suitable for outdoor use. Use of a It is essential that you read the instructions in this manual cord suitable for outdoor use reduces the risk of electric before assembling, operating, and maintaining the shock.
  • Page 3 tool or these instructions to operate the power tool. FOGGER SAFETY WARNINGS Power tools are dangerous in the hands of untrained users. WARNING! Do not use this product with any flammable chemicals or any chemical containing alcohol, sodium ■ Maintain power tools and accessories. Check for hypochlorite, chlorine, vinegar, chlorine dioxide, hydrogen misalignment or binding of moving parts, breakage peroxide,...
  • Page 4: Maintenance

    come in contact with the eyes, wash immediately with ■ Injuries may be caused, or aggravated, by prolonged clean water. If irritation persists, immediately seek use of a tool. When using any tool for prolonged periods, medical help. ensure to take regular breaks. ■...
  • Page 5 ■ Wipe the outside of the fogger with a clean, dry cloth. Do not expose the product to rain or damp condition. DISPOSAL ■ Never dispose of residual chemicals or contaminated Do not aim the nozzle towards rinsing solutions in waterways, drains, sewers, street persons, animals, and electrical gutters, or manholes.

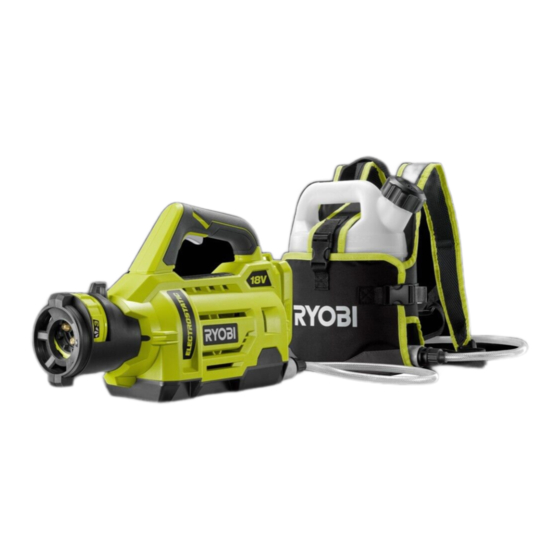

  • Page 6 R18FG35E On/Off switch Nozzle wrench Battery port Electrostatic On/Off button Hang tag Nozzle Threaded nozzle clamp Nozzle head spacer Washers Nozzle dial Hose Refillable container Harness Chemical solution Operator’s manual Battery pack Charger Know your product...
  • Page 7 Always wear safety goggles or safety Read and follow the instructions Remove the tank cap. glasses with side shields, a respiratory provided by the chemical manufacturer mask, non-slip, heavy-duty protective for preparing the chemical solution. gloves, protective clothing, and non- slip safety footwear.
  • Page 8 Operating the Replacing the Cleaning the p.11 p.13 product nozzle product Storing the p.16 product...
  • Page 9: Operating The Product

    OPERATING THE PRODUCT 1. Install the battery pack. Make sure that the latches on the battery pack snap in place. 2. Press the trigger to build up pressure and release mist. NOTE: Twist the nozzle to adjust the flow rate. WARNING: Do not adjust the nozzle while pressing the trigger.
  • Page 10 WARNING: Always check the instructions from the chemical manufacturer for recommended dilution ratios. Do not operate the product with undiluted chemicals. WARNING: Wear the harness on your back while operating the product. Operation...
  • Page 11: Replacing The Nozzle

    REPLACING THE NOZZLE 1. Press the latches on the battery pack to remove it from the product. 2. Remove the nozzle dial. WARNING: Never move metal lever if the nozzle dial is not installed. Moving the metal lever without the nozzle dial dislodges the ball bearing and damages the nozzle mechanism.
  • Page 12 5. Replace the nozzles in the nozzle head spacer. Reinstall the threaded nozzle clamp, the nozzle head spacer, and the washers. 6. Insert and rotate the nozzle wrench clockwise to tighten the threaded nozzle clamp. 7. Reinstall the nozzle dial into the product.
  • Page 13: Cleaning The Product

    CLEANING THE PRODUCT 1. Press the latches on the battery pack to remove it from the product. 2. Remove the filler cap. Make sure that the seal inside the filler cap is not dislodged. 3. Pour the chemical solution into a suitable container.
  • Page 14 6. Press the trigger to release mist into a suitable container. NOTE: Release the mist until the product is empty. 7. Refill the product with clean water. NOTE: Release the mist until the product is empty. 8. Allow all the parts to dry, then replace the filler cap.
  • Page 15 NOTE: Replace worn out filler caps and rubber seals. WARNING: Do not use water to clean the body of the product. Maintenance...
  • Page 16: Storing The Product

    STORING THE PRODUCT 1. Press the latches on the battery pack to remove it from the product. NOTE: Make sure that all parts are clean and dry before storing the product. WARNING: Make sure that the refillable tank is empty and clean. 2.
  • Page 17: Product Specifications

    Electrostatic fogger / Chemical sprayer with a standardised test and may be used to compare Model R18FG35E one tool with another. They may be used for a preliminary assessment of exposure. Pump type: Piston pump...
  • Page 20 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. © 2020 Techtronic Cordless GP 961087283-01 Techtronic Industries GmbH...
