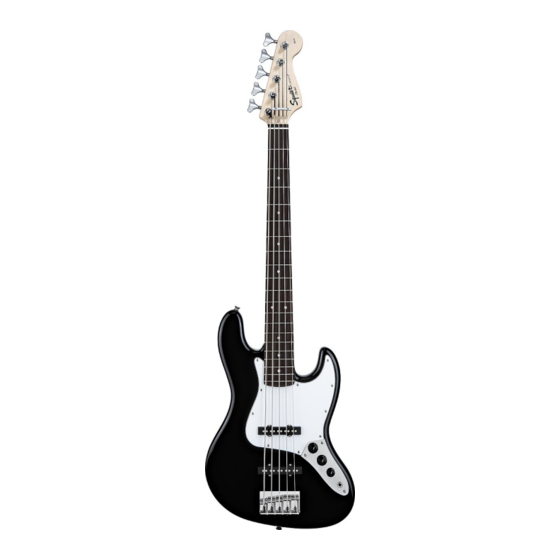

Squier Affinity J Bass V
Loc # Description
1
Standard Tuners (set of 5)
2
Bone Nut (blank) (2)
3
Strap Buttons (2)
4
Pickguard (white)
4a
Pickguard Screws
5
J Bass Neck Pickup
6
J Bass Bridge Pickup
7-9
500K Solid Shaft Pot
7-9a
Volume/Tone Knobs (set of 3)
10
Output Jack
11
Control Plate (chrome)
12
Bridge Assembly
Rosewood- m/n 0301575xxx
Part Number
007-3783-000
099-4920-000
099-4915-000
007-3785-000
099-4923-000
007-3784-000
007-3784-000
007-3786-000
007-3787-000
007-3788-000
007-3790-000
007-3789-000
Last Revision Date: 8/28/2008
