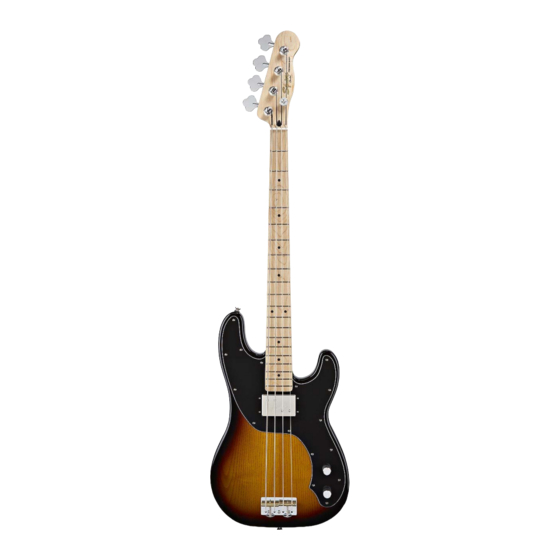

Squier Vintage Modified "Tele" P Bass
Loc # Description
1
Standard Tuners (set of 4)
2
Bone Nut (blank) (2)
3
Vintage String Guide
4
Strap Buttons (2)
5
Pickguard
5a
Pickguard Screws
6
Humbucker Pickup
7
1 Meg Solid Shaft Pot (Volume)
8
1 Meg Solid Shaft Pot (tone)
7-8a
Volume/Tone Knobs (ea) (chr)
9
Output Jack
9a
Jack Plate
10
Bridge Assembly
Rosewood- m/n 0326800505
Part Number
007-3794-000
099-4920-000
099-4913-000
099-4915-000
007-3881-000
099-4923-000
007-3880-000
007-3884-000
007-3885-000
007-3883-000
007-2892-000
006-2416-000
007-3882-000
Last Revision Date: 5/30/2008
Page 1 of 2
