Summary of Contents for SMARTWINGS INS-C035

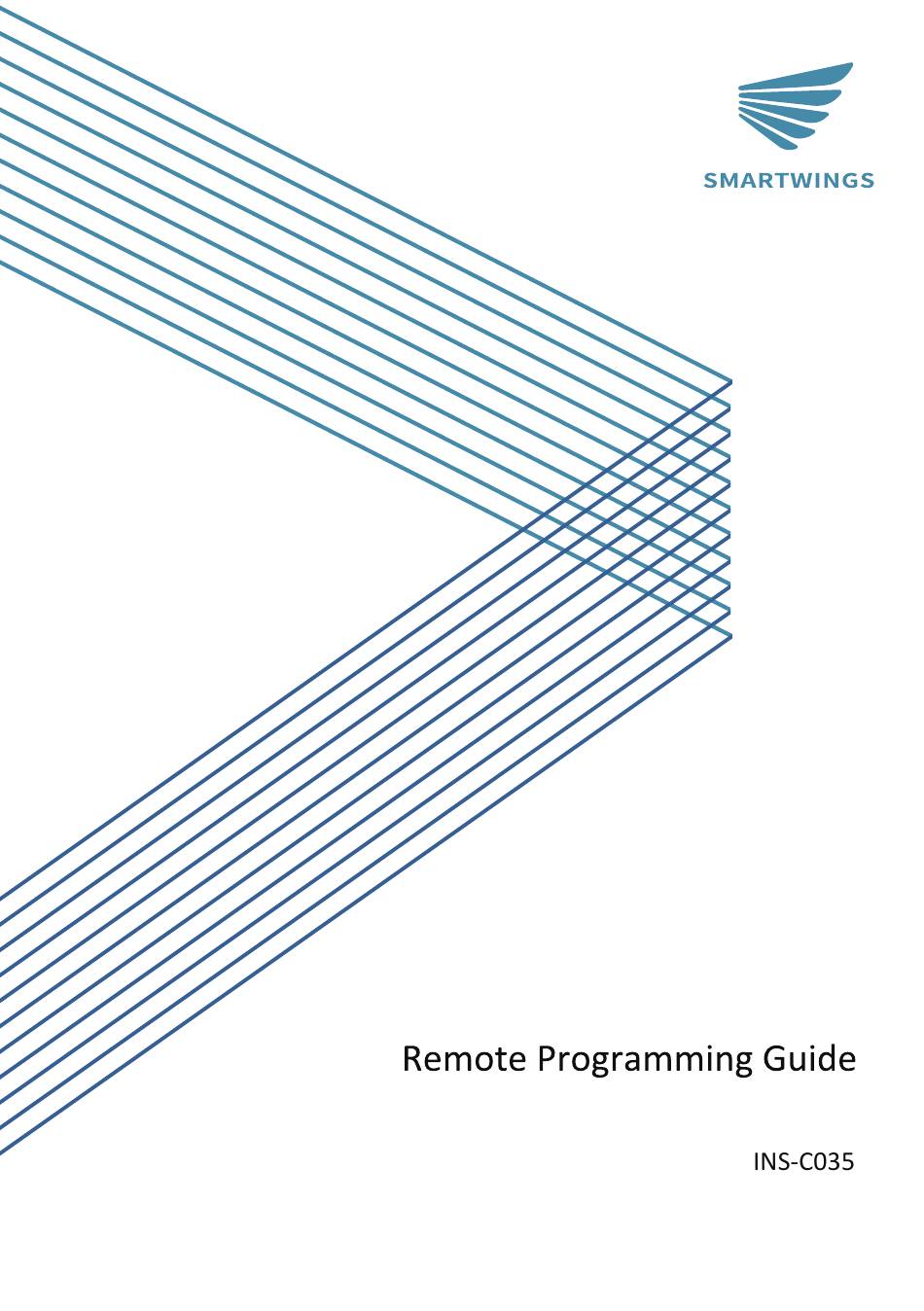

  • Page 1 A-01 Feb 2023...
  • Page 3: Table Of Contents

    1.Button Instructions ............1 2.Pairing ................2 3.Switch Rotating Direction (Optional) .......3 4.Setting Open and Close Limits ........4 5.Favorite Positions ............5 6.Adjust Limits ..............6 7.Pair / Unpair Additional Emitter ........7 8.Deleting All Limits ............8 9.Weak-current Switch Modes (Optional) ....9 10.Run/Stop by Pulling Fabric ........11 11.Speed Regulation .............12...
  • Page 4: Button Instructions

    Button Instructions OPEN CLOSE (Optional) RJ11-6P6C White=COM Red=STOP Green=UP Black=DOWN...
  • Page 5: Pairing

    Pairing Press & HOLD Motor Button(2sec) Note: 1 flash and 1 beep 1 flash and 1 beep 5 flashes and 3 beeps...
  • Page 6: Switch Rotating Direction (Optional)

    Switch Rotating Direction (Optional) Method one: To check motor direction, quickly press the IF PRESS OPEN AND MOTOR IS CLOSED-Press OPEN or CLOSE button to move the shade and hold down the OPEN and CLOSE button initially. Press STOP to pause the shade simultaneously until the motor 5 flashes and 3 operation.
  • Page 7: Setting Open And Close Limits

    Setting Open and Close Limits Press OPEN once, the curtain will open until stop against obstacle, then press CLOSE once, the curtain will close until stop against obstacle. The motor will flash 5times and beep 3 times, the limit switch has been set successfully. (To SET Open limit) (To SET Close limit) Press OPEN once.
  • Page 8: Favorite Positions

    Favorite Positions Follow the below steps to set a favorite position . The favorite position is used to set a custom stopping point between the OPEN and CLOSE limits. (1 favorite position per shade motor) Press OPEN or CLOSE to move shade to desired favorite position position...
  • Page 9: Adjust Limits

    Adjust Limits Follow the below steps to adjustthe OPEN and CLOSE limits if required. (SET Open Limit) Press OPEN & STOP (5sec) Press OPEN & STOP (2sec) slow flash once and 5 flashes and 3 beeps long beep once (SET Close Limit) Press CLOSE &...
  • Page 10: Pair / Unpair Additional Emitter

    Pair / Unpair Additional Emitter Note: Select channel on existing remote to be copied Select channel on new remote where existing channel will be copied Note: 5 flashes and 3 beeps Note: 1 flash and 1 beep Note: 1 flash and 1 beep •...
  • Page 11: Deleting All Limits

    Deleting All Limits Press P (1 flash and 1 beep) , CLOSE (1 flash and 1 beep) , and P (5 flashes and 3 beeps) , all limits are removed. Press CLOSE (1sec) Note: 1 flash and 1 beep Note: 1 flash and 1 beep Note: 5 flashes and 3 beeps...
  • Page 12: Weak-Current Switch Modes (Optional)

    Weak-current Switch Modes (Optional) 1 Double button pushbutton switch mode (Factory default) Press and hold motor button for 10S (3 flashes), release button and beeps 3 times, press P once (1 flash and 1 beep), then press button for 2S (5 flashes and 3 beeps), the mode has been successfully switched. Press &...
  • Page 13 Weak-current Switch Modes (Optional) 3 Electronic switch mode Press and hold P1 button for 10 S (3 flashes ) release button and beeps 3 times, press P2 for 3 times (3 flashes and 3 beeps), then press P1 button for 2S (5 flashes and 3 beeps), the mode has been successfully switched.
  • Page 14: Run/Stop By Pulling Fabric

    Run/Stop by Pulling Fabric Do the following steps to manually open/close the shades if needed. *The factory default mode is ON. Press &HOLD Motor Button(10sec) 3 flashes, release button Note: 5 flashes and 3 beeps and 3 beeps • Repeat the same process will activate the function.
  • Page 15: Speed Regulation

    Speed Regulation Note: 1 flash and 1 beep Press OPEN: Press OPEN: If the motor beeps twice and the indicator light flashes rapidly, its' 1 flash and 1 beep 5 flashes and long beep once speed has reached the maximum or minimum level.
  • Page 16: Reset To Factory Mode

    Reset to Factory Mode To reset the shade motor to factory settings with no stored limits locate the P1 button on the motor head . Hold the botton button for 14 seconds . ( 4 flash 4 beeps ) 1 flash 1 flash 1 flash 1 flash &...
