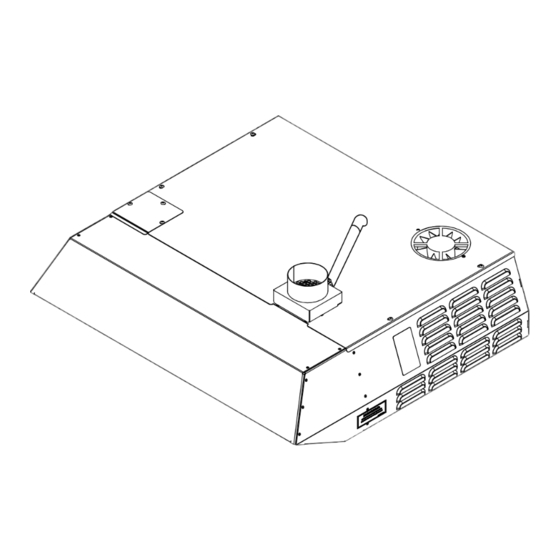

CE Integrated Ventilation
System (IVS-230)
Model#
IVS-230-BCE-L (Blue/White Graphic Panel)
IVS-230-BCE-R (Blue/White Graphic Panel)
Fits the following Duke
Proofer/Oven Models:
TSC-6/18
TSC-3/9
CAUTION:
WARNING for CA residents: go to www.dukemfg.com/prop65 for prop 65 warning
Please read this manual completely before attempting
to install, operate or service this equipment
This manual is Copyright © 2021 Duke Manufacturing Co. All rights reserved.
Reproduction without written permission is prohibited. Duke is a registered
trademark of the Duke Manufacturing Co.
Installation and
Operation Manual
P/N 512425
Rev G 05/22/2023
Advertisement
Table of Contents
Related Manuals for Duke IVS-230
Summary of Contents for Duke IVS-230
- Page 1 WARNING for CA residents: go to www.dukemfg.com/prop65 for prop 65 warning This manual is Copyright © 2021 Duke Manufacturing Co. All rights reserved. Reproduction without written permission is prohibited. Duke is a registered P/N 512425 trademark of the Duke Manufacturing Co.
-
Page 2: Table Of Contents
Operations and Installation Instructions for: CE Integrated Ventilation System TABLE OF CONTENTS Important Safety Instructions ..........................2 Required Tools - Not provided ........................... 4 Unpacking Instructions ............................5 Insuring IVS is set up your Oven ........................6 Removing Old Oven Shroud ..........................7 Connecting Oven Vent and Electrical to IVS ...................8-10 Verifying Proper connection of Oven to Building Structure ............ - Page 3 • This equipment should be serviced by qualified personnel only. Contact the nearest Duke authorized service facility for adjustment or repair. • Do not block or cover any openings on the unit.
-
Page 4: Required Tools - Not Provided
Operations and Installation Instructions for: CE Integrated Ventilation System Tools required (NOT PROVIDED) for this installation Hammer #2 Phillips Screw Driver 3/32” Hex Key 7/16” and 5/16” Crowbar Pry-Bar Nut Driver 4 “ Metal Duct and Clamps... -
Page 5: Unpacking Instructions
Operations and Installation Instructions for: CE Integrated Ventilation System UNPACKING AND INSTALLATION INSTRUCTIONS Step 1: Unpacking (4) Screws a) Inspect crate for any damage b) Carefully remove outer crating c) Remove (4) screws from the top using a hammer and crowbar/pry of the hood. -
Page 6: Insuring Ivs Is Set Up Your Oven
Operations and Installation Instructions for: CE Integrated Ventilation System INSURE IVS IS SET UP TO MATCH THE DOOR OPENING OF YOUR OVEN Step 2: IVS should be mounted so that the Blower Motor is above the handle side of the door in order to efficiently capture steam as the Oven door is opened Right side handle door (Left side hinges) Left side handle door (Right side hinges) -
Page 7: Removing Old Oven Shroud
Operations and Installation Instructions for: CE Integrated Ventilation System REMOVAL AND INSTALLATION OF OVEN SHROUD Step 3: Remove Old Oven Shroud Step 4: Installation of the IVS Hood a) Set new IVS on top of baking center a) Remove 6 screws, 3 on the left side and 3 on the right side of shroud, SAVE SCREWS b) Align and install in three screws in front edge of b) Remove 3 screws from the inner front side of... -
Page 8: Connecting Oven Vent And Electrical To Ivs
Operations and Installation Instructions for: CE Integrated Ventilation System INSTALLATION OF NEW SHROUD - continued d) Remove 2 protective wire caps Step 5: Connect Oven Vent & Electrical to IVS a) Loosen hex set screw on Oven Vent Cap e) Connect motor wire “A” and “BRN1” each to an “ELC0191”... - Page 9 Operations and Installation Instructions for: CE Integrated Ventilation System INSTALLATION OF NEW SHROUD - continued g) Place wires between Oven Motor and Motor j) Slide vent tube through hole in top panel. Con- Capacitor. nect vent tube with inner liner tube to oven and tighten clamp h) Zip-tie wires in 3 places Outer Hose...
-
Page 10: Verifying Proper Connection Of Oven To Building Structure
Operations and Installation Instructions for: CE Integrated Ventilation System INSTALLATION OF NEW SHROUD - continued Step 6: Connect IVS to Exhaust Connect the IVS blower IVS Blower Outlet outlet as required per local codes and/or other appli- cable codes using 4” rigid metal duct work. - Page 11 Operations and Installation Instructions for: CE Integrated Ventilation System INSTALLATION OF NEW SHROUD - continued INSTALLATION OF WALL BRACKETS WARNING RISK OF ELECTRIC SHOCK a. Mount the Wall Mounting Bracket with screws provided with the Proofer Oven. THIS RESTRAINING DEVICE MUST ALWAYS BE b.
-
Page 12: Care And Cleaning
Wipe down the interior and exterior of the IVS with warm water and mild detergent using a soft cloth. TROUBLESHOOTING There are no user serviceable parts on the DUKE IVS. If a malfunction occurs, ensure unit is plugged in then check all switches and circuit breakers. If the malfunction still exists, contact your Duke Manufacturing Company authorized service agent or call 1-800-735-3853. -
Page 13: Product Specifications
Duke Manufacturing has designed the IVS (Integrated Ventilation System) to efficiently vent excess steam from the baking process, when installed on Duke proofer/oven units. The blower is factory installed to accommodate either right-handed or left-handed oven door locations. If required, the blower may be... -
Page 14: Notes
Operations and Installation Instructions for: CE Integrated Ventilation System NOTES... -
Page 15: Customer Assistance
Operations and Installation Instructions for: CE Integrated Ventilation System CUSTOMER ASSISTANCE To aid in reporting this unit in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. MODEL NUMBER: SERIAL NUMBER: DATE OF PURCHASE:... - Page 16 Operations and Installation Instructions for: CE Integrated Ventilation System Page Left Blank Duke Manufacturing Co. Phone: 314-231-1130 Toll Free: 1-800-735-3853 2305 N. Broadway www.dukemfg.com Fax: 314-231-5074 St. Louis, MO 63102...
