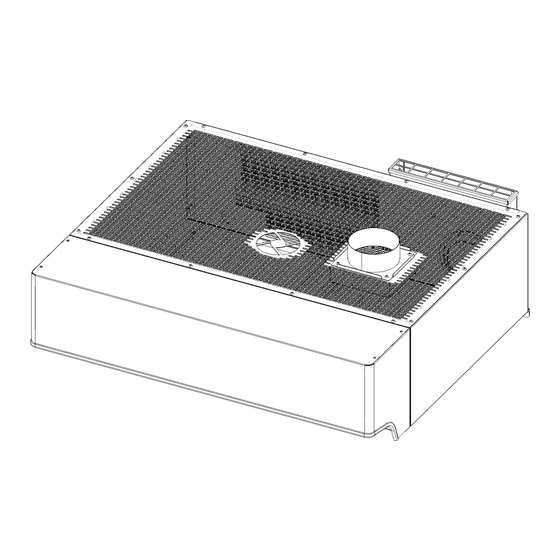

FlexBake 5™ Integrated
Ventilation System
Model#
IVS-208-FB5
IVS-CE-FB5
CAUTION:
Please read this manual completely before attempting
to install, operate or service this equipment
This manual is Copyright © 2019 Duke Manufacturing Co. All rights reserved.
Reproduction without written permission is prohibited. Duke is a registered
trademark of the Duke Manufacturing Co.
Installation and
Operation Manual
P/N 514109
REV B 05/07/2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Duke FlexBake 5 IVS-208-FB5
Summary of Contents for Duke FlexBake 5 IVS-208-FB5
- Page 1 Please read this manual completely before attempting to install, operate or service this equipment This manual is Copyright © 2019 Duke Manufacturing Co. All rights reserved. Reproduction without written permission is prohibited. Duke is a registered trademark of the Duke Manufacturing Co.
-
Page 2: Table Of Contents
Installation and Operation of: FlexBake 5™ Integrated Ventilation System TABLE OF CONTENTS Important Safety Instructions ..........................2 Specifications ................................4 Wire Schematic................................ 5 Unpacking Instructions ............................6 Removal of Old Facade ............................6 Installation of New IVS Hood ..........................8 Configure IVS Hood to FlexBake .........................11 Oven Start Up ................................12... - Page 3 • This equipment should be serviced by qualified personnel only. Contact the nearest Duke authorized service facility for adjustment or repair. • Do not block or cover any openings on the unit.
-
Page 4: Specifications
Installation and Operation of: FlexBake 5™ Integrated Ventilation System SPECIFICATIONS 336mm 13.2in 946mm 37.2in 334mm 296mm 282mm 13.2in 11.7in 11.1in 879mm 34.6in BLOWER SPECIFICATION: Static Pressure Flow-rate (Inches of Water) /min 8.64 6.82 2.97 ELECTRICAL SPECIFICATIONS: Commercial Motor Model Cooking 208V a.c. -
Page 5: Wire Schematic
Installation and Operation of: FlexBake 5™ Integrated Ventilation System WIRING SCHEMATIC 208 Volt Oven Conv. Blower Cool Down Drip Valve Top Vent Blower Bottom Vent Damper BLK 208V RED 230V WHT COM Option IPX Cooling Top Vent Damper 230 Volt Oven Conv. -
Page 6: Unpacking Instructions
Installation and Operation of: FlexBake 5™ Integrated Ventilation System Step 4 UNPACKING INSTRUCTIONS Apply foam tape to underside of IVS on the flanges as shown. Foam tape is packed along with the IVS Tools required (NOT PROVIDED) for this unit. installation •... - Page 7 Installation and Operation of: FlexBake 5™ Integrated Ventilation System Step 3 Step 7 Remove the Vent Box Cover by removing the 9 (#8- Remove the 6 (Tek) screws along each side panel 32) screws from the vent box cover on back of unit. and remove the Facade.
-
Page 8: Installation Of New Ivs Hood
Installation and Operation of: FlexBake 5™ Integrated Ventilation System INSTALLATION OF NEW IVS HOOD Step 1 Step 3 Install the IVS Back Panel loosely with the 7 screws Install the IVS Vent Box Cover with 9 (#8-32) (Tek screws previously removed in Step 6.), as screws. - Page 9 Installation and Operation of: FlexBake 5™ Integrated Ventilation System Step 6 Step 8 Carefully set the IVS assembly on top of the oven Install the 6 screws (3 per side)(Tek screws aligning the IVS duct with the oven Exhaust Duct previously removed in Step 7.) flanges.
- Page 10 Installation and Operation of: FlexBake 5™ Integrated Ventilation System Step 11 Step 14 Place the IVS blower adaptor gasket on to the Align the IVS Cover holes and install the 14 screws adaptor outlet, as shown. (#8-32) to secure it. IVS Blower Adaptor Gasket Step 12...
-
Page 11: Configure Ivs Hood To Flexbake Tm
Installation and Operation of: FlexBake 5™ Integrated Ventilation System Step 2 Press the and enter PIN 2345 press This oven appliance must be secured to building structure. A restraining device kit (#153586) was Step 3 provided with the FlexBake 5™ unit to limit the Press the top tool bar will display : movement of the appliance without depending... -
Page 12: Oven Start Up
Wipe down the interior and exterior of the IVS with warm water and mild detergent using a soft cloth. TROUBLESHOOTING There are no user serviceable parts on the Duke IVS. If there is a malfunction, contact your Duke Manufacturing authorized service agent or call 1-800-735-3853.
