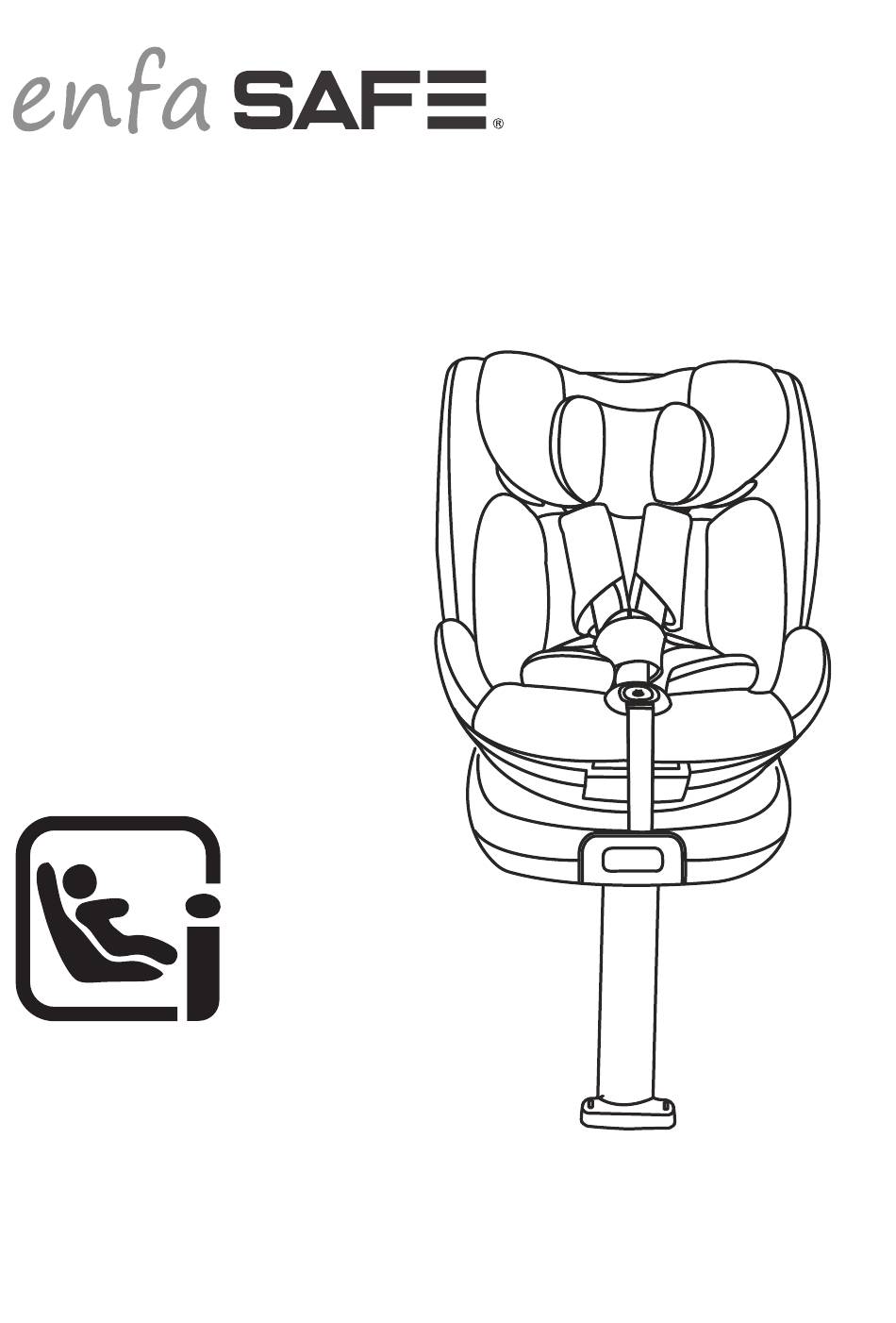

- Page 1 Superia i-Size 360 Car Seat Instruction Manual ECE R129/03 40 -150 cm IMPORTANT: RETAIN FOR FUTURE REFERENCE READ CAREFULLY...
-
Page 3: Table Of Contents
1.Contents 1. CONTENTS 2. COMPONENTS 3. PRODUCT INFORMATION 4. VEHICLE INFORMATION 5. WARNINGS 6. CAR SEAT STAGES 7. ADJUSTING CAR SEAT 7.1. ADJUSTING BUCKLE 7.2. ADJUSTING HARNESS 7.3. ADJUSTING HEADREST 7.4. ADJUSTING RECLINE POSITIONS 7.5. NEWBORN CUSHION INSERT 7.6. ROTATING THE CAR SEAT 7.7. -
Page 4: Components
2. Components A Handle for the headrest B Headrest C Harness belt D Newborn cushion E Cover for the buckle F Button for the 5-points harness system G Harness Adjustment belt H Indicator for rotation button I Reclining lever J Buckle K Shoulder pad L Shoulder belt guider M 360°... -
Page 5: Product Information
3. Product Information This is an approved i-Size 360° rotating car seat according to UN Regulation No. 129, for use in i-Size compatible vehicle seating positions as indicated by the vehicle manufacturer in the vehicle user's manual. This car seat has been approved according to European safety standard ECE R129/03 as suitable for infants from 40-105cm, birth - approx. -
Page 6: Vehicle Information
4. Vehicle Information Read the car manual rst and check whether the vehicle car seat is equipped with ISOFIX attachment xed anchor points, and check the size of recommended ISOFIX attachment constraints on the system match the ISOFIX attachments on this car seat. The car seat must not be used on the position where an airbag has been activated (airbags can be fatal to children). -
Page 7: Warnings
5. Warnings IMPORTANT! READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE The instruction manual should be kept safely with the child restraint system for its life period. The correct tting of the ISOFIX attachment anchoring systems, Support Leg and 3-point belt is of vital importance for the safety of your child. IMPORTANT: DO NOT use in forward facing mode before the child exceeds a height of 60cm, approx. - Page 8 5. Warnings WARNING! The safety of the seat can only be guaranteed if it is used by the original owner. WARNING! We advise you strongly not to use a second-hand product, as you do not know what has happened to it. WARNING! Ensure that all luggage and objects likely to cause injury in the event of an accident are properly secured.
-
Page 9: Car Seat Stages
6. Car Seat Stages 40 - 60cm Newborn cushion 40 - 75cm 60 - 105cm Height Size Facing Direction 40-105cm ISO/R2 Rearward 76 - 105cm 76-105cm ISO/F2X Forward 100-150cm ISO/B2 100 - 150cm... -
Page 10: Adjusting Car Seat
7. Adjusting the Car Seat 7.1. ADJUSTING BUCKLE Open buckle: Press red button until buckle latches are released from the buckle ( g. 1, 2). Lock buckle: Guide the two buckle latches together ( g. 3), putting them into the harness buckle house ( g. -
Page 11: Adjusting Headrest
7. Adjusting the Car Seat Loosen harness: Press the centre harness adjuster (F) and at the same time pull both shoulder belts forwards ( g. 9). DO NOT pull on the shoulder pads. WARNING! Do not add additional items such as blankets or padded clothing. Bulky items can lead to incorrect harness tightening. -
Page 12: Adjusting Recline Positions
7. Adjusting the Car Seat 7.4. ADJUSTING RECLINE POSITIONS Pull the recline lever (I) located at the base of the seat, and select a position suitable for the childs size ( g. 14). 76-150cm 40-105cm 40-105cm 76-105cm... -
Page 13: Newborn Cushion Insert
7. Adjusting the Car Seat 7.5. NEWBORN CUSHION INSERT When the height of the baby is 40-75cm, the newborn cushion (D) must be used. Place the new born cushion in the car seat, place the two shoulder pads on the new born cushion, and nally cover the buckle cushion. -
Page 14: Remove And Install Harness
7. Adjusting the Car Seat 7.7. REMOVE AND INSTALL HARNESS 1. Open the compartment at the rear of the seat and unhook the shoulder pad straps from the connecting piece ( g. 22, 23). 2. Pull out both the shoulder pads and their two shoulder belts from the slots ( g. -
Page 15: Isofix Installation
7. Adjusting the Car Seat 7.8. ISOFIX INSTALLATION 1. Locate the ISOFIX anchor points on the vehicle ( g 30). 2. On each side of the seat, squeeze the ISOFIX buttons and fully extend the ISOFIX connectors ( g. 31, 32). 3. -
Page 16: Support Leg Installation
7. Adjusting the Car Seat 7.9. SUPPORT LEG INSTALLATION 1. Remove the Support leg (N) from the storage bin on the base of the car seat. Press the Support leg upper adjustment button (O) to extend the top of the Support leg over the edge of the vehicle car seat until the indicator is green. -
Page 17: Installation
8. Installation 8.1 SUITABLE FOR CHILDREN 40-105cm REARWARD FACING INSTALLATION USING ISOFIX AND SUPPORT LEG 1. Firstly lower the Support Leg from the bottom storage compartment in the car seat base. Press upper Support leg adjustment button (O) to release and set Support leg. -
Page 18: Suitable For Children 76-105Cm / Forward Facing
8. Installation 8.2 SUITABLE FOR CHILDREN 76-105cm FORWARD FACING INSTALLATION USING ISOFIX AND SUPPORT LEG IMPORTANT! DO NOT use forward facing before the child’s height is 76cm. 76-105cm WARNING! Once the car seat is installed, if another recline position is selected, you should repeat the car seat installation steps described below to ensure a proper installation in this new position. -
Page 19: Suitable For Children 100-150Cm / Forward Facing
8. Installation 8.3 SUITABLE FOR CHILDREN 100-150cm FORWARD FACING INSTALLATION USING ISOFIX AND 3-POINT SEAT BELT 1. Remove the harness when using for children 100-150cm (see section 7.7). 2. Fold away the Support leg, press the Support leg adjustment button and pull the Support leg up (see section 7.9). 3. -
Page 20: Suitable For Children 100-150Cm
8. Installation 8.4 SUITABLE FOR CHILDREN 100-150cm FORWARD FACING INSTALLATION USING 3-POINT SEAT BELT ONLY 1. Remove the harness when using for children 100-150cm (see section 7.7). 2. Fold away the Support leg, press the Support leg adjustment button and pull the Support leg up (see section 7.9). 3. -
Page 21: Cleaning
8. Installation 8.4 SUITABLE FOR CHILDREN 100-150cm (CONTINUED) FORWARD FACING INSTALLATION USING 3-POINT SEAT BELT ONLY FOR THE SAFETY OF YOUR CHILD, BEFORE EVERY JOURNEY IN THE CAR CHECK: - the child safety seat is engaged on both sides with the ISOFIX connectors in the ISOFIX attachment points and that both buttons are green. -
Page 22: Product Care
10. Product Care - All important parts of the car seat should be checked regularly to make sure they are not damaged. - All mechanical components must function properly. - It is absolutely essential to ensure that the car seat is not stuck between hard objects such as vehicle doors, seat rails etc. - Page 24 Due to variation in style and design the illustrations used in this instruction manual are generic. Variation in design may occur in the images shown. Supplied by EUROACTIVE HK. LTD,, 79/ 80 Furze Road, Sandyford Business Estate, Dublin 18. Ireland International House, 12 Constance Street, London, E16 2DQ, United Kingdom A3/ 3Fl, West Wing TST Centre, 66 Mody Road, TST East, Kowloon, Hong Kong Customer Service:...
