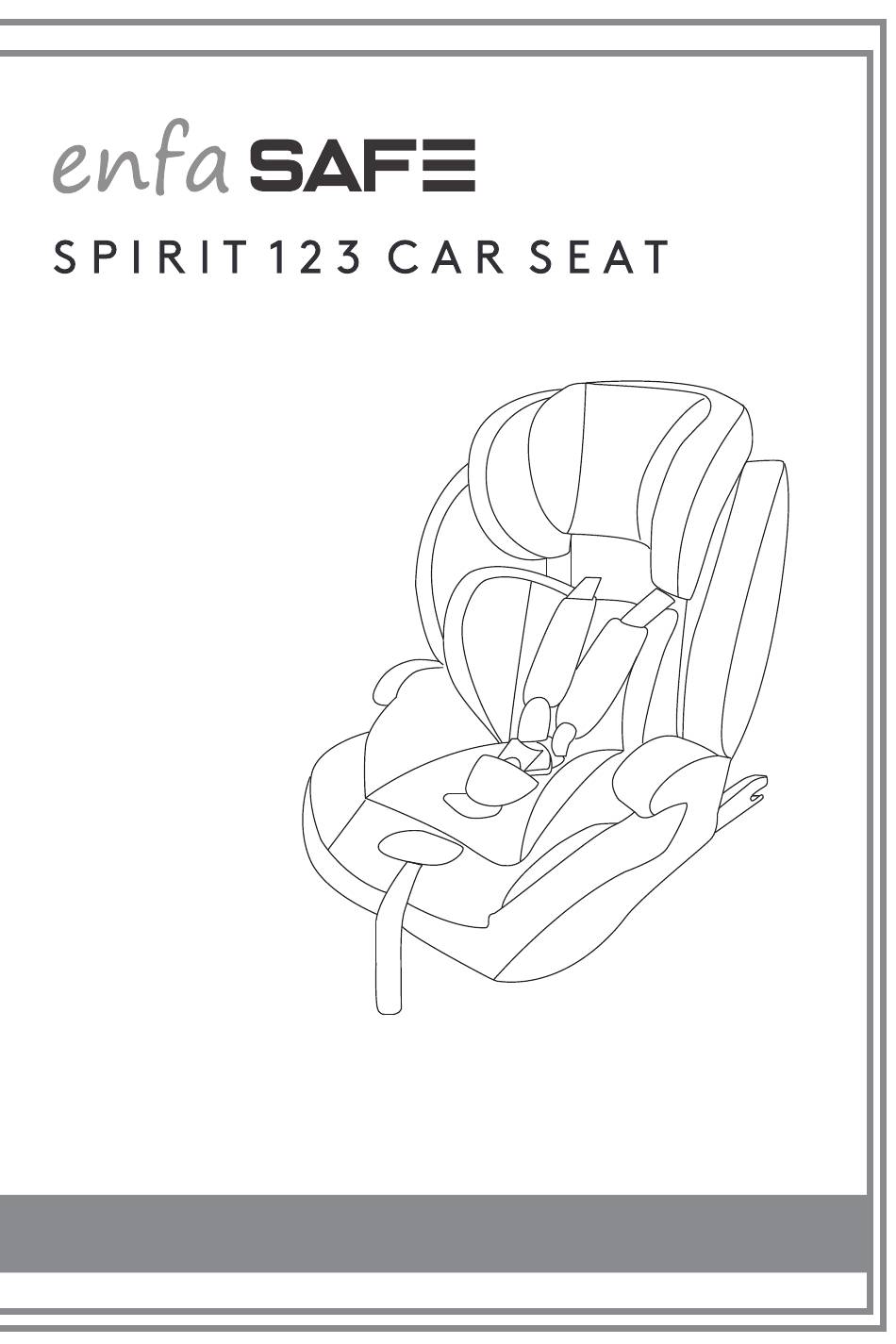

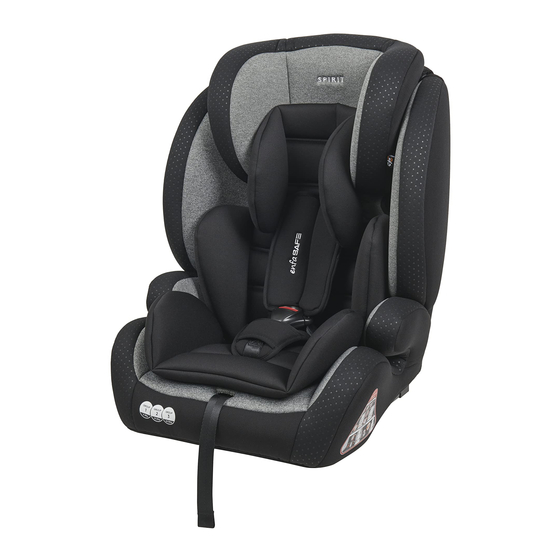

  • Page 1 Instruction Manual Group 1/2/3 9-36kg 9 months - 12 years IMPORTANT: PLEASE KEEP FOR FUTURE REFERENCE. READ CAREFULLY...
  • Page 2 IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE If these instructions are not followed, the safety of a child may be severely endangered.

  • Page 3: Table Of Contents

    CONTENTS 1. Warning ......................03-04 2. Product overview ....................05-06 2.1. Use in the vehicle ....................05 2.2. Car seat components ..................06 3. Group 1 (9-18kg) ....................07-10 3.1. Adjusting the headrest ..................07 3.2. Installing the car seat (with ISOFIX and vehicle belt) ........08-09 3.3.

  • Page 4: Warning

    1. WARNING • Please read carefully before installing the child seat in the vehicle. • This child safety seat is suitable for use as Group 1/2/3 from approx. • 9 months - 12 years of age (9-36kg). • Please read these instructions carefully, as incorrect installation could result in •...
  • Page 5 • This safety seat is only intended for use in a vehicle. • You must replace the child restraint system if it is involved in an accident. It may • have unseen damage and may not protect your child as well as it should. •...

  • Page 6: Product Overview

    2. PRODUCT OVERVIEW 2.1. Use in the Vehicle This child restraint has passed the European Type Approval of ECE-R44/04. It is suitable for a child from 9kg to 36kg (approx. 9 months to 12 years old). Group 1 (9-18kg) - suitable from 9 months - 4 years Group 2/3 (15-36kg) - suitable from 3 years - 12 years This child car seat is only suitable for vehicles fitted with a 3-point safety belt and an ISOFIX anchorage system approved to UN/ECE Regulation No.

  • Page 7: Car Seat Components

    2.2. Car Seat Components...

  • Page 8: Group 1 (9-18Kg)

    3. GROUP 1 (9-18KG) This child car seat has a 5-point harness which is suitable for children from 9-18kg (approx. 78-92cm in height). If your child’s height is over 92cm, we suggest using Group 2/3 (15-36kg) installation. 3.1. Adjusting the headrest A correctly adjusted headrest ensures optimal protection for your child in the car seat.

  • Page 9: Installing The Car Seat (With Isofix And Vehicle Belt)

    3.2. Installing the car seat (with ISOFIX and vehicle belt) 3.2.1. On each side of the seat, squeeze the ISOFIX button and fully extend the ISOFIX connectors. Slide the two ISOFIX connectors firmly into the insert guides until the ISOFIX connectors engage with a “click” noise on both sides. The ISOFIX button must turn green on both sides.

  • Page 10: Securing The Child With 5-Point Harness

    WARNING! Make sure vehicle belts are not twisted and buckle is engaged. 3.3. Securing the child with 5-point harness 3.3.1. Adjusting the buckle: Open buckle: Press red button until buckle latches are released from the buckle. Lock buckle: Guide the two buckle latches together, putting them into the harness buckle house.
  • Page 11 3.3.2. Adjusting the harness: Tighten harness: Pull the adjuster strap until the harness lies flat and close against your child’s body. Note. The harness should allow 1 finger width, approx. 1cm at the top of the shoulders for ideal fit. Loosen harness: Press the centre adjuster and at the same time pull both shoulder belts towards you.

  • Page 12: Group 2 And Group 3 (15-36Kg)

    4. GROUP 2 AND GROUP 3 (15-36KG) Use Group 2/3 (15-36kg) installation if your child’s height is over 92cm or their weight exceeds 15kg. 4.1. Removing the 5-point harness 4.1.1. Adjust headrest to the lowest position. 4.1.2. Loosen the harness; press the centre adjuster and at the same time pull both shoulder belts towards you.
  • Page 13 4.1.5. Remove the shoulder belt out from one side of the buckle and pull out through the seat base to remove. 4.1.6. Thread shoulder pads through the front of the seat to remove. 4.1.7. Redo the zip cover and remove the infant cushion. 4.1.8.

  • Page 14: Adjusting The Headrest

    4.2. Adjusting the headrest When harnessed by a 3-point vehicle belt, the headrest must be adjusted so that there is a space two fingers wide between the headrest and your child’s shoulders. Make sure the diagonal seat belt section is on your child's shoulder but not on the neck.

  • Page 15: Securing The Child With Vehicle Belt

    4.4. Securing the child with vehicle belt 4.4.1. Sit your child in the child seat. Adjust headrest to required height (see section 4.2). Pull out the vehicle seat belt and guide it in front of your child to the vehicle seat buckle. Engage the buckle tongue into the vehicle seat buckle. 4.4.2.

  • Page 16: Group 3 (22-36Kg)

    5. GROUP 3 (22-36KG) If your child’s exceeds is between 22-36kg, you can use the booster seat only in Group 3. 5.1. Removing the backrest Hold the seat base with one hand and push against the seat backrest with the other hand until the backrest detaches from the base.

  • Page 17: Securing The Child With Vehicle Belt

    5.3. Securing the child with vehicle belt 5.3.1. Sit your child on the booster seat. Pull out the vehicle seat belt and guide it in front of your child to the vehicle seat buckle. Engage the buckle tongue into the vehicle seat buckle. 5.3.2.

  • Page 18: Maintenance

    6. MAINTENANCE 7.1. Care for the harness buckle It is vital for the safety of your child that the harness buckle works correctly. Malfunctions of the harness buckle are usually caused by accumulations of dirt or foreign bodies. Malfunctions as follows: - The buckle latches are ejected only slowly when the red release button is pressed.

  • Page 19: Cleaning And Removing The Covers

    6.2. Cleaning and removing the covers - The covers can be machine washed using mild detergent and at a maximum temperature of 30° C. Do not iron. Do not dry clean. Do not tumble dry. - Sponge clean the belts and shoulder/crotch pads with warm water and a mild detergent.
  • Page 20 For further assistance with your EnfaSafe car seat, please do not hesitate to call us on +353 1 2952111 or you can get in touch by email at reachout@euroactiveproducts.com EUROACTIVE HK. LTD. 79/ 80 FURZE ROAD, SANDYFORD BUSINESS ESTATE, DUBLIN, D18 C5P9, IRELAND...
