PROTRON PLTV-3250 User Manual

Start Here
Easy Setup Instructions
Unpacking the Display and Accessories

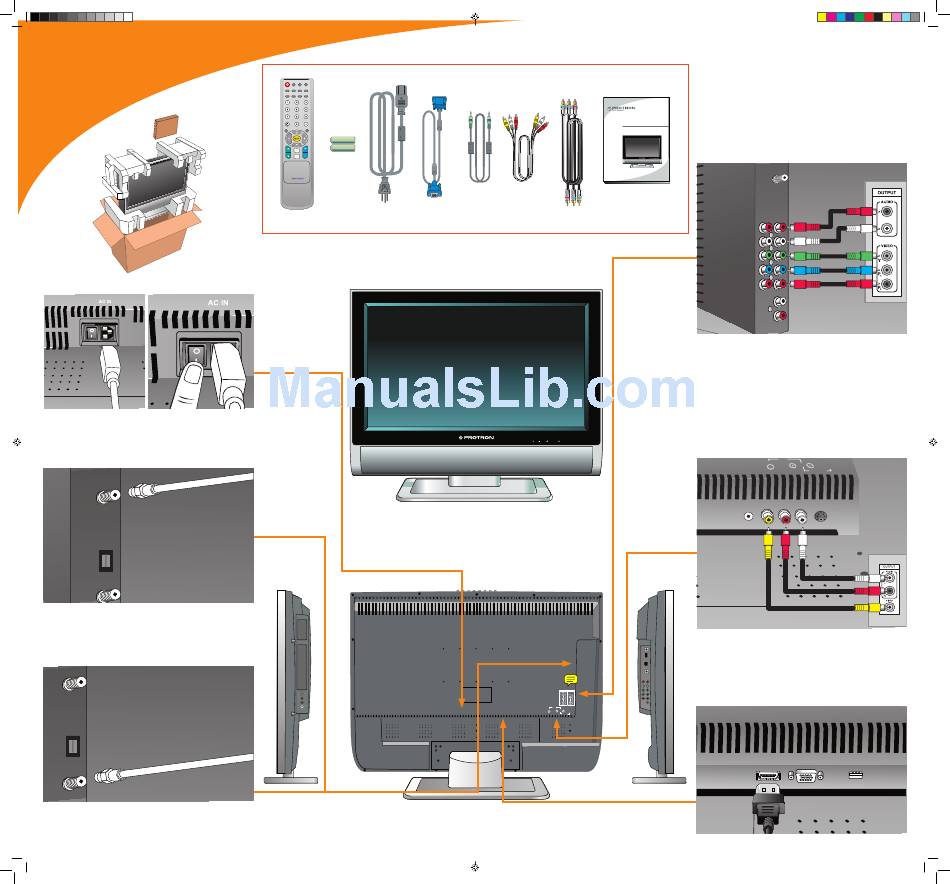

1. Remove the contents of the box and place the display in its
intended location.
Accessories
Box
2. Plug in the display and turn it on.
Connecting a Digital TV (HDTV) Antenna
1. Connect a coaxial cable between the ATSC jack and TV signal
source.
Connecting an Analog TV Signal
(Ex: Cable Box, Satellite Receiver, Antenna)
1. Connect a coaxial cable between the NTSC jack and TV signal
source.
Note: If you would like to be able to record the TV signal,
connect the TV signal source to the recording device, then
connect the recording device to the display.
EZPLTV3250-1.indd 1
Accessories
DISPLAY TV SOURCE
LIST SLEEP PICTURE SOUND
FAV. C.C. V-CHIP EPG
MTS MENU
CH MUTE VOL
CH VOL
AAA Batteries
ASPECT
PC Audio Cable
VGA Cable
Power Cord
Remote
ACIN
Vertical fold
PLTV-3250
32" Liquid Crystal Display
User's Manual
RCA Cables
User's Manual
Component Video
Cables
MENU CH CH VOL VOL ENTER SOURCE POWER
HDMI D-SUB
ANT
SC-ART 2
SC-ART 1
AV 1 IN
VIDEO 1
PC AUDIO 1
HDMI D-SUB S-VIDEO
AUDIO IN
S-VIDEO IN
Vertical fold
Connecting Component Video Devices
(Ex: Progressive Scan DVD Player, HDTV Receiver)
1. Using three RCA cables, connect the three component video
outputs (Y, Pb, and Pr) to the corresponding jacks in one of the
two component video blocks on the display.
2. Using two other RCA cables, connect the right (red) and left
(white) audio outputs on the source to the corresponding jacks
in the same component video block used above.
Connecting Composite Video Devices
(Ex: VCR, DVD Player)
1. Using an RCA cable, connect the composite video output
(yellow) on the source device to the corresponding jack in one
of the two composite video blocks: AV 1 IN on the bottom of
the display or AV 2 IN on the right side of the display. SC-ART 1
2. Using two RCA cables, connect the right (red) and left (white)
audio outputs on the source to the corresponding jacks in the
same composite video block used above.
AV 1 IN
VIDEO 1
PC AUDIO 1
RS-232
AUDIO IN
S-VIDEO
S-VIDEO IN
Connecting HDMI Devices
1. Using an HDMI cable, connect the HDMI device to the HDMI
input on the bottom of the display.
HDMI D-SUB
R
L
VID
PC
AUDIO IN
7/17/2006 7:58:36 PM
