PROTRON PLTV-26M User Manual

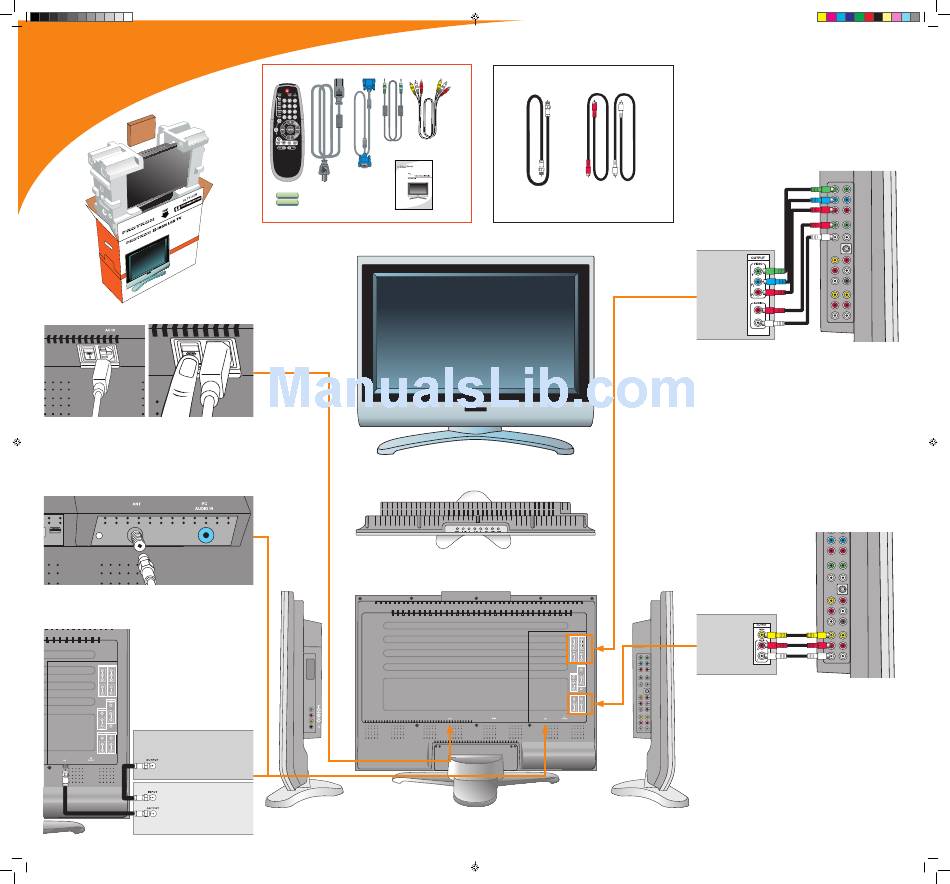

Start Here
Easy Setup Instructions
Unpacking the Display and Accessories
1. Remove the contents of the box and place the display in its
intended location.
Accessories Box
2. Plug in the display and turn it on.
Connecting to a TV Signal Source
(Ex: Cable Box, Satellite Receiver, Antenna)
1. Connect a coax cable between the adapter and TV signal
source.
Note: If you would like to be able to record the TV signal, connect
the TV signal source to the recording device, then connect
the recording device to the display.
Coax Video Source
Video Recorder
EZPLTV26M_27M_32M.indd 1
Accessories
Remote Power Cord VGA Cable PC Audio RCA Cables
Cable
26M/27M/32M
26/27/32
AAA Batteries
User's Manual
Vertical fold
Coax Cable Extra RCA Cables
Not Included
FRONT
TOP
BACK
Vertical fold
Connecting to Component Video Output Components
(Ex: Progressive Scan DVD Player, HDTV Receiver)
1. Using three RCA cables, connect the three component video
outputs (Y, Pb, and Pr) to the corresponding jacks in one of the
two component video blocks on the display.
2. Using two other RCA cables, connect the right (red) and left
(white) audio outputs on the source to the corresponding jacks
in the same component video block used above.
R
L
Connecting to Composite Video Output Components
(Ex: VCR, DVD Player)
1. Using an RCA cable, connect the composite video output (yellow)
on the source device to the corresponding jack in one of the three
composite video blocks on the display (AV 1 IN, AV 2 IN, or AV 3 IN).
2. Using two RCA cables, connect the right (red) and left (white)
audio outputs on the source to the corresponding jacks in the
same composite video block used above.
10/10/2005 11:04:35 AM
