Sealey LED040 Manual

thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SafEty
Familiarise yourself with this product's application and limitations, as well as any specific potential hazards peculiar to the warning
9
light.
Do not use the warning light for any purpose other than for which it is designed.
8
Do not allow children to operate the warning light.
8
Do not operate the warning light if any parts are missing or damaged as this may cause failure or possible personal injury.
8
When not in use switch the warning light off and where appropriate remove batteries.
9
2. intRoDuction

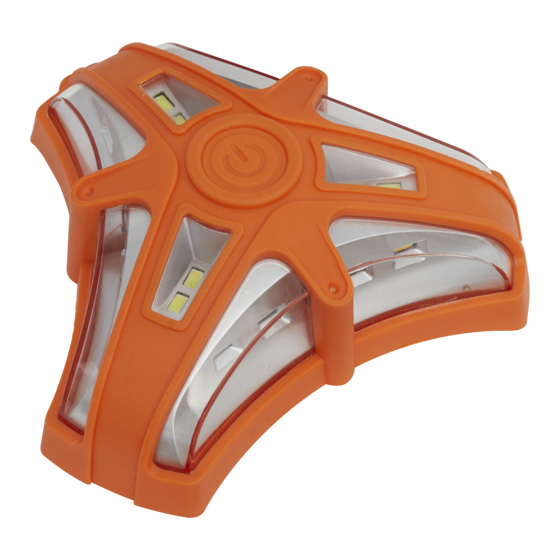

Rotating warning light is ideal to keep in the car for a variety of roadside emergency applications and hazard awareness. Durable, waterproof
(IPX5) and extremely heavy-duty design. Features nine different warning functions with 12 ultra-bright amber coloured SMD LEDs and three
white SMDs for use as a torch producing 150 lumens. Visible 360° at 500m distance. Includes three magnets for adhering to any ferrous
material and hanging hook for hands-free operation. Powered by 3 x AAA batteries (not included).
3. SpEcification
Model no:................................................................. LED040
Battery: ............................................... 3 x AAA (not included)
dimensions: ..............................................130 x 120 x 45mm
led Qty: ..........12 x Amber SMD LED + 6 x White SMD LED
4. opERation
4.1. To turn on the light press the power button on the top of the unit (fig.1).
4.2.
Keep pressing the power button to change the functions.
4.2.1. Functions:
White 6 SMD Light on,
Amber Double Flash Quick,
Double Flash Slow,
Single Flash, Rotate,
Alternate Flash,
SOS,
All Amber Light On,
2 x Amber On.
4.3. cHanging tHE BattERy
4.3.1. To change the battery unscrew the battery cover (fig.2) on the back and replace the batteries.
5. MaintEnancE
5.1. To clean, wipe with a damp cloth.
Do not use harsh detergents.
8
© Jack Sealey Limited
12 SMD LED + 6 SMD LED Rotating HazaRD
WaRning EMERgEncy LigHt
LED040
Model no:
Original Language Version
On/Off
fig.1
fig.2
Battery
Hook
Cover
lED040 Issue 1 23/05/19
