Sealey LED301 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. GENERAL
DO NOT shine directly into your, another person's or an animal's eyes.
8
DO NOT allow children to use the torch.
8
DO NOT use the torch if you suspect that the battery or the torch casing is damaged.
8
DO NOT attempt to repair/disassemble the light yourself.
8
DO NOT leave batteries in a discharged state. Before storage remove batteries.
8
DO NOT use/store the product in extreme temperatures.
8
Protect this product from water, humidity or any liquids.
9
1.2. BATTERY SAFETY
WARNING! To reduce the risk of burns or fire:
‰
DO NOT attempt to open the batteries.
8
DO NOT crush, puncture, short contacts or dispose of in fire or water.
8
DO NOT expose to temperatures above 60°C (140°F).
8
Replace only with the batteries designed for this product.
9
Recycle or dispose of used batteries as stipulated by local regulation.
9
If the electrolyte in the batteries gets on your skin, rinse thoroughly with water. If it gets in your eyes, rinse thoroughly with cool water
9
and seek immediate medical attention.
2. INTRODUCTION

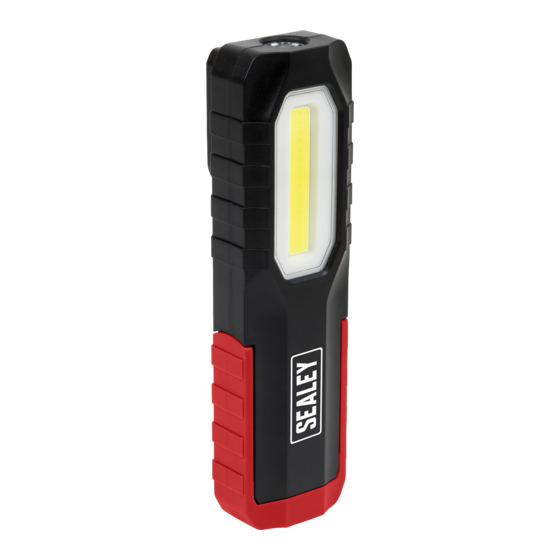

Lightweight light featuring a super bright 3W COB LED, which gives an even and constant spread of light, producing up to 200 lumens.
2W High power SMD LED torch producing up to 100 lumens. Integral hanging hook/belt clip and a magnetic base which can rotate
through 180° for hands-free applications. Rechargeable 3.7V 1.2Ah lithium-ion battery for longer product life. Supplied with 300mm USB
TYPE-C charging cable.
3. SPECIFICATION
MODEL NO:
Battery:
Charging Time:
IP Rating:
LED Type:
Length:
Lumen Output:
Operating Time:
Length:
Lumen Output:
Operating Time:
4. OPERATION
4.1. CHARGING
4.1.1. Use the USB cable provided to charge the product.
4.2. Press ON/OFF:
4.2.1. Once to turn on the torch.
4.2.2. Twice to turn on the COB LED.
4.2.3. Three times to turn OFF.
5. MAINTENANCE
Clean this product with a soft, slightly damp cloth.
9
DO NOT use any abrasive agents to clean the product.
8
DO NOT attempt to repair/disassemble the light yourself.
8
© Jack Sealey Limited
3W COB & 2W SMD LED RECHARGEABLE
INSPECTION LIGHT WITH 180° MAGNETIC STAND
MODEL NO:
LED301
3.7V 1200mAh Li-Battery
4hr
IP20
3W COB + 2W SMD LED
165mm
100lm (SMD)
200lm (COB)
2-4hr
165mm
100lm (SMD)
200lm (COB)
3-4hr
Original Language Version
LED301
LIGHT SOURCE
ON/OFF
(BACK OF UNIT)
USB CHARGING PORT
ROTATABLE STAND
LED301 Issue 2 31/10/23
