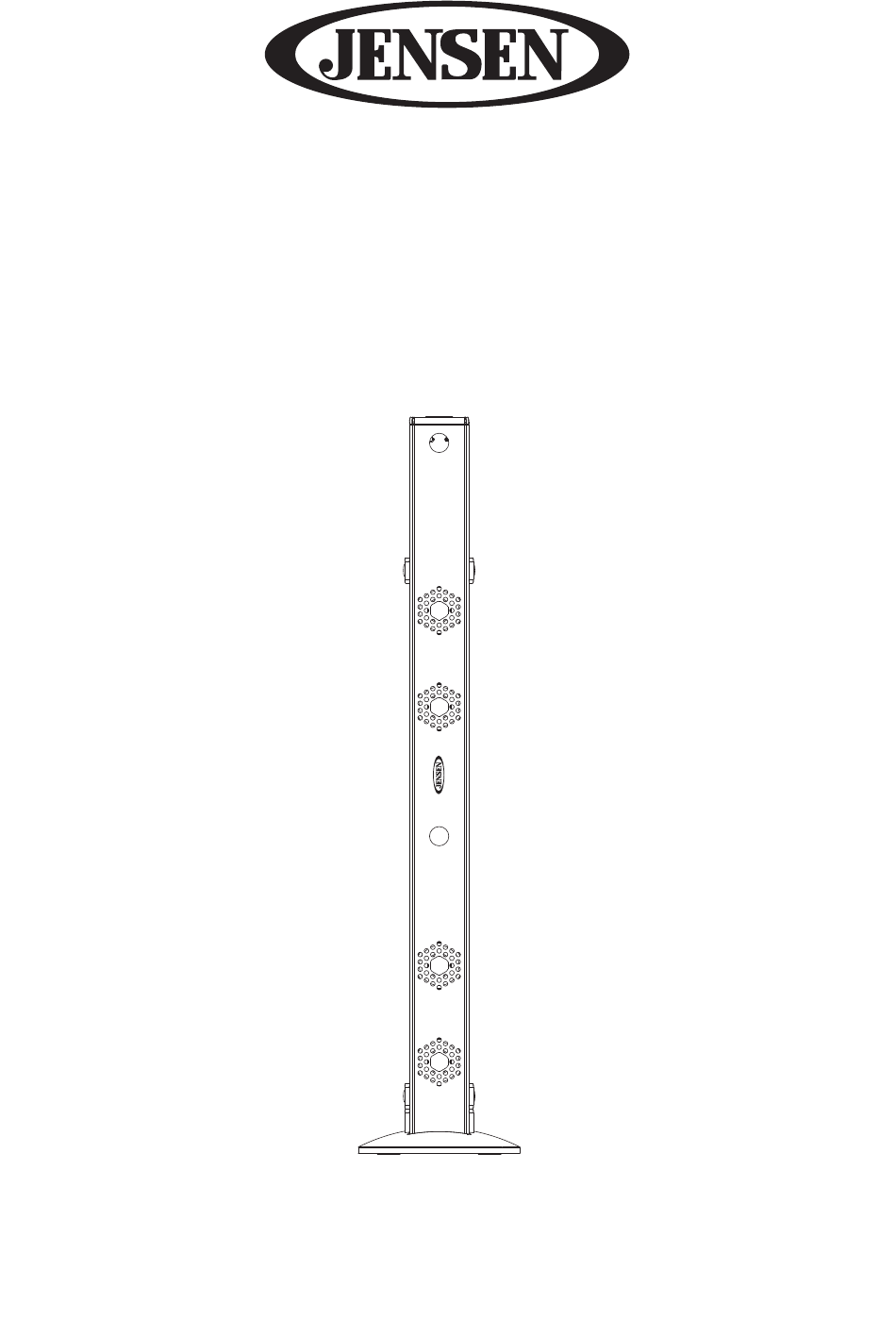

- Page 1 BLUETOOTH SOUNDBAR SYSTEM MODEL: JSBW-650 INSTRUCTION MANUAL Please read this instruction manual carefully and keep it for future reference.
- Page 4 Insert the small plug from supplied AC/DC adaptor to DC IN jack on the rear of the unit and insert the AC/DC adaptor to the wall outlet having AC 100-240V~, 50/60 Hz. NOTE:This AC/DC adapter is intended to be AC/DC adapter correctly operated in a vented indoor wall outlet.
- Page 5 MOUNTING 1. Mounting the device on wooden wall We recommend having this speaker professionally mounted. By using the included wall mounting accessories, the sound bar can be mounted onto a wall. 26.9 inches supplied Metallic Bracket supplied Screws supplied Metallic Bracket supplied Screws 1.
-
Page 6: Product Overview
PRODUCT OVERVIEW Front View MODE INDICATOR Back View FM ANT DC 22V 2.5A AUX-IN 1 FM ANT DC 22V 2.5A AUX-IN 1 DC IN jack FM ANT (Antenna) AUX-IN 1 jacks Side View TUNE UP VOLUME UP AUX-IN 2 Jack POWER/SOURCE VOLUME DOWN... -
Page 7: Remote Control
REMOTE CONTROL STANDBY 1. STANDBY 2. VOL- ( volume down ) 3. SOURCE 4. BASS - 5. TREBLE - PAIR /TUNE - ( play/pause ) (mute) 9. VOL+ ( volume up ) 10. BASS + 11. PAIR 12. TREBLE + 13. - Page 8 FM RADIO Power on the unit and press the SOURCE button on remote control or the SOURCE button on control plate until the indicator light turns purple. 1. Press TUNE+ button on control plate to search manually to play the searched station. .
-
Page 9: Aux-In 1 Connection
AUX-IN 1 CONNECTION - RCA AUX IN sources may include •TV/DVD/VCR - RCA AUX IN connection 1. Connect the RCA audio cable (supplied) to the audio output jack on DVD player and AUX 1 or AUX 2 jack on the rear of DVD. 2. -
Page 10: Aux-In 2 Connection
AUX-IN 2 CONNECTION - AUX IN source may include: •Personal audio players •Personal computers or laptops - AUX IN connection: 1. Connect a stereo 3.5mm jack cable (supplied) between the headphone or INE/Audio output of the personal audio player and the AUX-IN 2 jack on the side of the unit. - Page 11 Turn on Bluetooth connectivity and make your device “discoverable”. 4. Choose “add a new Bluetooth device”or “setup Bluetooth device”on your device. It will start to search. Once “ ”shows on your device, select it. If your JSBW-650 JSBW-650 JSBW-650 JSBW-650 device prompts you for a pass code, please enter"0000".
-
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE No power AC plug not connected to the Plug to the wall outlet. wall outlet Raise volume level by pressing the VOL Volume in minimum position (Volume) + button Play the music/movie in the connected No sound The connected device is not device as usual and make sure the in payback mode volume level of it is in high level... -
Page 13: General Specifications
GENERAL SPECIFICATIONS Power Source..................DC 22V; 2.5A, Radio Coverage....................FM 87.5 -108.0 MHz Output power ................2x15W RMS + Subwoofer 20W Bluetooth Effective Range in Open Aera..............Up to 32 feet Remote Effective Range.....................Up to 16 feet 1 x AC/DC Adaptor ( Input: AC 100-240V~, 60Hz; 1.4A Max. Output: DC 22V;... - Page 14 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
