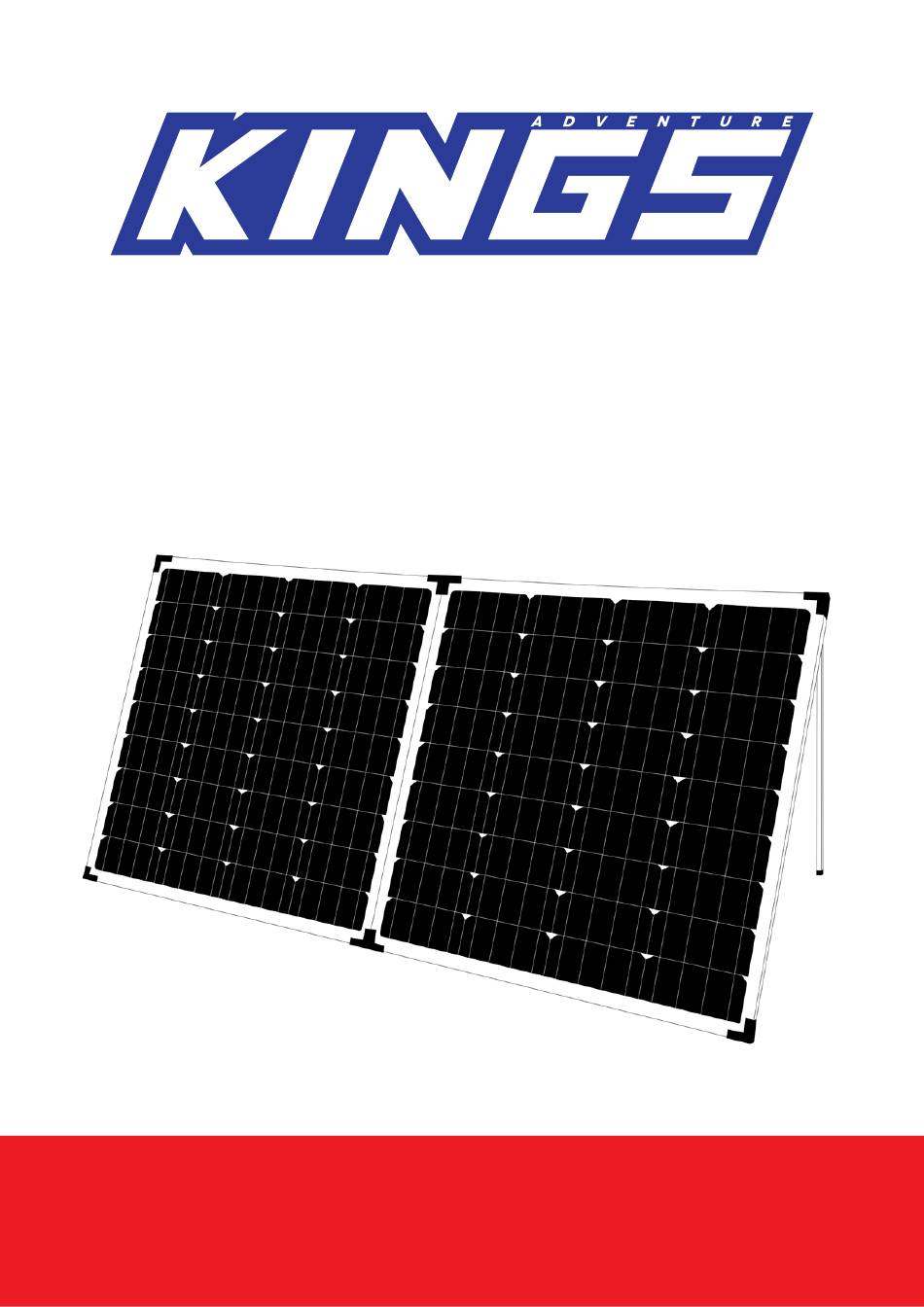

- Page 1 160W Folding Solar Panel USER MANUAL AKSR-PN160W_02 V1.2 PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE USING THIS PRODUCT.
-
Page 2: Warnings And Safety Information
WARNINGS & SAFETY INFORMATION • Keep the solar panel and controller away from liquids at all times. • Keep the solar panel and controller clean and always check connectors for debris before connecting. • This product is not intended to be used by children. In addition to this, adults with reduced physical or mental capabilities, or those who are under the influence of drugs or alcohol should not use the product. - Page 3 SOLAR BLANKET SPECIFICATIONS Monocrystalline Solar Panel 160W Rated Max Power (PM) Open-Circuit Voltage (VOC) 22.6V 9.16A Short Circuit Current Max Voltage 18.4V Peak Current Output 8.7A Regulator Type PWM (Pulse-Width Modulator) Dimensions 730 x 670 x 58mm Extension Lead 4.5 meters Net Weight 12.0 kg (approx.) •...
- Page 4 CONNECTING YOUR SOLAR PANEL • With the panel setup facing directly towards the sun, connect the positive and negative clips to your battery. • Always connect the battery clips to the battery first, before connecting to the solar panel. The solar controller will then illuminate.
-
Page 5: Usage Recommendations
PULSE WIDTH MODULAR (PMW) SOLAR PANEL CONTROLLER External Dimensions (mm): 120 x 64 Bolt Spacing (mm): 112 x 50 Mounting Hole Diameters (mm): CONNECTING TO A LOAD • Connect the solar panels (+) positive and (-) negative terminals to a Load’s corresponding terminals. -
Page 6: State Indicators
STATE INDICATORS LED LIGHT INDICATED ITEM STATE MEANING Solar Panel Generating Light ON Power Solar Panel is not Light OFF Generating Power Solar Panel Slowly Flashing Charging in Process Rapid Flashing Over-voltage LIght On Battery Connected Battery is not Light OFF Connected Battery Slowly Flashing... -
Page 7: Parameter Details
PARAMETER DETAILS Ternary-Material Lithium Iron Battery Type Sealed Flooded Lithium Phosphate** System Current No-Load Loss 10mA Solar Energy Input Voltage <55V 3 & 4 Strings: 3 & 4 Strings: System Voltage 12V Auto 12V System 12V System 3.65 V * N + Over-voltage Protection 4.2* N + 2.0 V 2.0V... -
Page 8: Troubleshooting
TROUBLESHOOTING SYMPTOMS CAUSES AND SOLUTIONS Indicator LED does not light up when Solar Check to make sure all connections are strong Panel is in direct sunlight. and reliable. Solar Panel Indicator LED flashing rapidly. Over-voltage - Check battery voltage. Solar Panel Indicator LED is off, battery voltage The load will be switched on automatically after is sufficient, but there is no output. -
Page 9: Warranty
12 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 12 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
