- Page 1 Fixed Solar Panel Kit USER MANUAL PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE USING & INSTALLING THE FIXED SOLAR PANEL KIT.

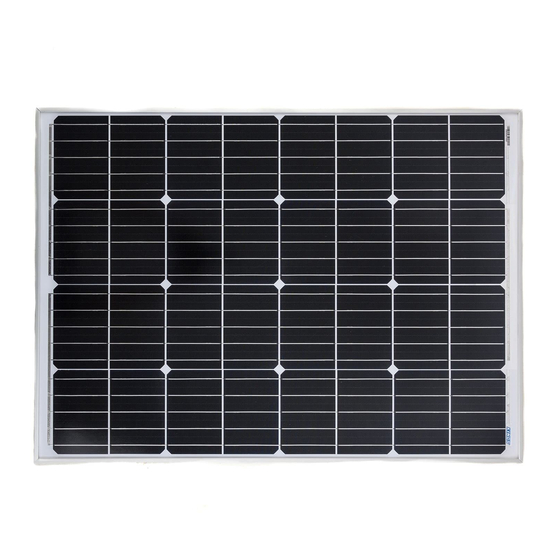

- Page 2 Included in the Kit: ITEM: QTY: 110W Monocrystalline Solar Panel Z-Shaped Bracket Aluminium Support Plate M8*16 Bolt M8 Nylon Lock Nut M8 Washer (Form A) M8*25 Bolt M8 Spring Washer M8 Washer (Form C) Adventure Kings Fixed Solar Panel Kit...
- Page 3 3. Tighten making sure the Z-brackets supports are pressed firmly against the outside of the solar panel. 4. Repeat 1 to 3 for each of the four Z-brackets. Adventure Kings Fixed Solar Panel Kit...
- Page 4 Maximum Power Voltage (Vmp): 18.2V Maximum Power Current (Imp): 6.04A Open Circuit Voltage: 22.3V Short Circuit Current: 6.49A Maximum System Voltage: 1000V DC Operating: -40˚C to 85˚C Weight: 7.85kg Dimensions (mm): 1010 x 676 x 355 Adventure Kings Fixed Solar Panel Kit...
- Page 5 TO MAKE A CLAIM, PLEASE ENSURE YOU RETAIN YOUR SALES RECEIPT OF PURCHASE CALL 1800 88 39 64 OUTDOOR SUPACENTRE PTY LTD 2 Stanley St Silverwater NSW, 2128 PHONE: 1800 88 39 64 www.4wdsupacentre.com.au Adventure Kings Fixed Solar Panel Kit...
