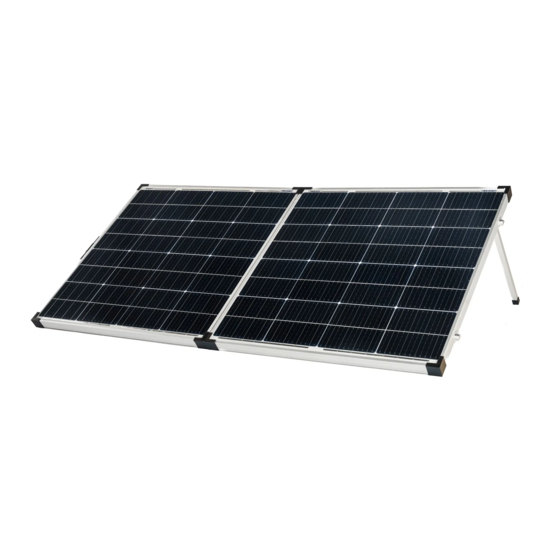

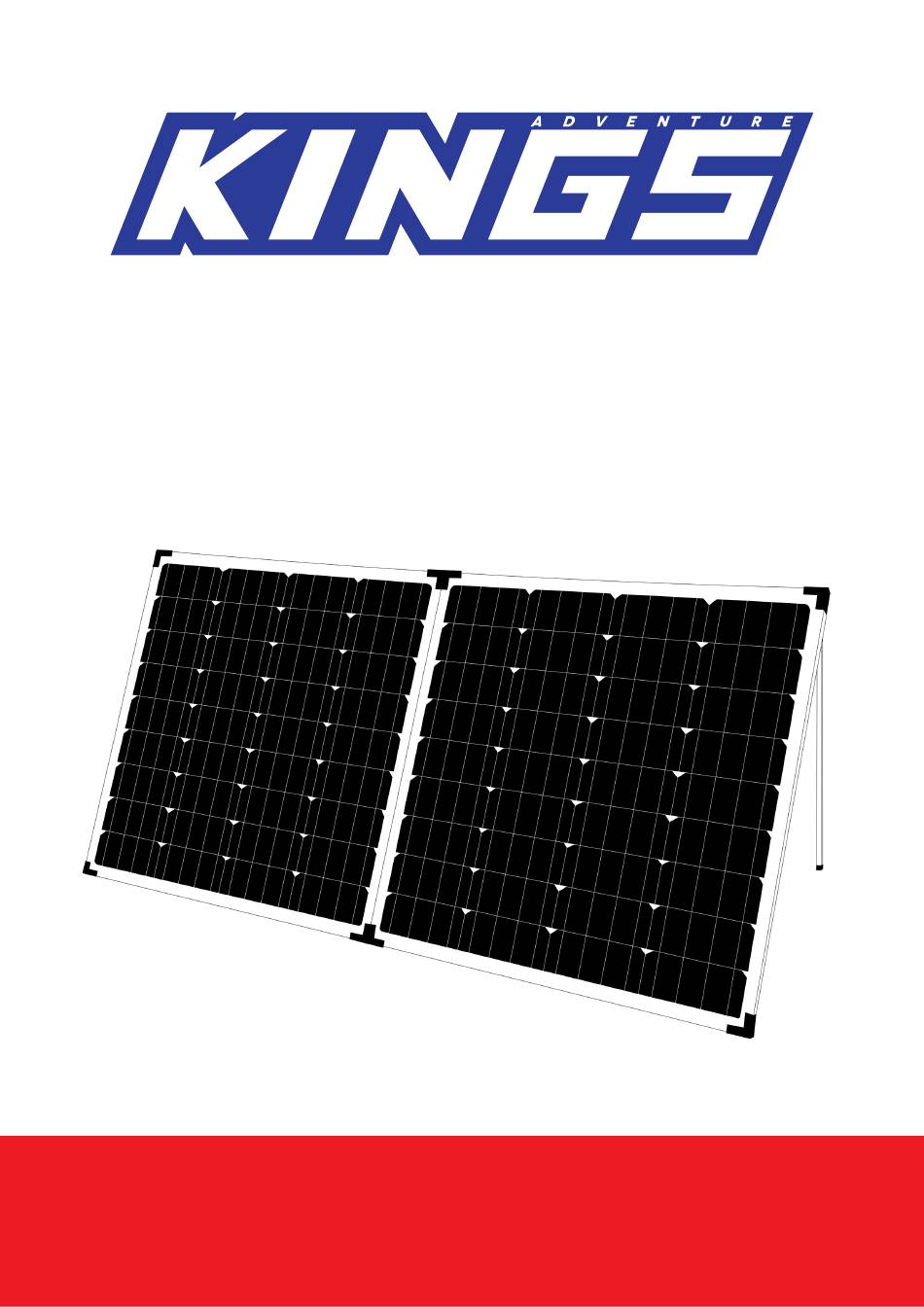

- Page 1 250W Folding Solar Panel USER MANUAL AKSR-PN250W_04 V1.4 PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE USING THIS PRODUCT.
- Page 2 WARNINGS & SAFETY INFORMATION • Keep the solar panel and controller away from liquids at all times. • Keep the solar panel and controller clean and always check connectors for debris before connecting. • This product is not intended to be used by children. In addition to this, adults with reduced physical or mental capabilities, or those who are under the influence of drugs or alcohol should not use the product.
- Page 3 SOLAR BLANKET SPECIFICATIONS 250W Max Power. Tolerance ± 3% 18.2V Voltage at Pmax (Vmp) 13.74A Current at Pmax (Imp) Open-Circuit Voltage (Voc) 22.3V 14.62A Short-Circuit Current (Isc) Normal Operating Cell Temp (NOCT) 47 ± 2°C Maximum System Voltage 1000VDC Maximum Series Fuse Rating Operating Temperature -40°C to +85°C Application Class...
- Page 4 INSTRUCTIONS ADJUSTABLE SUPPORT LEGS • Pull the support leg away from the Solar Panel from the foot of the leg. The support legs are loose and the angle of the solar panel can be adjusted. • When the desired angle is reached, pull the latch towards the leg to lock it in position.
- Page 5 OPERATING THE MPPT CONTROLLER Please note: not following these instructions may cause damage to the MPPT controller. Ensure that you attach the positive (+) and negative (-) wires to the appropriate terminals. 1. Connect the positive and negative wires from the battery into the terminals with the battery icon ensuring polarity is correct.
- Page 6 SPECIFICATIONS Model CY1220-MT Rated charge current Rated discharge current Rated voltage 12V/24V auto work MPPT efficiency Max:99% ≥1.5 rated current Over load, short circuit protection No load current ＜10mA Over voltage protection 16V; ×2/24V Voltage of stop charging 14.7V; ×2/24V Discharge recovery voltage 12.0V;...
- Page 7 12 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 12 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
