CONSUMER SAFETY INFORMATION
Read this manual before installing and operating this appliance
Failure to follow these instructions may result in electric shock, fire property,
or personal injury
Do not store or use gasoline or other flammable liquids in vicinity of this
appliance.

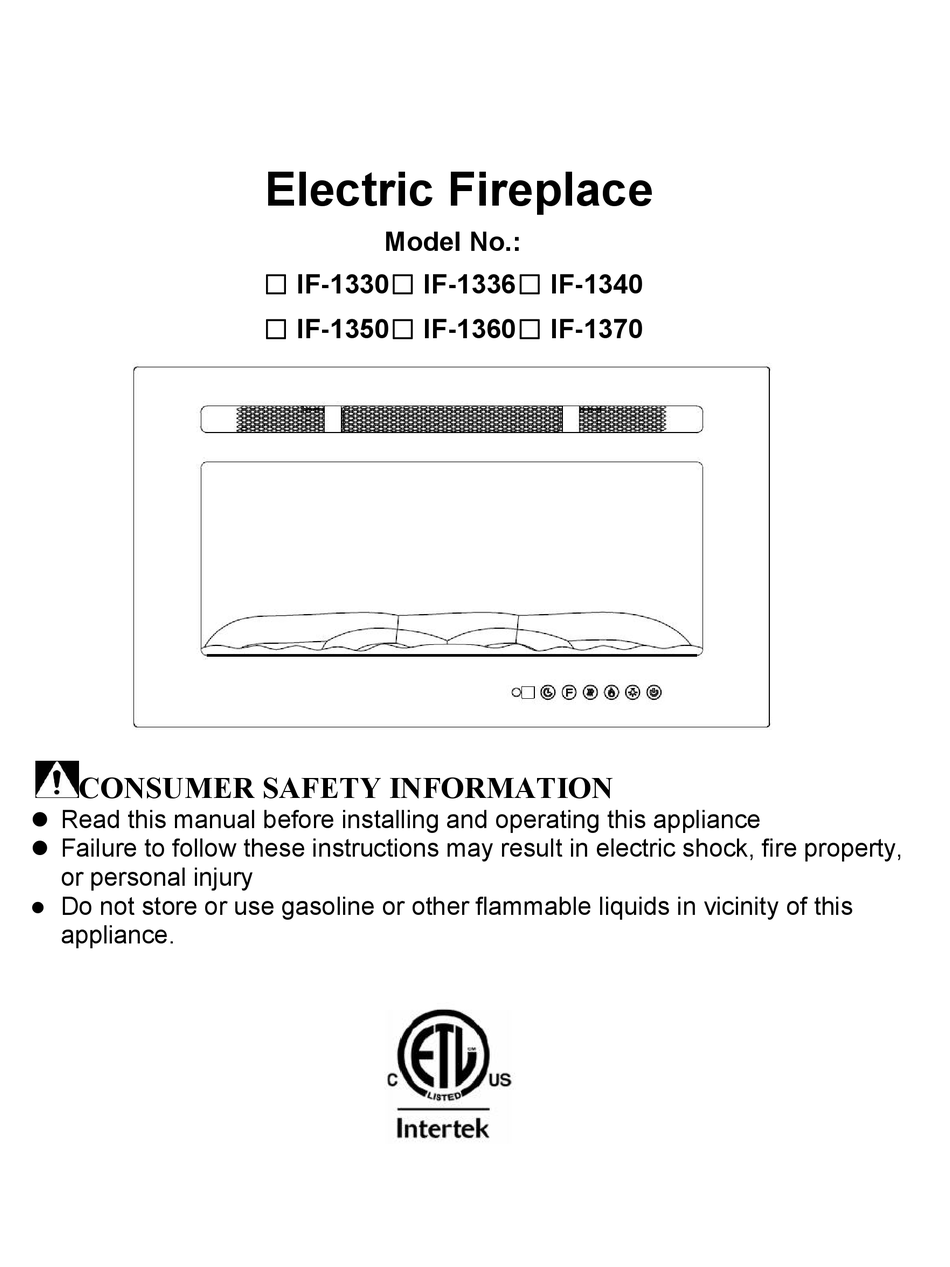

Electric Fireplace
Model No.:
□ IF-1330□ IF-1336□ IF-1340
□ IF-1350□ IF-1360□ IF-1370
Advertisement
Table of Contents
Related Manuals for DecExpert IF-1330
Summary of Contents for DecExpert IF-1330
- Page 1 Electric Fireplace Model No.: □ IF-1330□ IF-1336□ IF-1340 □ IF-1350□ IF-1360□ IF-1370 CONSUMER SAFETY INFORMATION Read this manual before installing and operating this appliance Failure to follow these instructions may result in electric shock, fire property, or personal injury Do not store or use gasoline or other flammable liquids in vicinity of this ...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION! WARNING Read all instructions before using this heater! This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear. - Page 3 NEVER use a wall mount bracket from another manufacturer. This product is not intended to be a primary heat source. It is for supplemental heat only. INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock! ...
-
Page 4: Parts & Hardware
Wood Screws c-Drywall anchors Remote control d Wall Bracket e-Log set Fixed on back of firebox a.Fireplace f-Decorative Crystals Specification and Dimension PRODUCT DIMENSIONS Model Number IF-1330 30” 17.0” 4.13” 26.2” 16.2” 9.1” 23.7” 76.2cm 43.2cm 10.5cm 66.5cm 41.2cm 23.2cm... -
Page 5: Installation And Assembly
IF-1370 72” 17.0” 4.13” 68.2” 16.2” 9.1” 65.7” 152.4cm 43.2cm 10.5cm 173.2cm 41.2cm 23.2cm 166.9cm Installation and Assembly Your appliance is a wall-mounted, recessed and /or mantel installed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas. NOTE：... - Page 6 Figure (A) Framing Hole Size STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chat Figure (A) Framing Hole Size Model Number IF-1330 26.77”(68.0cm) 16.54”(42.0cm) IF-1336 32.77(83.2cm) 16.54”(42.0cm) 36.77”(93.4cm) 16.54”(42.0cm) IF-1340 IF-1350 46.77”(118.8cm)
- Page 7 IF-1330 IF-1336 Figure (B ) IF-1340 IF-1350...
- Page 8 IF-1360 IF-1370 STEP B. Fix the four wall anchors in each side of the fireplace box according to the dimensions Showed on the drawing. Figure (B)
- Page 9 STEP C. Take off the two screws in both sides of fireplace. Figure (C) STEP D. Have two person to take the glass panel out of the fireplace box. Place it to a soft and clean place. Figure (D) , taks two pcs of foam out of fireplace(E). (‘F) STEP E.
-
Page 10: Wall Mounted Installation
Wall Mounted Installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. A. Select a location that is not prone to moisture and is located at least 36”(914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc. - Page 11 NOTE: It is strongly Recommended that the mounting bracket(d) be screwed into the wall studs where possible. If the wall studs cannot be used, ensure that the supplied plastic anchors are used to affix the bracket to the wall and the bracket is adequately secured. With the wall mounting bracket installed have two people lift the appliance up and insert the two hooks on the bracket into the two slots on the back of the appliance.Use original 4x8mm screws to fasten wall bracket.
- Page 12 Logset /Crystal Ember Installation (Note: Please make the installation according to the embers which you bought or selected.) A. Glass front must be removed and the appliance must be mounted in its final location before the logset/crystal embers are installed. B.
- Page 13 WARNING Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure do to so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a 110-120V Volt 12 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).Make sure the outlet is in good condition and that the plug is not loose.NEVER exceed the maximum amperage for the circuit.
- Page 14 Touch panel/Remote control Operation BUTTON FUNCTION ACTION&INDICATION ON: Enables control panel functions and remote 1. Press once. Indicator light turns on. Power turns control.Turn on flame effect. on. All functions enabled. OFF: Disables control panel functions and remote 2. Press again. Indicator light turns off. Power control.Turn off flame effect.
-
Page 15: Care And Maintenance
Remote Control Battery Information With 2x AAA batteries. NEVER dispose of batteries in fire. Failure to observe this precaution may result in an explosion. Dispose of batteries at your local hazardous material processing center. CARE AND MAINTENANCE Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. -
Page 16: Troubleshooting
Troubleshooting WARNING DISCONNECTED THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SEVICE PERSON SHOULD SERVICE AND PEPAIR THIS ELECTRIC APPLAINCE. Problem Possible Cause Solution 1. Fireplace turns off 1. Fireplace has overheated 1. Reset switch by turning main and will not turn on.
