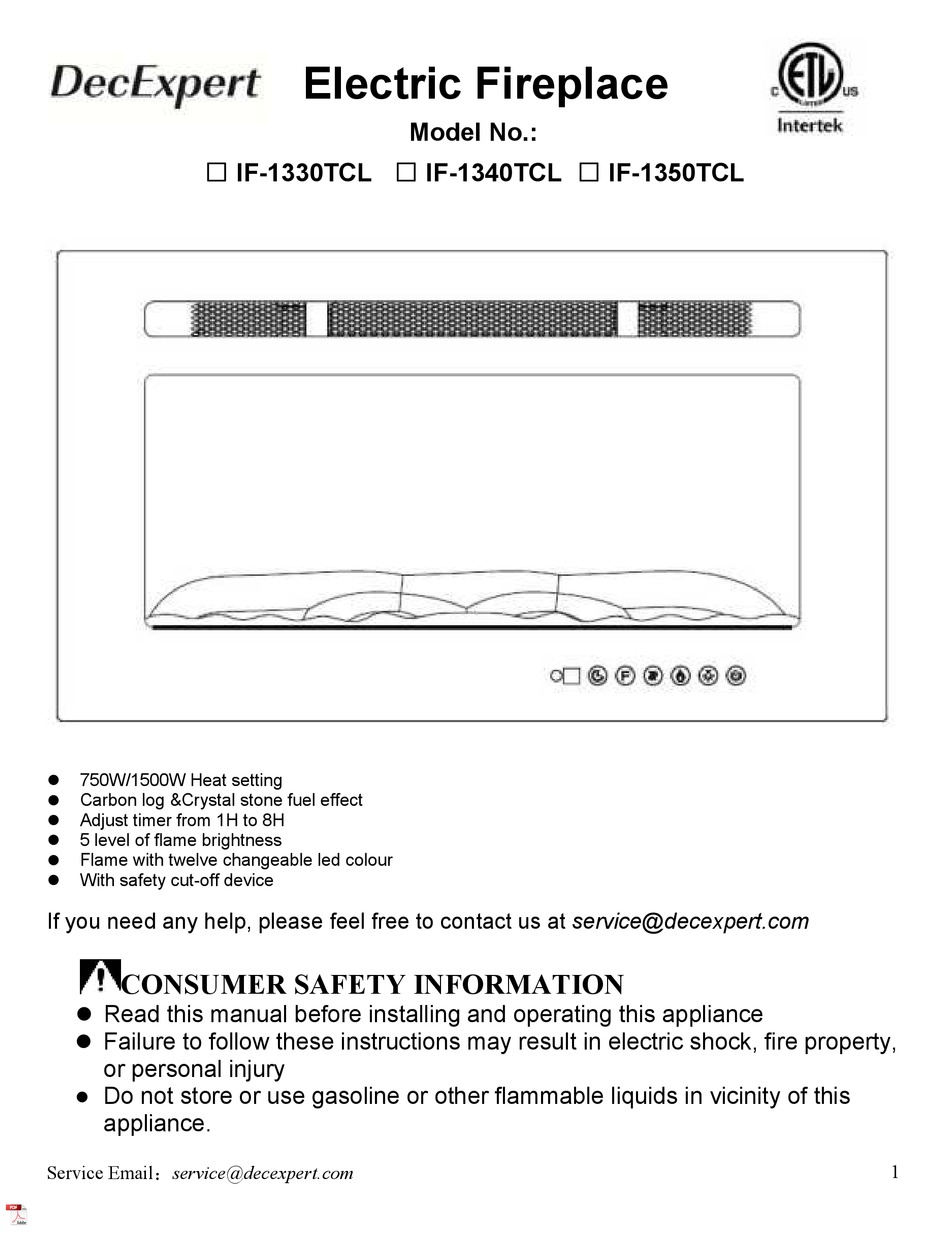

□ IF-1330TCL □ IF-1340TCL □ IF-1350TCL
750W/1500W Heat setting
Carbon log &Crystal stone fuel effect
Adjust timer from 1H to 8H
5 level of flame brightness
Flame with twelve changeable led colour
With safety cut-off device
If you need any help, please feel free to contact us at service@decexpert.com
CONSUMER SAFETY INFORMATION
Read this manual before installing and operating this appliance
Failure to follow these instructions may result in electric shock, fire property,
or personal injury
Do not store or use gasoline or other flammable liquids in vicinity of this
appliance.
Service Email：service@decexpert.com
Electric Fireplace
Model No.:
1
Advertisement
Table of Contents
Related Manuals for DecExpert IF-1330TCL
Summary of Contents for DecExpert IF-1330TCL
- Page 1 With safety cut-off device If you need any help, please feel free to contact us at service@decexpert.com CONSUMER SAFETY INFORMATION Read this manual before installing and operating this appliance Failure to follow these instructions may result in electric shock, fire property,...
-
Page 2: Important Safety Information
DecExpert Ultra-Thin Electric Fireplace IMPORTANT SAFETY INFORMATION! WARNING Read all instructions before using this heater! This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front... - Page 3 DecExpert Ultra-Thin Electric Fireplace ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use. NEVER use a wall mount bracket from another manufacturer. This product is not intended to be a primary heat source. It is for supplemental heat only.
-
Page 4: Parts & Hardware
DecExpert Ultra-Thin Electric Fireplace possible. You will need the following tools (not included): Phillips screwdriver; stud finder; level; tape measure; electric drill; 1/4” wood drill bit, hammer. PARTS & HARDWARE b. Wood Screws c-Drywall anchors Remote control d Wall Bracket e-Log set a.Fireplace... -
Page 5: Installation And Assembly
DecExpert Ultra-Thin Electric Fireplace Installation and Assembly Your appliance is a wall-mounted, recessed and /or mantel installed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas. NOTE： Follow all National and local electrical codes. - Page 6 DecExpert Ultra-Thin Electric Fireplace Figure (A) Framing Hole Size STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chat Figure (A) Framing Hole Size Model Number IF-1330TCL 26.77”(68.0cm) 16.54”(42.0cm) IF-1336TCL 32.77(83.2cm) 16.54”(42.0cm)
- Page 7 DecExpert Ultra-Thin Electric Fireplace IF-1330TCL IF-1336TCL Figure (B ) IF-1340TCL IF-1350TCL STEP B. Fix the four wall anchors in each side of the fireplace box according to the dimensions Showed on the drawing. Figure (B) Service Email：service@decexpert.com...
- Page 8 DecExpert Ultra-Thin Electric Fireplace STEP C. Take off the two screws in both sides of fireplace. Figure (C) STEP D. Have two person to take the glass panel out of the fireplace box. Place it to a soft and clean place. Figure (D) , taks two pcs of foam out of fireplace(E).
- Page 9 DecExpert Ultra-Thin Electric Fireplace Wall Mounted Installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. A. Select a location that is not prone to moisture and is located at least 36”(914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
- Page 10 DecExpert Ultra-Thin Electric Fireplace NOTE: It is strongly Recommended that the mounting bracket(d) be screwed into the wall studs where possible. If the wall studs cannot be used, ensure that the supplied plastic anchors are used to affix the bracket to the wall and the bracket is adequately secured.
- Page 11 DecExpert Ultra-Thin Electric Fireplace Logset /Crystal Ember Installation (Note: Please make the installation according to the embers which you bought or selected.) A. Glass front must be removed and the appliance must be mounted in its final location before the logset/crystal embers are installed.
- Page 12 DecExpert Ultra-Thin Electric Fireplace WARNING Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure do to so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a 110-120V Volt 12 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).Make sure the outlet is in good condition and that the plug is not...
- Page 13 DecExpert Ultra-Thin Electric Fireplace Touch panel/Remote control Operation BUTTON FUNCTION ACTION&INDICATION Enables control panel functions and remote 1. Press once. Indicator light turns on. Power turns control.Turn on flame effect. on. All functions enabled. OFF: Disables control panel functions and remote 2.
-
Page 14: Care And Maintenance
DecExpert Ultra-Thin Electric Fireplace Remote Control Battery Information With 2x AAA batteries. Step1, remove back cap’s screws. Step 2, take back cap out off remote, insert 2x AAA batteries. Last, fasten back cap again, then scew it. NOTE: Remote control battery used depends on the remote control type which selected above. -
Page 15: Maintenance
DecExpert Ultra-Thin Electric Fireplace NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury. Metal: Buff using a soft cloth, slightly dampened with a citrus oil-based product. DO NOT use brass polish or household cleaners as these products will damage the metal trim. - Page 16 DecExpert Ultra-Thin Electric Fireplace 3. Flame rod out of place 2. Call qualified service technician to replace flame motor. 3. “Flame Rod” out of place due to rough transit/handing product. This issue can be corrected as simple as removing the glass,...
