Speco Technologies weatherproof architectural backlit keypad (SG-W300) is designed to
meet most residential, commercial and industrial single door access control requirements. It is a
two piece unit that is fully sealed for all environments. The electronics reside in the protected
area. It comes with a back-plate to cover single gang boxes and rough openings.
Key Features:
•
Surface mount – indoor/outdoor,
single gang design
•
12 backlit keys
•
Sounder
•
Weather resistant
•
130 users
•
Input trigger for request to exit
•
3 independent relay outputs (5A/250V AC)
•
Adjustable time relay of up to 99 seconds
for each relay output or latched
•
Rank/Code program administration
•
Each output is assignable by code
•
Codes can range from 3 to 6 digits
•
Unit shuts down for 20 seconds after
entering 3 incorrect codes
•
Master code can shut down all others as a
temporary lock-out
•
Audible function confirmation
•
12/24 Volt – AC/DC operation
Codes
The Speco Technologies architectural backlit keypad
allows up to 130 user codes, of 3 to 6 digits in length,
to be programmed.
•
The master code and user codes must be the
same length.
•
Available ranks are from 001-129 and ranks
are all 3 digit values.
•
0-9 are valid digits for user codes, but ' * ' or
' # ' is not allowed to be used in a user or
master code.
•
By default, a valid user code activates output
1 if not defined.
•
Hardware (jumper) reset is provided by the
master code.
•
Can assign up to two outputs per code.
•
Each user code must be different. Trying to
enter the same code twice will generate an
error.
•
The Master code is strictly reserved for
configuration and cannot be used to operate
an output.
•
All parameters are saved on EEPROM.
•
A valid user code needs to be followed by
the * key.

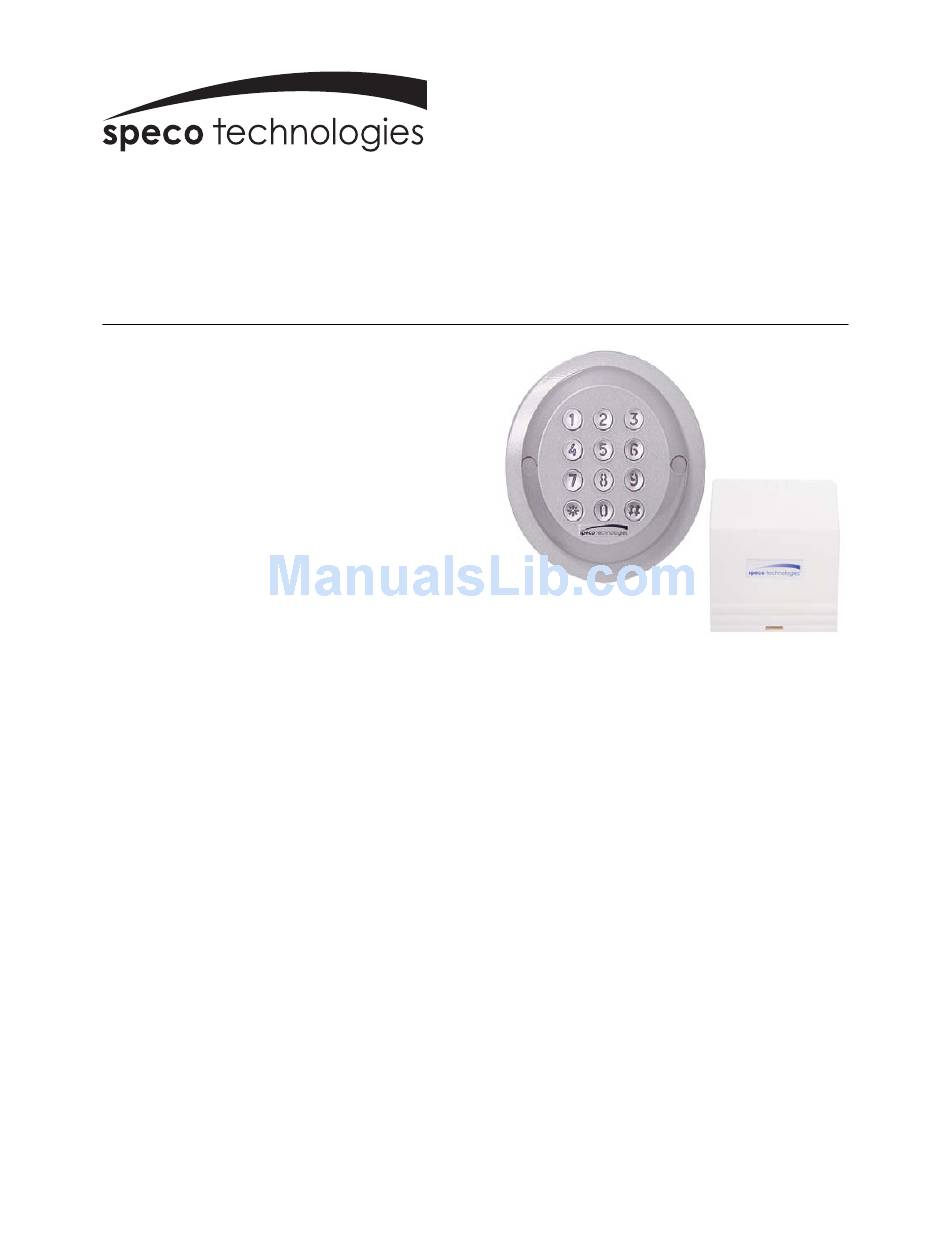

Speco Technologies® 0106 SG-W300
Instruction Manual
Weatherproof Architectural Backlit Keypad
®
SG-W300
Programming
All programming is done from the front of the
keypad. Sounder guidance helps to make
programming easy and authorized users can
change codes in seconds.
Key Press Audible Feedback
The sounder can be deactivated by
programming for user code entries (function 60).
Memory
EEPROM non-volatile memory means your
programming is safe. The codes and
instructions will still be there anytime power is
removed.
Keypad Lockout
•
If needed, every programmed user's
code can be disabled without deleting
them. This is achieved by using
function 90 'Keypad Lockout ON'
•
When 'Keypad Lockout' is active, any
'Request To Exit' devices connected
on the EXIT SW input will still activate
relay one to allow exiting.
•
When 'Keypad Lockout' is active, the
master code (MC) will only activate
output one. Activation time of output
one is the time configured in rank 000
which is also the time used for
'Request To Exit' function.

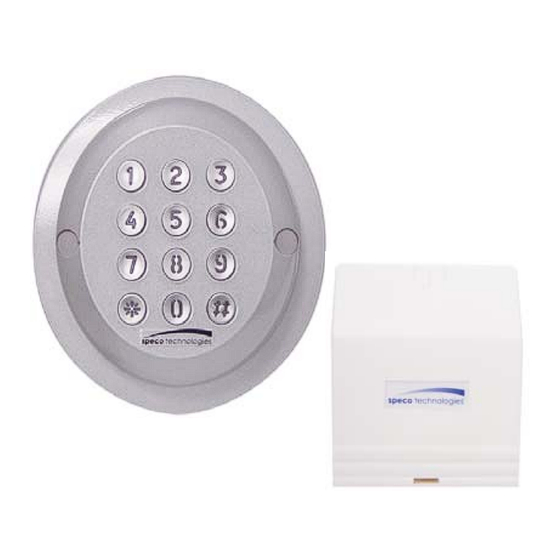

Keypad shown
with back plate
1
Advertisement
Table of Contents
Related Manuals for Speco SG-W300
Summary of Contents for Speco SG-W300
-
Page 1: Key Features
Speco Technologies weatherproof architectural backlit keypad (SG-W300) is designed to meet most residential, commercial and industrial single door access control requirements. It is a two piece unit that is fully sealed for all environments. The electronics reside in the protected area. - Page 2 Speco Technologies Weatherproof Architectural Backlit Keypad Instruction Manual SG-W300 Request To Exit Function The request to exit input (M-P1 on unit terminal) timer is linked to user in rank 000. Timer • Every field must be a two digit entry.
- Page 3 Programming Chart Speco Technologies SG-W300 Keypad Type 55 # Symbol ‘ ’ cannot be used as a value Master Code Symbol ‘#’ is the enter key in configuration mode Output 1 default timer value From 01 to 99 (seconds) note 1...
- Page 4 Speco Technologies Weatherproof Architectural Backlit Keypad Instruction Manual SG-W300 SG-W300 Specifications: Speco Technologies weatherproof architectural backlit keypad (SG-W300) is designed to meet most residential, commercial and industrial single door access control requirements. It is a two piece unit that is fully sealed for all environments. The electronics reside in the protected area.
Need help?
Do you have a question about the SG-W300 and is the answer not in the manual?
Questions and answers

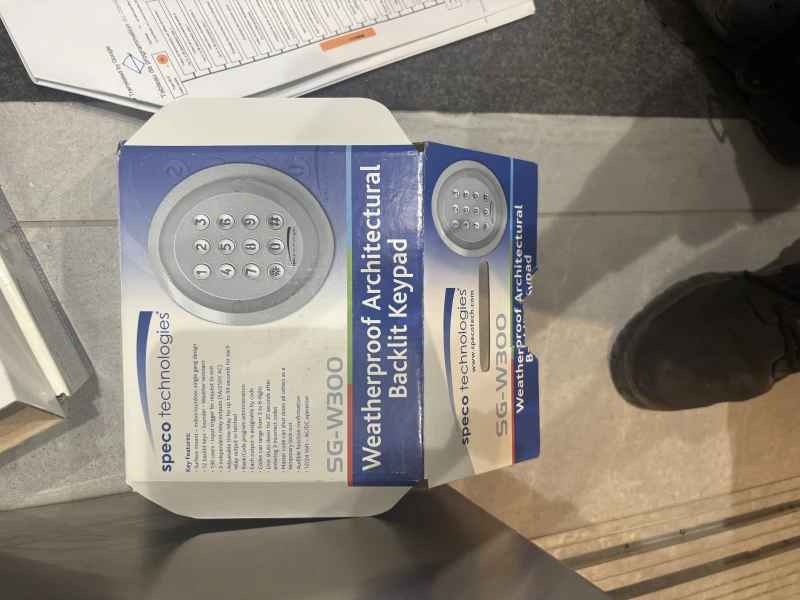

Pas capable de le programmer mon clavier pouvez vous m’aider
To program the Speco SG-W300 keyboard:
1. Enter Programming Mode: Use the master code followed by the `#` key.
2. Set Output Timer Values:
- Output 1: Enter `21 # B 1 (time in seconds from 01 to 99) # * B1`
- Output 2: Enter `22 # B 1 (time in seconds) # * B1`
- Output 3: Enter `23 # (time in seconds) # *`
3. Change Key Illumination:
- To turn ON: Enter `24 # B 1 0 # *`
- To turn OFF or set timed: Enter `24 # B 1 1 # *`
4. Reset to Factory Settings:
- Remove the jumper to reset the master code to `1234` and code length to 4 digits.
- If the unit beeps continuously, remove the jumper to reset it.
Note: The `#` key is used to confirm entries. The `*` key cannot be used as a value.
This answer is automatically generated

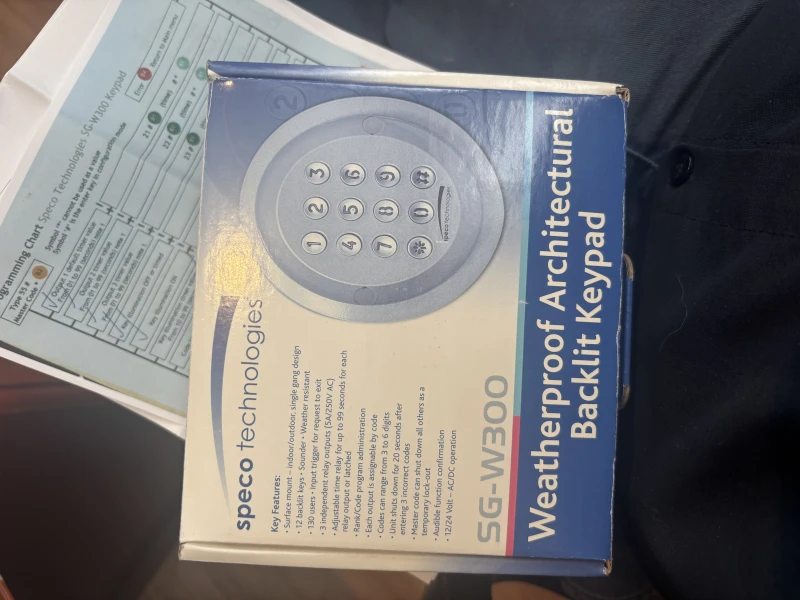

Besoin du programme chart du jeu pad SGW300
