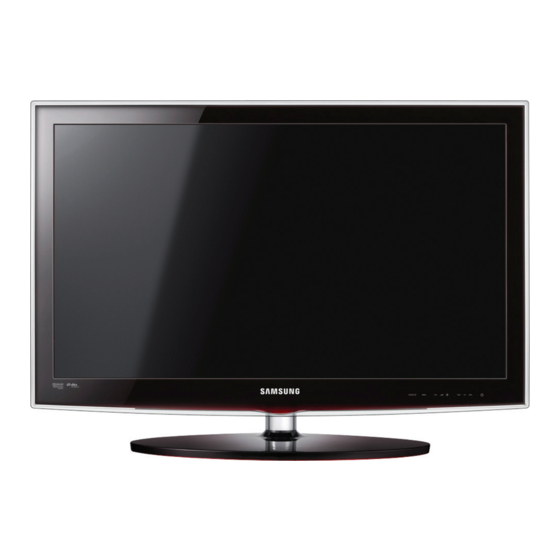

SERVICE
TFT-LCD TV
UE19C4000PW / UE22C4000PW / UE26C4000PW
Refer to the service manual in the GSPN (see the rear cover) for the more information.
LED-TV
Chassis
: N92B
Model
: UE19C4000PW
UE22C4000PW
UE26C4000PW
Manual
1. Precautions
2. Product specifications
3. Disassembly and Reassembly
4. Troubleshooting
5. Exploded View & Part List
6. Wiring Diagram
Contents

Advertisement

Table of Contents
loading

Related Manuals for Samsung UE19C4000PW

Summary of Contents for Samsung UE19C4000PW

  • Page 1 1. Precautions 2. Product specifications 3. Disassembly and Reassembly 4. Troubleshooting 5. Exploded View & Part List 6. Wiring Diagram UE19C4000PW / UE22C4000PW / UE26C4000PW Refer to the service manual in the GSPN (see the rear cover) for the more information.

  • Page 2: Table Of Contents

    Contents 1. Precautions ......................1-1 1-1. Safety Precautions ......................1-1 1-2. Servicing Precautions ..................... 1-2 1-3. Electrostatically Sensitive Devices (ESD) Precautions ..........1-2 1-4. Installation Precautions ....................1-3 2. Product specifications .................... 2-1 2-1. Feature & Specifications ....................2-1 2-2. Detail Factory Option ...................... 2-4 2-3.
  • Page 3 Mideast & Africa http://mea.samsungportal.com © 2010 Samsung Electronics Co.,Ltd. This Service Manual is a property of Samsung Electronics Co.,Ltd. All rights reserved. Any unauthorized use of Manual can be punished under applicable Printed in Korea International and/or domestic law.

  • Page 4: Precautions

    1. Precautions 1. Precautions 1-1. Safety Precautions Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock. 1-1-1. Warnings For continued safety, do not attempt to modify the circuit board. Disconnect the AC power and DC power jack before servicing.

  • Page 5: Servicing Precautions

    1. Precautions 1-2. Servicing Precautions WARNING: An electrolytic capacitor installed with the wrong polarity might explode. Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of this manual. Note: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions.

  • Page 6: Installation Precautions

    1. Precautions 1-4. Installation Precautions For safety reasons, more than a people are required for carrying the product. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.
  • Page 7 1. Precautions Memo...

  • Page 8: Product Specifications

    2. Product specifications 2. Product specifications 2-1. Feature & Specifications Model UE19C4000PW Feature DTV/ATV, 2-HDMI, 1-Component, 1-A/V, D-SUB, 1-SCART, 1-USB2.0, CI Slot ሪ Brightness : 400cd/m ሪ High Contrast Ratio : 40,000:1 ሪ Response Time : 4.5ms ሪ Specifications Item...
  • Page 9 2. Product specifications Model UE22C4000PW Feature DTV/ATV, 2-HDMI, 1-Component, 1-A/V, D-SUB, 1-SCART, 1-USB2.0, CI Slot ሪ Brightness : 400 cd/m ሪ High Contrast Ratio : 40,000:1 ሪ Response Time : 4.5ms ሪ Specifications Item Description LCD Panel 22inch HD 60Hz Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic) Vertical : 47 Hz ~ 75 Hz (Automatic)
  • Page 10 2. Product specifications Model UE26C4000PW Feature DTV/ATV, 2-HDMI, 1-Component, 1-A/V, D-SUB, 1-SCART, 1-USB2.0, CI Slot ሪ Brightness : 400 cd/m ሪ High Contrast Ratio : 40,000:1 ሪ Response Time : 4.5ms ሪ Specifications Item Description LCD Panel 26inch HD 60Hz Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic) Vertical : 47 Hz ~ 75 Hz (Automatic)

  • Page 11: Detail Factory Option

    19D6THOC ~ 52L6AFOC/ 19O6TH0E 22P6TH0E 26P6AH0E EU/EU_ltaly//NORDIG/AD_au/ Local set UC4000/UC5000/UC5100/ Model UC4000 UC4000 UC4000 UC6000 TUNER DRXKSEMCO/DRXKALPS/..DRXKSEMCO DRXKSEMCO DRXKSEMCO SAMSUNG / Etron SAMSUNG SAMSUNG SAMSUNG Light Effect On/Off SUWON/SESK/SHE/TTSEC/ Ch Table SDMA/ SERK/SEIN/SAVINA/SIEL/TSE Country Front Color S-BLK/S-R-BLK/S-C-Gray/... T-R-BLK T-R-BLK T-R-BLK...

  • Page 12: Accessories

    Remote Control & Batteries 26" : BN59-01014A (AAA x 2) Power Cord 3903-000525 26" : BN63-06542B Cover-Bottom 22"/19" : BN96-10168C Samsung Electronics Service center 26" : BN96-13156A Stand 22"/19" : BN96-10168C Screw 6003-000133 (for the stand - M4, L6) Owner’s Instructions...
  • Page 13 2. Product specifications CHANNEL FREQUENCY TABLE „ 1. OUTPUT FREQUENCY : ANALOG fv:45.75MHz, fs:41.25MHz DIGITAL Fc:44MHz 2. TUNING STEP SIZE : FIRST PLL 250KHz SECOND PLL 62.5KHz OSD CH NO CH NO CH NO CH NO Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC 72.
  • Page 14 2. Product specifications OSD CH NO CH NO CH NO CH NO Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC 499.25 ULTRA 498.00 499.25 505.25 ULTRA 504.00 505.25 511.25 ULTRA 510.00 511.25 517.25 ULTRA 516.00 517.25 523.25 ULTRA 522.00 523.25 529.25...

  • Page 15: New Features Explanation

    Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.
  • Page 16 PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g. IP Address: 123.456.789.**) 2. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager programme will be installed.
  • Page 17 The Divx DRM, Multi-audio, embedded caption does not supported. ✎ Samsung PC Share manager should be permitted by the firewall programme on your PC. ✎ When you use Media Play mode through a network connection, According to functions of the provided server: The sorting method may vary.
  • Page 18 2. Product specifications Advanced Features Screen Display ¦ Move to the file you desired using the up/down/right/left buttons and then press the ENTERE or � (Play) button. The file is played. ✎ Supports the View Devices and Home in Media Play homepage. Information: Videos /Movie 01.avi...
  • Page 19 2. Product specifications y Supported Video Formats Frame rate Bit rate File Extension Container Video Codec Resolution Audio Codec (fps) (Mbsp) Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 XviD 1920x1080 6 ~ 30 *.avi MP3 / AC3 / LPCM / *.mkv ADPCM / DTS Core H.264 BP / MP / HP...
  • Page 20 2. Product specifications Advanced Features Playing movie file continuously (Resume Play) If you exit the playing Videos function, it can be played later from the point where it was stopped. 1. Select the movie file you want to play continuously by pressing the ◄...
  • Page 21 2. Product specifications Playing the Multiple Files ¦ Playing the selected video/music/photo files Videos 2 files selected Page /Movie 01.avi 1. Press the Yellow button in the file list to select the desired file. 2. Repeat the above operation to select multiple files. Movie 01.avi Movie 02.avi ✎...
  • Page 22 2. Product specifications Advanced Features Videos/Music/Photos Play Option menu During playing a file, press the TOOLS button. Category Operations Videos Music Photos Title You can move the other file directly. > Repeat Mode You can play movie and music files repeatedly. >...

  • Page 23: Disassembly And Reassembly

    3. Disassembly and Reassembly 3. Disassembly and Reassembly This section of the service manual describes the disassembly and reassembly procedures for the UE19/22/26C4000PW LED TV. WARNING: This LED TV contains electrostatically sensitive devices. Use caution when handling these components. 3-1. Disassembly and Reassembly Cautions: 1.
  • Page 24 3. Disassembly and Reassembly Description Picture Description Screws 3. Lift up the rear-cover. 4. Remove the left and right speaker. 5. Lift up the stand link. Remove the 4 screws of bracket stand link. 6003-000133 6. Remove the 4 screws of main board and 5 screws of IP board.
  • Page 25 3. Disassembly and Reassembly Screw Size Code No. A (mm) B (mm) C (mm) Q’ty 6003-001003 8.3~8.4 12~ 12.4 4~4.15 19"/22"/26" : 10EA 6003-000133 8.3~8.4 7.9~8.3 3.70~3.83 26" : 5EA, 22"/19" : 4EA 6001-002283 6.3~6.5 5.0~5.6 2.87~2.98 19"/22"/26" : 7EA 6001-000321 5.5~6.5 9.5~10.0...

  • Page 26: Troubleshooting

    4. Troubleshooting 4. Troubleshooting 4-1. Troubleshooting 4-1-1. Previous check Check the various cable connections first. • Check to see if any cables are damaged or burnt. • Check to see if there is a disconnected or loose cable connection. • Check to see if the cables are connected according to the connection diagram. Check the power input to the Main Board.
  • Page 27 4. Troubleshooting 4-1-2. No Power The LEDs on the front panel do not work when connecting the power cord. Symptom The SMPS relay does not work when connecting the power cord. The units appears to be dead. The IP relay or the LEDs on the front panel does not work when connecting the power cord if the cables are improperly connected or the Main Board or SMPS is not functioning.
  • Page 28 4. Troubleshooting...
  • Page 29 4. Troubleshooting 4-1-3. No Video (Analog PC signal) Symptom Audio is normal but no picture is displayed on the screen. Check the PC source Major Check the Main Chipset. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 30 4. Troubleshooting...
  • Page 31 4. Troubleshooting WAVEFORMS PC input (V-sink , H-sink , R/G/B) LVDS output...
  • Page 32 4. Troubleshooting 4-1-4. No video (HDMI1, 2 - Digital signal) Symptom Audio is normal but no picture is displayed on the screen. Check the HDMI source. Major Check the HDMI switch, Check the Main Chipset. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 33 4. Troubleshooting...
  • Page 34 4. Troubleshooting WAVEFORMS HDMI input (RX_Data, RX_Clk) LVDS output...
  • Page 35 4. Troubleshooting 4-1-5. No Video (Tuner_CVBS) Symptom Audio is normal but no picture is displayed on the screen. Check the Tuner CVBS source. Major Check the Tuner, Check the Main Chipset. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 36 4. Troubleshooting 4-11...
  • Page 37 4. Troubleshooting WAVEFORMS LVDS output 4-12...
  • Page 38 4. Troubleshooting 4-1-6. No Video (Tuner DTV) Symptom Audio is normal but no picture is displayed on the screen. Check the DTV source. Major Check the Tuner, Check the Main Chipset. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 39 4. Troubleshooting 4-14...
  • Page 40 4. Troubleshooting WAVEFORMS LVDS output 4-15...
  • Page 41 4. Troubleshooting 4-1-7. No Video (Video CVBS) Symptom Audio is normal but no picture is displayed on the screen. Check the Video CVBS source Major Check the Main Chipset. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 42 4. Troubleshooting 4-17...
  • Page 43 4. Troubleshooting WAVEFORMS CVBS OUT (Grey Bar) LVDS output 4-18...
  • Page 44 4. Troubleshooting 4-1-8. No Video (Component) Symptom Audio is normal but no picture is displayed on the screen. Check the Component source Major Check the Main Chipset. checkpoints This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. Power indicator LED is off.
  • Page 45 4. Troubleshooting 4-20...
  • Page 46 4. Troubleshooting WAVEFORMS Compnent_Y (Gray scale) / Pb / Pr (Color bar) LVDS output 4-21...
  • Page 47 4. Troubleshooting 4-1-9. No Sound Symptom Video is normal but there is no sound.. When the speaker connectors are disconnected or damaged. Major When the sound processing part of the Main Board is not functioning. checkpoints Speaker defect. Check the source and check the connection of sound cable Input the sound source properly.
  • Page 48 4. Troubleshooting 4-23...
  • Page 49 4. Troubleshooting WAVEFORMS Speaker out 4-24...

  • Page 50: Alignments And Adjustments

    4. Troubleshooting 4-2. Alignments and Adjustments 4-2-1. General Alignment Instuction Usually, a color LED-TV needs only slight touch-up adjustment upon installation. Check the basic characteristics such as height, horizontal and vertical sync. Use the specified test equipment or its equivalent. Correct impedance matching is essential.

  • Page 51: Factory Mode Adjustments

    4. Troubleshooting 4-3. Factory Mode Adjustments 4-3-1 Entering Factory Mode To enter ‘Service Mode’ Press the remote -control keys in this sequence : - If you do not have Factory remote - control Power OFF INFO MENU MUTE Power On 4-3-2 How to Access Service Mode Using the Customer Remote Turn the power off and set to stand-by mode.
  • Page 52 UC6300/UC6400/UC6400H/UC6500/UC6510/UC6530/ Model UC4000 UC6540/UC6550/UC6600/UC6620/UC6630/UC6700/UC6720/ Select Model UC6730/UC6740/UC6800/UC6830/UC6900/UC6900H/ UC8000/ PC420/PC430/PC431/PC432/PC450/PC451/PC480/PC520/ PC530/PC531/PC540/PC541/PC550/PC551/PC560/PC580/ PC590/PC670/PC6100/PC6400/PC6500/PC7000/PC7700/ PC8000 EU : DRXKSEMCO DRXKSEMCO/S2Semco/T2CXD/DRXKSEM_E/ AU : TUNER DRXKSEMCO DRXKALPS/DRXKSEN_2/DRXKXG DRXKALPS satellite : S2Semco SAMSUNG / SAMSUNG SAMSUNG Etron Select Design NONE/W-MILKY/T-M-Brn/T-W-Brn/T-W-Gray/W-D-Gray/W-M- Front Color for Illuminance Whit/W-Violet/T-C-Gray/T-R-BLK/S-BLK/S-RBLK/S-C-Gray/ Sensor 4-27...
  • Page 53 4. Troubleshooting Control „ Factory Name Data Range Control EDID Sub Option Shop Option Sound Factory Name Data EDID EDID ON/OFF EDID WRITE ALL … EDID WRITE PC … EDID WRITE … HDMI EDID WRITE … Download EDID data to EEPROM. HDMI1 1.
  • Page 54 4. Troubleshooting Factory Name Data Range Hotel Option Hotel Mode SI Vender … Power On … Channel Channel Type … Power On Volume … Min Volume … Max Volume … Panel Button Lock … Power On Source … Factory Name Data Range Shop Option...
  • Page 55 4. Troubleshooting „ Factory Name Data Range Test Pattern Panel Auto Setting Panel Display fixed Time Logic Usb D/L Tuner Status Factory Name Data Range Test Pattern Test for Input of Scaler. OFF/ White/Grey/Black Pattern Sel If you can see pattern well, there is Red/Green/Blue problem at input of Scaler.
  • Page 56 4. Troubleshooting ISDB-T FFT Size_1 Not modified Guard Interval_1 Not modified Freq. Offset_1 Not modified SNR_1 Not modified IF AGC_1 Not modified TMCC Lock_1 Not modified TS Packet_1 Not modified Master Lock_1 Not modified A_Modulation_1 Not modified A_Code Rate_1 Not modified A_Timer Not modified InterLeave_1...
  • Page 57 4. Troubleshooting ADC/WB „ Factory Name Data Range ADC/WB ADC Target ADC RESULT Factory Name Data Range AV Calibration Success Success / Failure Comp Calibration Success Success / Failure PC Calibration Success Success / Failure HDMI Calibration Success Success / Failure Factory Name Data Range...
  • Page 58 4. Troubleshooting 2nd_PC_R_High 2nd_PC_G_High 0 ~ 1023 2nd_PC_B_High 2nd_PC_Delta 0 ~ 7 2nd_HDMI_R_Low 2nd_HDMI_G_Low 0 ~ 1023 2nd_HDMI_B_Low 2nd_HDMI_R_High 2nd_HDMI_G_High 0 ~ 1023 2nd_HDMI_B_High 2nd_HDMI_Delta 0 ~ 7 Factory Name Data Range ADC RESULT 1st_Y_GH 0 ~ 255 1st_Y_GL 0 ~ 255 1st_Cb_BH 0 ~ 255 1st_Cb_BL...

  • Page 59: White Balance -Calibration

    4. Troubleshooting 4-4. White Balance - Calibration 4-4-1 White Balance -Calibration 1. Calibration AV Calibration Comp Calibration PC Calibration HDMI Calibration 4-4-2 White Balance - Adjustment (low light) (hight light) Sub Bright Sub Contrast 3. W/B R offset R gain G offset G gain B offset...

  • Page 60: Servicing Information

    4-6. Servicing Information 4-6-1 USB Download Method Samsung may offer upgrades for TV’s firmware in the future. Please contact the Samsung call center to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on your TV.

  • Page 61: How To Upgrade Sub Micom With Ddc Manager

    4. Troubleshooting 4-7. How To Upgrade Sub Micom With Ddc Manager 4-7-1. TV Sub S/W Order Description Connect DDC MANAGER to the TV Set with D-SUB cable. And Power on. (USB type : MTI-2510 / parallel type : MTI-2059) Enter the factory mode. Control - EDID - EDID ON/OFF Select ON.
  • Page 62 4. Troubleshooting Order Description Push the ‘Program’ Button. (It takes quite a bit of time. You can wait or close the DDC tool by force and open tool and load file again.) Push the ‘Program’ Button again. (It takes about 100 seconds.) If update completes, TV set will booting automatically.

  • Page 63: Pcb Diagram

    4. Troubleshooting 4-8. PCB diagram PCB layout_ TRIDENT(SX1) „ PCB layout_ MSTAR(X4) „ 4-38...
  • Page 64 4. Troubleshooting Main TOP_TRIDENT(SX1) „ Main TOP_MSTAR(X4) „ 4-39...
  • Page 65 4. Troubleshooting Main Inner(2)_TRIDENT(SX1) „ Main Inner(2)_MSTAR(X4) „ 4-40...
  • Page 66 4. Troubleshooting Main Inner(3)_TRIDENT(SX1) „ Main Inner(3)_MSTAR(X4) „ 4-41...
  • Page 67 4. Troubleshooting Main Bottom_TRIDENT(SX1) „ Main Bottom_MSTAR(X4) „ 4-42...
  • Page 68 4. Troubleshooting Power_19" SMPS „ Power_22" SMPS „ 4-43...
  • Page 69 4. Troubleshooting Power_26” SMPS „ 4-44...

  • Page 70: Exploded View & Part List

    5. Exploded View & Part List 5. Exploded View & Part List 5-1. UE19C4000PW Exploded View R001A M0014 CB01 PANEL F001A M0525 SB04A P001A 5-1-1. UE19C4000PW Parts List Location No. Code No. Description & Specification Q’ty SA/SNA Remark F001A BN96-13378B ASSY COVER P-FRONT;UC4000 19,EO,PC+PC,V2...
  • Page 71 5. Exploded View & Part List 5-2. UE19C4000PW Parts List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark UE19C4000PWXXH S001A BN90-02602A ASSY STAND;UC4000 22 MASB1 BN96-10168C ASSY STAND P-BODY;UC4000 22,PC SB04A BN96-11163D ASSY STAND P-BASE;UC4000 19/22,PC+ABS,V0 BN90-02621B ASSY COVER FRONT;UC4000 19...
  • Page 72 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,PLAST ..4 T0087 1203-002835 IC-POSI.FIXED REG.;KIA7805AF,DPAK,3P,6.6 ..4 T0087 1203-002898 IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6..4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, ..4 1203-005538 IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4..4 1203-006013 IC-DC/DC CONVERTER;AOZ1031AI,SO-8,8P,4.9...
  • Page 73 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 MR316 2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 ..4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 ..4 TR30 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 ..4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 ..4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 ..4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 ..4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 ..4 2007-007306...
  • Page 74 5. Exploded View & Part List Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark ..4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 ..4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 ..4 AD480 2203-006841 C-CER,CHIP;1000nF,10%,16V,X5R,TP,1005 ..4 AD480 2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,TP,1005 ..4 AD480 2203-007233 C-CER,CHIP;22000nF,10%,16V,X5R,TP,3216 ..4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 ..4 T0052 2703-000296...
  • Page 75 BN39-01154C CBF SIGNAL;Chelsea Slim, STEREO Plug to ...3 M0114 BN39-01154F CBF SIGNAL;UE40B7000WWXXC,24P/20P,30AWG, ...3 EC07 BN39-01154H CBF SIGNAL;UE40B7000WWXXC,RCA 3PIN,30AWG ...3 REMO2 BN59-01014A REMOCON;TM1050,SAMSUNG,20PIN SINGLE,48KE ...3 BN61-05596A HOLDER-WIRE CABLE;LED TV,LDPE,T0.8,L150, ...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC ...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, ACCE4 BN96-13189K ASSY ACCESSORY-MANUAL;UE19C4000PWXXH...

  • Page 76: Wiring Diagram

    6. Wiring Diagram 6. Wiring Diagram 6-1. Wiring Diagram 19"/22" „...
  • Page 77 6. Wiring Diagram 26" „ Panel...

  • Page 78: Connector

    6. Wiring Diagram 6-2. Connector CN1403_HD (to Panel) UC4000 CN902(PC) Panel_VCC ODD[CLK]+ PC_RED PC_5V Panel_VCC ODD[CLK]- PC_GREEN IDENT_PC Panel_VCC PC_BLUE R_FANET Panel_VCC ODD[2]+ T_FANET SDA_DOWN Panel_VCC ODD[2]- PC_HS PC_VS ODD[1]+ SCL_DOWN ODD[1]- TCON_WP CN901(PC/DIV SOUND) FORMAT ODD[0]+ ODD[0]- PC_SL_IN PC_SR_IN ODD[3]+ SDA_TCON CN802(COMPONENT)
  • Page 79 6. Wiring Diagram CN1001 (HDMI1) HDMI1_RX2+ HDMI1_RXCLK- HDMI1_RX2- HDMI_CEC HDMI1_RX1+ HDMI1_RX1- HDMI1_RX0+ HDMI1_RX0- HDMI1_RXCLK+ CN1002_H2 (HDMI2) HDMI2_RX2+ HDMI2_RXCLK- HDMI2_RX2- HDMI_CEC HDMI2_RX1+ HDMI2_RX1- HDMI2_RX0+ HDMI2_RX0- HDMI2_RXCLK+ OP1301 (SPDIF) SPDIF_OUT CN1301 (HEADPHONE) HP_SL HP_IDENT HP_SR CN1302 (SPEAKER)

  • Page 80: Connector Functions

    6. Wiring Diagram 6-3. Connector Functions Connector Functions Supply main power and dimming signal from IP board to Main Board. CN210   IP CNM802 CN1403_22/CN1402_26   T-CON The LVDS signal transfered from Main Board to Panel. 6-4. Cables LEAD (Main-IP 18P) LVDS (Main - TCON) 26"...

This manual is also suitable for:
