Summary of Contents for Wacker Neuson FUH35

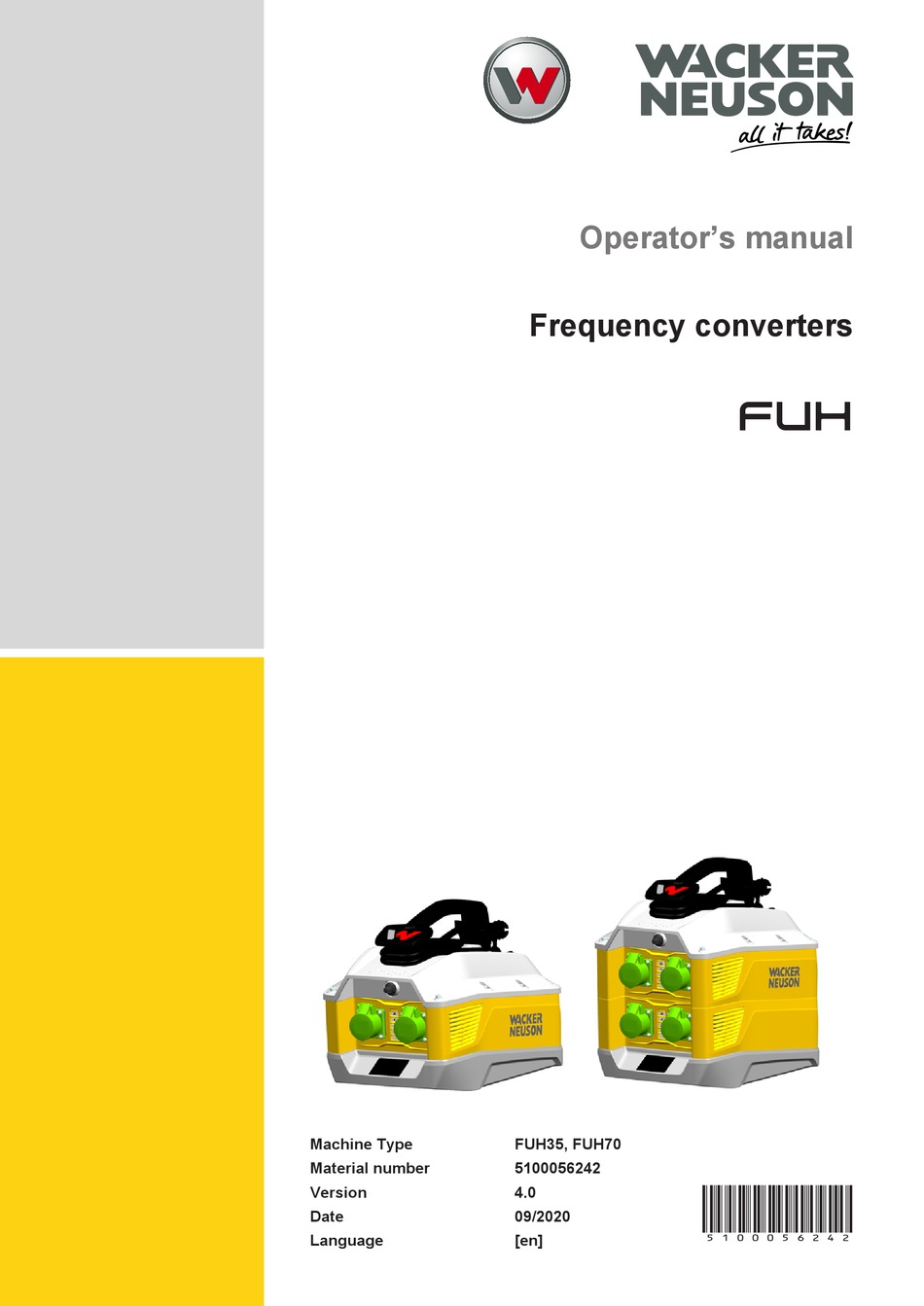

- Page 1 Operator’s manual Frequency converters Machine Type FUH35, FUH70 Material number 5100056242 5100056242 Version Date 09/2020 Language [en]...
- Page 2 Violations of legal regulations, in particular of the copyright protection, will be subject to civil and criminal prosecu- tion. Wacker Neuson Produktion GmbH & Co. KG reserves the right to change its products and their technical specific- ations for further technical development at any time without any claim to changes to machines already delivered.
-
Page 3: Table Of Contents
EC Declaration of Conformity Preface Introduction ............................ 6 Storage location of the operator's manual .................. 6 Accident prevention regulations...................... 8 Wacker Neuson Contact ........................ 8 Limitation of liability........................... 8 Labeling on the machine........................ 8 Use of the operator’s manual...................... 9 Usage Designated use .......................... - Page 4 Contents 10.1 Troubleshooting .......................... 25 Storage 11.1 Machine ............................ 28 11.2 Accumulator ............................ 28 Decommissioning 12.1 Final shutdown.......................... 29 Technical Data 13.1 General instructions ........................ 30 13.2 Noise information .......................... 30 13.3 FUH.............................. 30 13.4 Extension cable .......................... 32 Operator’s manual | | 5100056242 | 09/2020 | [en]...
-
Page 5: Ec Declaration Of Conformity
EC Declaration of Conformity Manufacturer Wacker Neuson Produktion GmbH & Co. KG, Wackerstraße 6, D-85084 Reichertshofen This declaration of conformity is issued under the sole responsibility of the manufacturer. Product FUH35, FUH70 Product type Converter Function of product Conversion of voltage and frequency... -
Page 6: Preface
This operator’s manual is not a manual for extensive maintenance or re- pair work. Such work must be carried out by Wacker Neuson Service or by technically trained personnel. The Wacker Neuson machine must be operated and maintained in accordance with the instructions in this oper- ator’s manual. -
Page 7: Storage Location Of The Operator's Manual 2.2
Preface Storage location of the operator's manual 2.2 Explanation of symbols Symbol Explanation 1., 2., 3… Indicates an activity. The sequence of the steps must be observed. ⇨ Indicates a result or an intermediate result of an action. ✓ Indicates prerequisites that must be established for the activity. ●... -
Page 8: Accident Prevention Regulations
Wacker Neuson Contact Depending on the country, the Wacker Neuson contact is a Wacker Neuson Service, a Wacker Neuson subsidiary or a Wacker Neuson dealer. On the Internet at - http://www.wackerneuson.com. -
Page 9: Use Of The Operator's Manual 2.7
Variant-dependent components that are not in- cluded in the scope of delivery can also be described. Wacker Neuson reserves the right to change the information in this oper- ator's manual without notice. It must be ensured that any changes or additions made by the manufac- turer are immediately incorporated into this operator’s manual. -
Page 10: Usage
Usage 3.1 Designated use Usage Designated use Designated use also includes observing all notes and safety instructions in this operator’s manual and observing the prescribed care and mainten- ance instructions. The machine may only be used to operate internal and external vibrators. The machines to be connected must have the appropriate specification (voltage, frequency, number of phases) for connection. -
Page 11: Safety
Safety Safety symbols and signal words 4.1 Safety Safety symbols and signal words The following symbol identifies safety instructions. It is used for warning against potential personal risk or danger. DANGER DANGER identifies a situation causing death or serious injury if it is not avoided. -
Page 12: Structual Changes
• When opening of the machine and permanent removal of compon- ents. • Installation of spare parts that do not come from Wacker Neuson or are not equivalent in design and quality to the original parts. • Attachment of accessories of any kind that do not originate from Wacker Neuson. -
Page 13: Obligations Of The Operator 4.5
Safety Obligations of the operator 4.5 Obligations of the operator • Know and implement applicable health and safety regulations. • In a risk assessment, identify hazards arising from working conditions at the place of use. • Create operating instructions for the operation of this machine. •... - Page 14 Safety 4.7 General safety instructions 4.7.1 Workplace • Before starting work, familiarize yourself with the working environ- ment, e.g. load-bearing capacity of the floor or obstacles in the envir- onment. • Secure work area to public transport area. • Necessary protection of walls and ceilings, e.g. in trenches. •...
-
Page 15: Specific Safety Instructions When Operating Electrical Appliances
Safety Specific safety instructions when operating electrical appli- ances 4.8 4.7.3 Handling and use • Handle machines with care. Do not operate machines whose com- ponents or control elements are defective. Have defective compon- ents or control elements replaced immediately. Machines with defect- ive components or control elements entail a high risk of injury! •... - Page 16 • Only use tested extension cables that are suitable for use on con- struction sites: – H05RN-F or preferably – Wacker Neuson recommends H07RN-F, a SOOW cable or a country-specific equivalent version. • Immediately replace damaged extension cables (e.g. cracks in the sheath) or loose plugs and couplings.
-
Page 17: Maintenance 4.9
Safety Maintenance 4.9 Maintenance • This machine must not be serviced, repaired, adjusted or cleaned when switched on. • Observe maintenance intervals. • Observe maintenance plan. Have Wacker Neuson Service perform any work not listed. • Reinstall the safety devices on the machine after every maintenance or repair. -
Page 18: Description Of The Machine
Description of the Machine 5.1 Components Description of the Machine Components Plug receptacle with protective cover Winding aid Carrying handle / central suspension Power cable Ventilation slots Deck / Decks Plug receptacle with protective cover Winding aid Carrying handle / central suspension Power cable Ventilation slots Deck / Decks... -
Page 19: Control Elements 5.2
Description of the Machine Control elements 5.2 Control elements 1 Rotary knob for frequency adjustment SC (optional) 2 Control lights 5.2.1 Control lights 1 Control light Service 2 Control light Overvoltage 3 Control light Overtemperature 4 Control light Overcurrent 5 Control light Operation The control lights provide information about the operating status. -
Page 20: Safety And Information Labels
Description of the Machine 5.3 Safety and information labels Safety and information labels WARNING Injury hazard due to missing or damaged labels and signs! Safety labels contain important information to protect the operator. ► Keep all safety, warning and operating instructions on the machine in a clearly legible condition. -
Page 21: Transportation
Transportation Lifting the machine 6.1 Transportation Lifting the machine WARNING Danger of falling! The falling machine can cause serious injuries, e.g. by crushing. ► Only use suitable and tested lifting gear and slings (safety hooks) with sufficient lifting capacity. ► Only lift the machine by the central suspension. ►... -
Page 22: Commissioning
Commissioning 7.1 Putting into operation for the first time Commissioning Putting into operation for the first time The machine is ready for operation after unpacking. Inspection before commissioning Checking the machine • Check the machine and all components for damage. •... -
Page 23: Operation
Operation Putting into operation 8.1 Operation Putting into operation Switch off all machines to be connected with the respective equip- ment switch. If necessary, connect the permissible power cable to the converter. Plug in the machine with the plug. Machine is ready for operation after insertion. Switch on the machine with the On/Off switch. -
Page 24: Maintenance
● 9.1.2 Maintenance work Check all machine parts and components for damage. Have any damage repaired by your Wacker Neuson representative. 9.1.2.1 Cleaning the machine Clean all components after each operation. • Only clean machine with water and wipe with a damp, clean cloth. -
Page 25: Malfunctions
Malfunctions Troubleshooting 10.1 Malfunctions 10.1 Troubleshooting Fault Cause Remedy No malfunction. • Switch on. No malfunction. • Normal operation. Machine is working. • The current con- 1) Reduce the current consump- sumption of the con- tion of the connected ma- Overcurrent control light nected machines is chines. - Page 26 You will recognize this fault if the machine does not start and only hums or if the speed changes without changing the load. ** Have this work performed by Wacker Neuson Service. Operator’s manual | FUH | 5100056242 | 09/2020 | [en]...
- Page 27 Not color coded. None. None. Only needed for the Wacker Neuson contact. 10.1.2 Explanation of control lights for machines with several intermediate decks For machines with several intermediate decks, different states per ma- chine can be seen for each intermediate deck. Explanation using an ex-...
-
Page 28: Storage
Storage 11.1 Machine Storage 11.1 Machine In order to avoid possible damage, the following points must be observed: • Always store the machine, accumulator and battery charger separ- ately. • Do not store outdoors. • Store dry and free of dust. •... -
Page 29: Decommissioning
Decommissioning Final shutdown 12.1 Decommissioning 12.1 Final shutdown 12.1.1 Disposal of old electrical and electronic equipment Disposal of old electrical and electronic equipment Professional disposal of this machine avoids negative effects on human health and the environment, helps with the targeted treatment of pollut- ants and makes it possible to recycle valuable raw materials. -
Page 30: Technical Data
• L was determined according to EN ISO 11201. During operational use, values may differ depending on the prevailing op- erating conditions. 13.3 Type FUH35/2/042 Material number 5100047262 Rated current [A] Rated voltage [V] Rated frequency [Hz] 50 - 60... - Page 31 Technical Data FUH 13.3 Type FUH35/2/042 Material number 5100047262 Plug receptacle type CEE 3P 32A 4H 50V 100-200Hz Number of plug receptacles Operating temperature range [°C] -15 - 40 °C Storage temperature range [°C] -25 - 50 °C Protection class...
-
Page 32: Extension Cable
Technical Data 13.4 Extension cable Type FUH70/6/042 SC Material number 5100047264 Output current [A] Output voltage [V] 0 - 42 Output frequency [Hz] 0 - 200 Nominal output power [kW] 0 - 3,4 Output phases [~] Length [mm] Width [mm] Height [mm] Operating weight [kg] 30,5... - Page 33 Technical Data Extension cable 13.4 Machine Voltage Extension Strand cross- section FUH35/2/042 230 1~ ≤ 63 ≤ 105 ≤ 167 FUH70/4/042 230 1~ ≤ 38 FUH70/4/042 SC ≤ 62 FUH70/6/042 SC Example You have a converter e.g. FUH70/4/042 and want to use an extension cable of 50 m length.
- Page 36 Wacker Neuson Produktion GmbH & Co. KG Wackerstraße 6 D-85084 Reichertshofen Tel.: +49 8453 340-0 EMail: service-LE@wackerneuson.com www.wackerneuson.com Material number: 5100056242 Language: [en]...
