810J-3S BASEBALL BACKSTOP
3
1
3
36
2
2
72
42
28
P06BS818
NOTE: SPECIFICATIONS ARE SUBJECT TO CHANGE
DO NOT SCALE DRAWING
Rear top post angle fitting LA-810BS-TPOSTANGFIT
Front top post L fitting LA-810BS-TPOSTLFIT
1/2 x 3/4 Set Screw Zinc
DATE: 10/5/09
BASEBALLBACKSTOP
OPTIONAL WHEEL ASSEMBLY
(ATTACHES TO BASE OF
FRONT UPRIGHTS "F" AT PT. "X")
LA-AFIT238X238
LA-810BS-3WAYL or R
DRAWN BY: AFS
MODEL
810J-3S
PORTABLE
CORNER
DETAIL
Advertisement
Table of Contents
Related Manuals for Steelcraft 810J-3S
Summary of Contents for Steelcraft 810J-3S

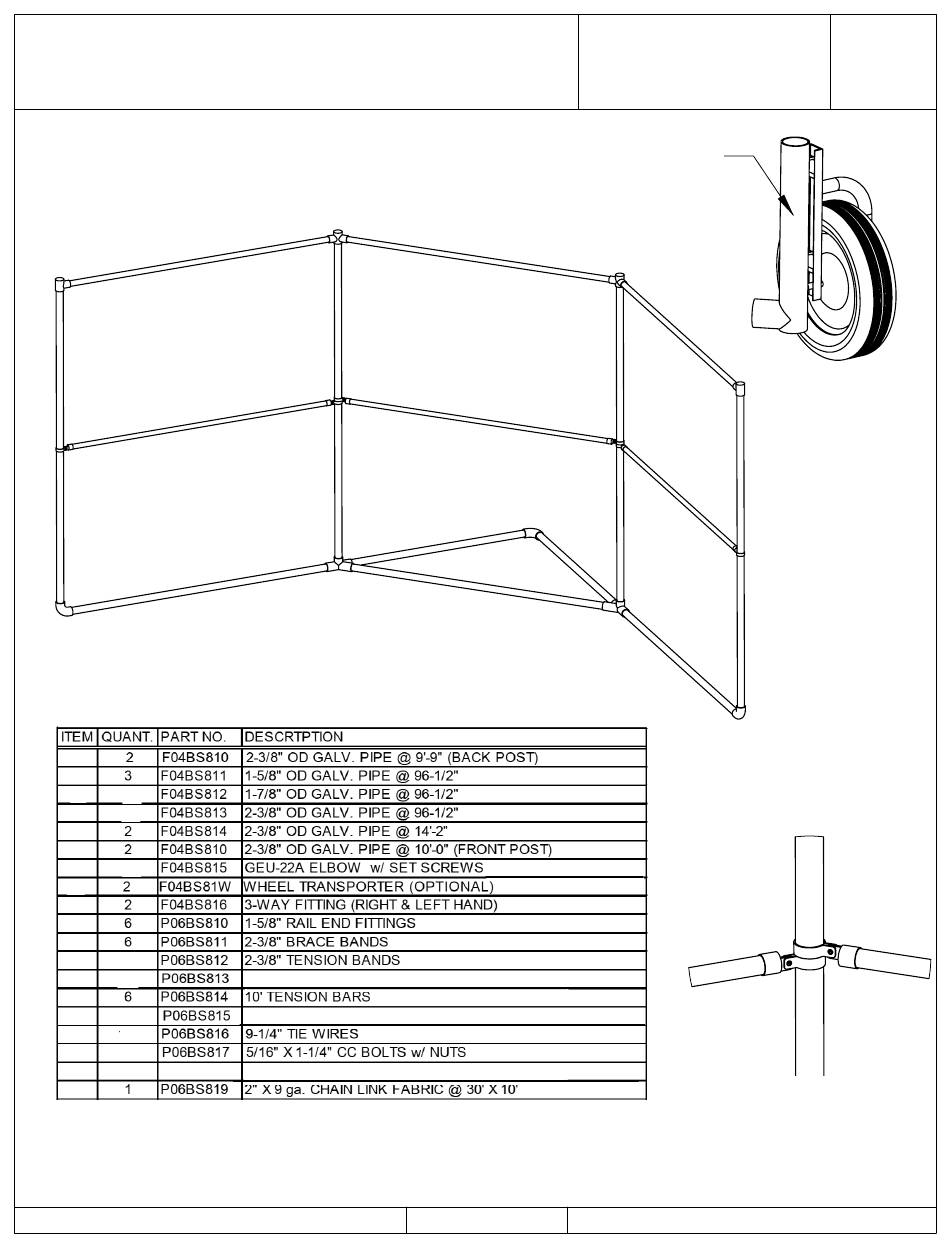

- Page 1 P.O. Box 90365 - Pasadena, CA 91109 BASEBALLBACKSTOP PHN 626-798-7401 FAX 626-798-1482 OPTIONAL WHEEL ASSEMBLY (ATTACHES TO BASE OF FRONT UPRIGHTS "F" AT PT. "X") 810J-3S BASEBALL BACKSTOP LA-AFIT238X238 LA-810BS-3WAYL or R Rear top post angle fitting LA-810BS-TPOSTANGFIT Front top post L fitting LA-810BS-TPOSTLFIT P06BS818...
- Page 2 MODEL STEELCRAFT PRODUCTS 810J-3S PORTABLE P.O. Box 90365 - Pasadena, CA 91109 BASEBALL BACKSTOP PHN 626-798-7401 FAX 626-798-1482 ATTACHMENT POST WITHOUT WHEEL ASSEMBLY 10'-1" 20'-6" PLAN VIEW 10'-2" FRONT ELEVATION ASSEMBLY INSTRUCTIONS 1. Assemble the two skids on the ground to form a right angle. Slide the 3 way fittings (G) on each skid pipe.
