Bluetti PV220 User Manual

Solar Panel
User Guide
Model: PV220
Contact Us:
www.bluettipower.com
service@bluettipower.com
User Guide

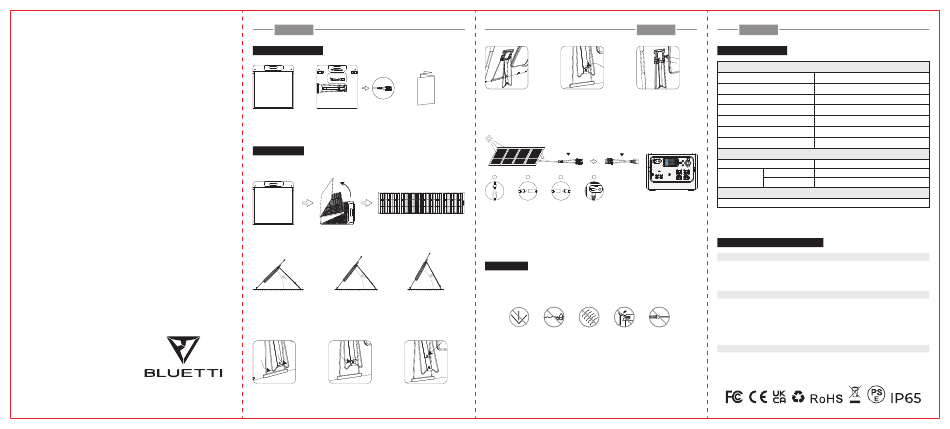

What is in the box
Solar Panel MC4 Cable User Manual &
Warranty Card
How to use
❶ Unfold
❷ Adjust the kickstand
❸ How to use the kickstand
Open the kickstand, adjust the angle, stabilize the panel, fold the kickstand.
Pull out Unbuckle Buckle up
User Guide
Buckle up Press to fix
Fix
❹ Connect to power station
MC4 Connectors Solar Charging Cable
1 2 3 4
Note:
Use ONLY ONE PV220 solar panel with EB55,EB70.
Whether connected in series or parallel, make sure the total voltage of
solar panels is under the power station's input voltage limit.
Attention
Regular inspection and maintenance are required to prolong the lifespan of
solar panels.
No fall No soak No bend No shading No scratch
Warning:
Do not use solar panels in extreme weather conditions like thunderstorms,
floods, typhoons, etc.
Always use solar panels within the specified temperature range
(14-149°F/-10-65°C).
User Guide
Technical details
PV220
Maximum Power(Pm) 220W*
Open circuit voltage 21.6V
Short circuit current 13.5A
Cell efficiency Up to 23.4%
Cell lamination ETFE
Cell type Monocrystalline silicon
Operating temperature 14-149°F/-10-65°C
General
Weight 20.5Ibs / 9.3Kg
Unfolded 94.2*23.8in / 2395*605mm
Dimensions
Folded 23.8*25.1*1.7in / 605*638*45mm
Warranty
EB55
12 Months
* STC: Irradiation 1000W/m 2 , cell temperature 25°C, atmospheric mass
number AM 1.5, measurement tolerance ±3 % (Pm).
Frequently asked questions
Is the solar panel waterproof ?
No. The solar panel is IP65 water-resistant that provides protection against
water splash. Please do not leave it in the rain or water for a long time.
What will affect the final conversion efficiency of solar panels ?
The actual solar panel efficiency may be affected by several factors, like weather,
sun intensity, shading, panel orientation, temperature, location, dust and dirt.
For example, if you live in a place without much sunlight or your panels are
covered by shade, you'll get a very low output or none at all.
Is the BLUETTI' s solar panel compatible with the third party' s power station ?
Yes. Make sure BLUETTI solar panels' voltage is compatible with your power
stations' voltage limit, while you're using the same connector. Please feel
free to contact us for compatibility with other power stations.
