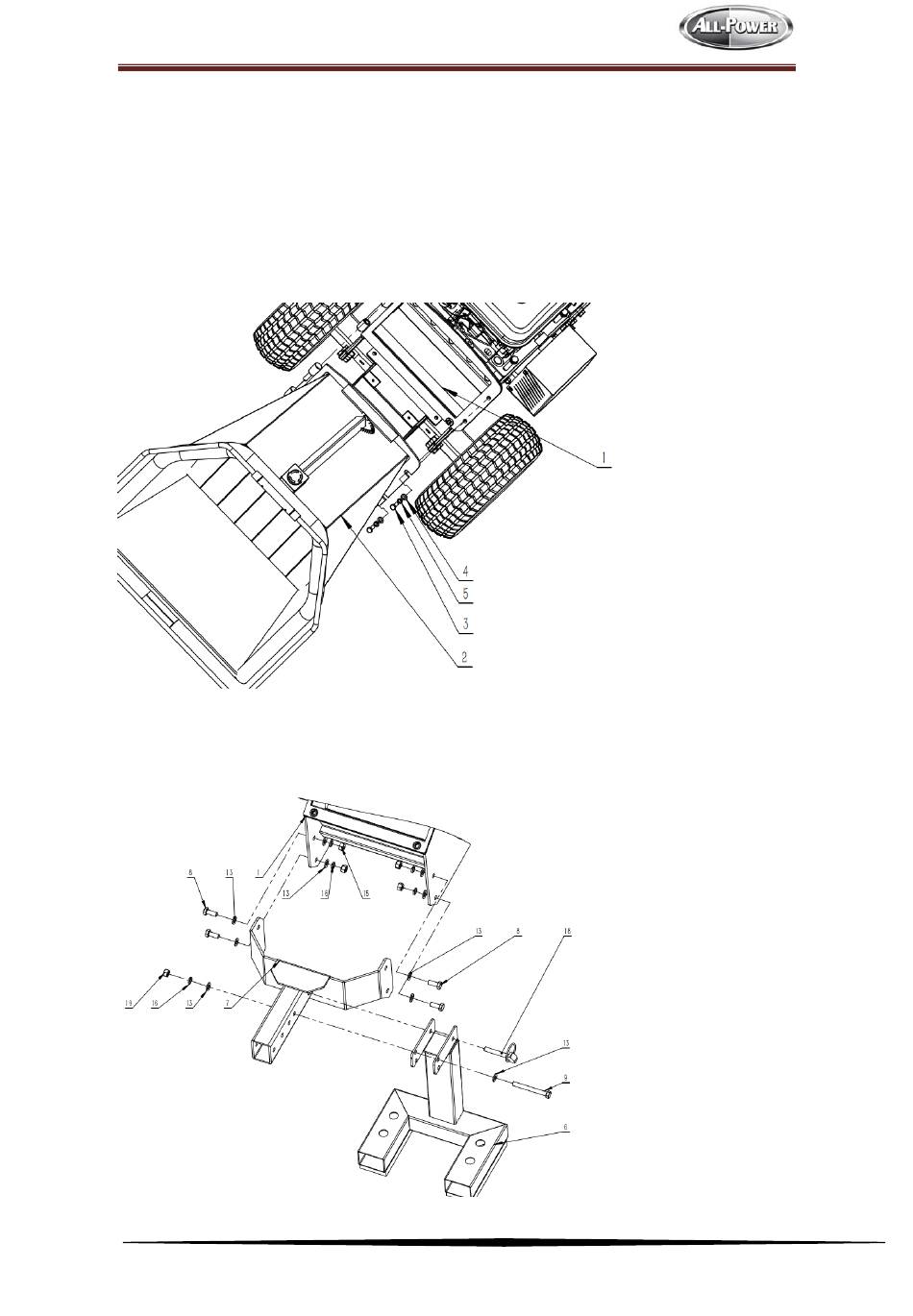

3. Assemble the Infeed hopper(M10*35 bolt, flat washer, spring washer, lock nut)*2
A. locate the Infeed Hopper, the hardware needed to assemble it, and the side of the unit,
that the hopper installs on the base of the unit.
B. While picking the hopper up, line up the left side of the hopper onto the 2 pin hinges
and slide them down.
C. After mounting the hopper, install the nuts and washers onto the provided bolts tightly
to secure the hopper
4. Assemble the foot frame and install onto the wood chipper base (M10*25 bolt, flat
washer*2, spring washer, lock nut)*4, (M10*80 bolt, flat washer, spring washer, lock nut,
pin)
