This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

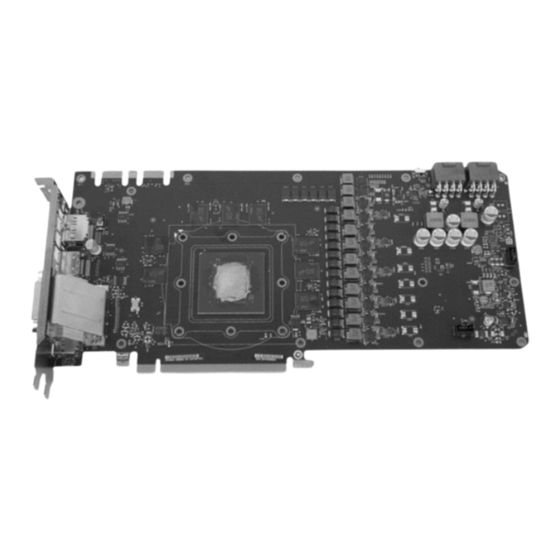

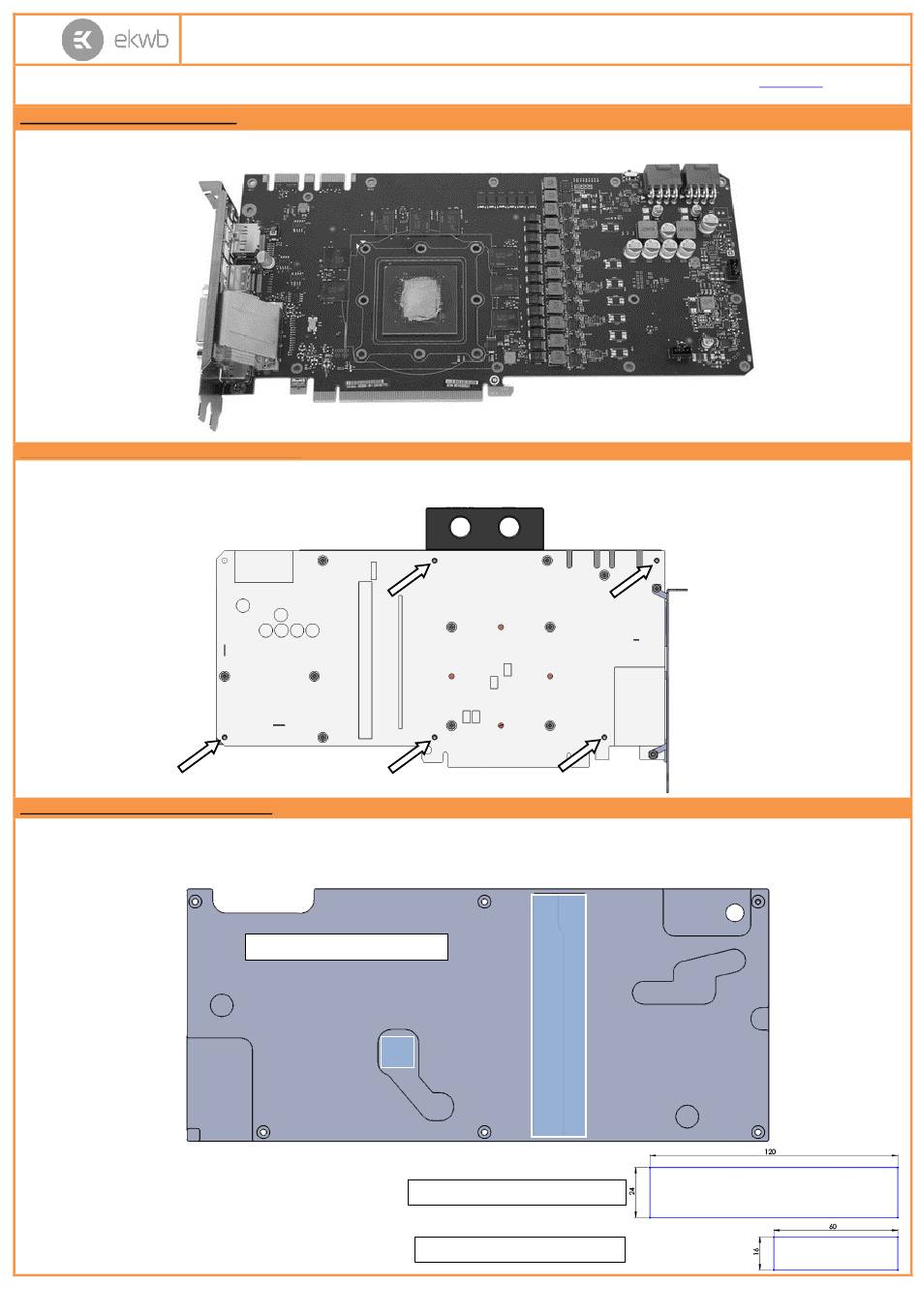

STEP 1: GENERAL INFORMATION. Sample picture of EVGA GeForce GTX 1080 FTW graphics card.
STEP 2: PREPARING YOUR GRAPHICS CARD
EK-FC1080 GTX FTW Backplate is very easy to install. First install EK-FC1080 GTX FTW series water block according to its installation manual. If you have it
already installed, please check the picture below to see which mounting screws are to be left in their position and which are to be removed. Please remove
the five (6) M2.5x4 AX1 screws and their PVC washers as well (marked with arrow).
STEP 3: APPLYING THE THERMAL PADS
EK-FC Titan X Backplate features passive cooling of the printed circuit board and its components therefore it is mandatory to install the enclosed
thermal pad. Please install enclosed 1mm thick thermal pads (Thermal Pad F – 1,0mm (60x16) and
picture below. You may need to trim the excess thermal pad.
All disclosures, notices and warranty conditions are being written on the back of the box.
Installation and mounting manual for EK-FC1080 GTX FTW
EK-FC1080 GTX FTW Backplate
2
Backplate
1
Thermal PAD G - 1mm (120x24mm)
Thermal PAD F - 1mm (60x16mm)
www.ekwb.com
Thermal PAD G - 1mm (24x120)
1
rd
Revision 1.0 Released on 23
for updates. Before
) as shown on the
2
of August, 2016.
Advertisement
Table of Contents
Related Manuals for ekwb EK-FC1080 GTX FTW
Summary of Contents for ekwb EK-FC1080 GTX FTW
- Page 1 STEP 2: PREPARING YOUR GRAPHICS CARD EK-FC1080 GTX FTW Backplate is very easy to install. First install EK-FC1080 GTX FTW series water block according to its installation manual. If you have it already installed, please check the picture below to see which mounting screws are to be left in their position and which are to be removed. Please remove the five (6) M2.5x4 AX1 screws and their PVC washers as well (marked with arrow).
- Page 2 Nevertheless do not exaggerate with screwing force as there is no need for it. By all means users must also consider that this product is intended to be used only with EK-FC1080 GTX FTW series water blocks. No other 3 party heat sinks or coolers are officially supported! EK does not offer any assistance or support in the latter application.
