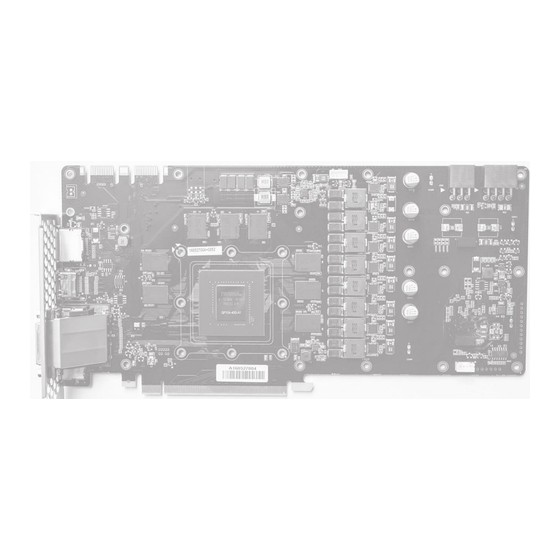

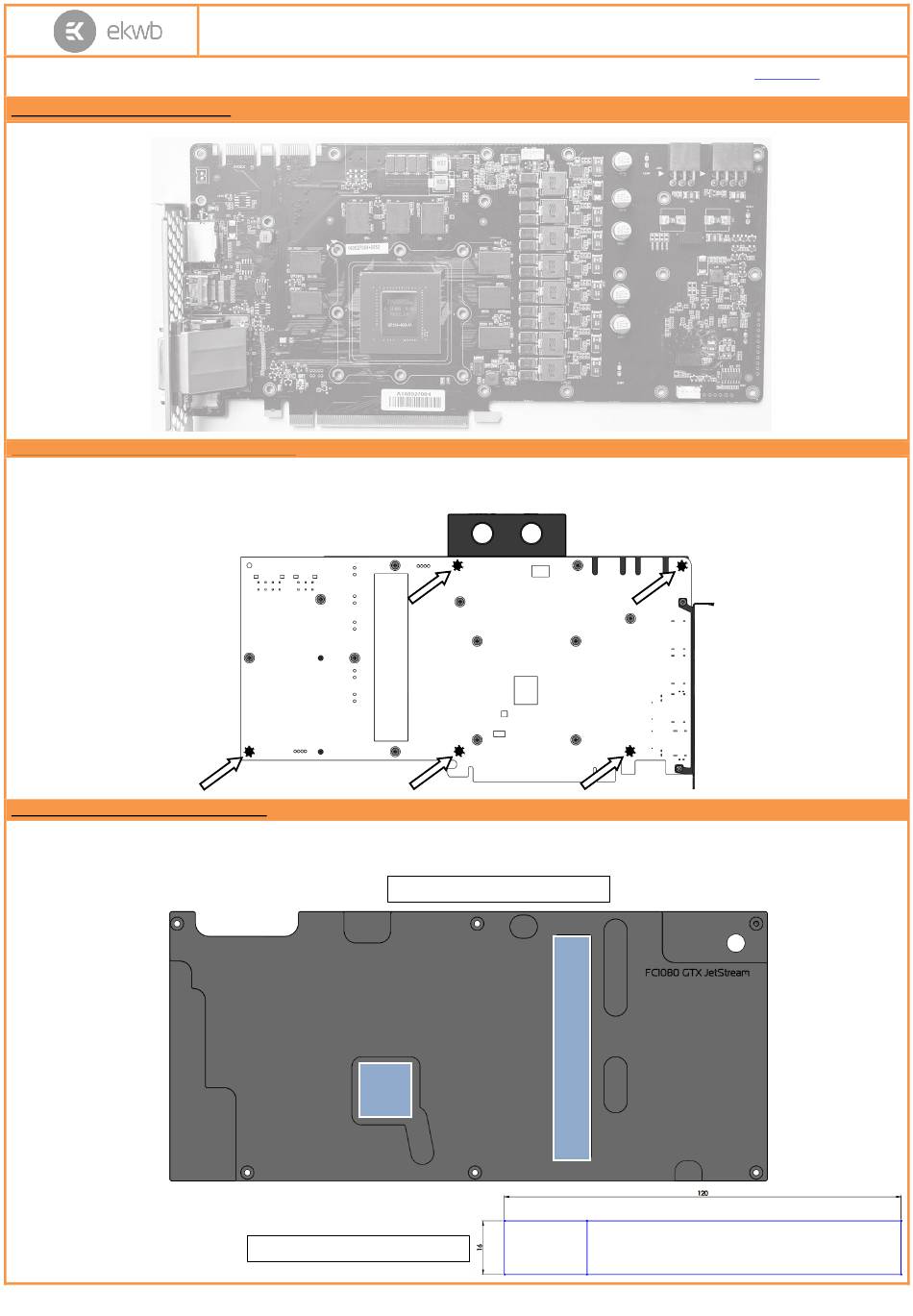

STEP 1: GENERAL INFORMATION. Sample picture of Palit GeForce GTX 1080 JetStream graphics card.
STEP 2: PREPARING YOUR GRAPHICS CARD
EK-FC1080 GTX JetStream Backplate is very easy to install. First install EK-FC1080 GTX JetStream series water block according to its installation manual. If
you have it already installed, please check the picture below to see which mounting screws are to be left in their position and which are to be removed.
Please remove the six (5) M2.5x4 AX1 screws and their PVC washers as well (marked with arrow).
STEP 3: APPLYING THE THERMAL PADS
Backplate features passive cooling of the printed circuit board and its components therefore it is mandatory to install the
EK-FC1080 GTX JetStream
enclosed thermal pad. Please install enclosed 1mm thick thermal pad (Thermal Pad F – 1,0mm (120x16) as shown on the picture below. You
may need to trim the excess thermal pad.
All disclosures, notices and warranty conditions are being written on the back of the box.
Installation and mounting manual for EK-FC1080 GTX JetStream Backplate
1
Thermal PAD F - 1mm (120x16mm)
EK-FC1080 GTX G1 Backplate
2
1
2
Revision 1.0. Released on 25
www.ekwb.com
for updates. Before
2
th
of August, 2016.
