Summary of Contents for Sapcon VITAL-T

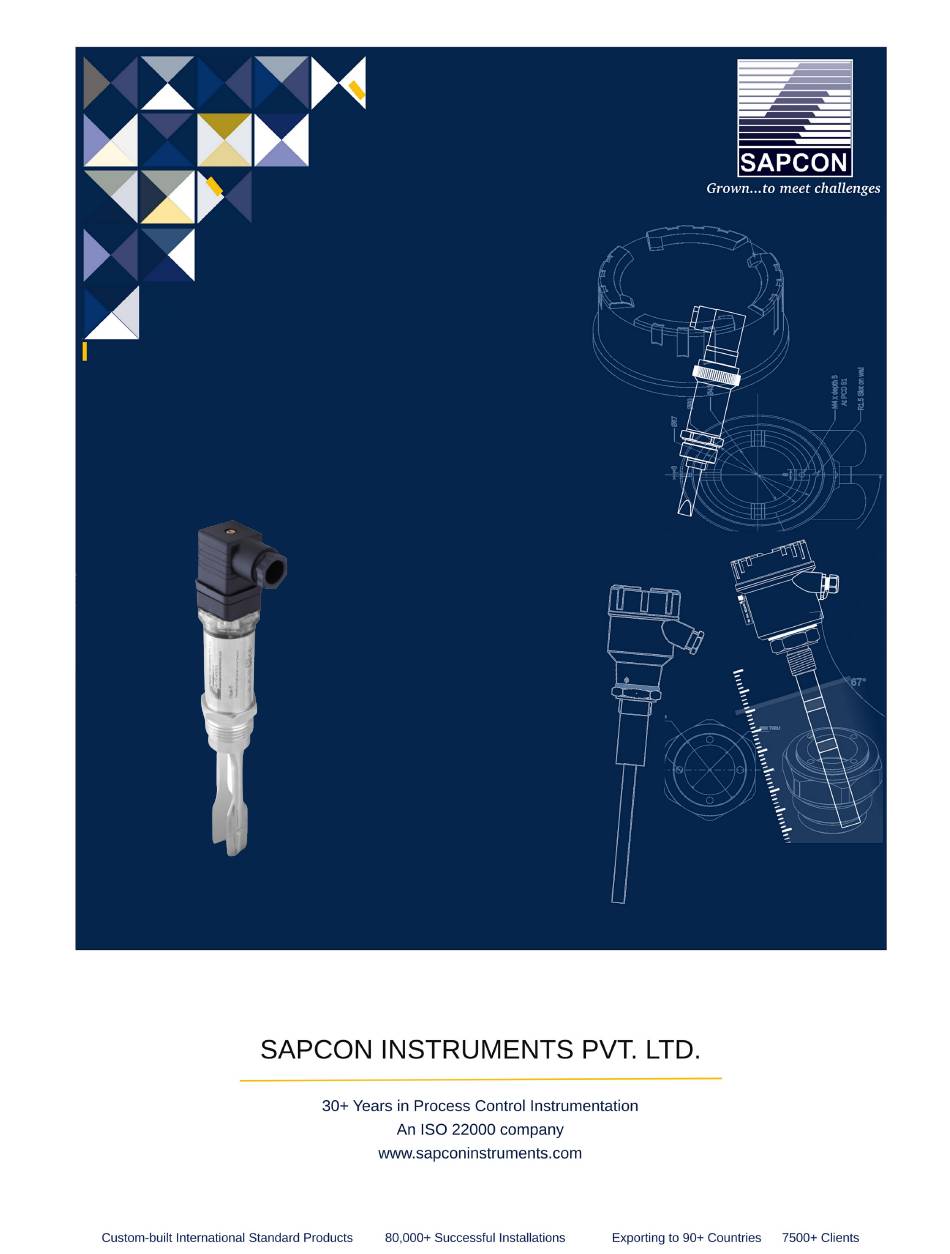

- Page 1 INSTRUCTION MANUAL VITAL-T Compact Vibrating Fork Version 1.0...
-
Page 2: Table Of Contents
M-12 Connector Connections for Fail-safe Low ........® Sapcon Instruments Pvt.Ltd. - Page 3 Error Indications ..........® Sapcon Instruments Pvt.Ltd.
-
Page 4: Revision History
• Copyright: All content on this document, such as text, graphics, logos and images is the property of Sapcon Instruments Pvt. Ltd. The selection, arrangement and presentation of all materials on this document and the overall design of this document is the exclusive property of Sapcon Instruments Pvt. -
Page 5: Introduction
Service friendly plug-in connection 1 Introduction • Rugged stainless steel housing Vital-T is a vibrating fork level switch for level detection, it is suitable for all kinds of solid which do not react with SS • Operational safety ensured 316 .where the process temperature ranges between •... -
Page 6: Application Specifications
Uncover Delay : 1-3 seconds Response Time with ’FS’ option • Cover Delay : 1-2 second • Uncover Delay : 1-3 seconds Operating Temperature • Ambient Temperature: C to • Process Temperature: C to Table 2: Application Specifications ® Sapcon Instruments Pvt.Ltd. -
Page 7: Electrical Specifications
PG 11 / PG 9 Active Fork Length 100 mm Probe Length 126 mm Process Temperature Up to Sensing Fork Material SS 316 Fork Finish Standard Fork Pressure Up to 10 Bar Table 4: Mechanical Specifications ® Sapcon Instruments Pvt.Ltd. -
Page 8: Installation Guidelines
Connect negative terminal to Pin no. 1 of the device. Note: does not have any keys to operate.The Fail- • Connect fuse between positive terminal and Pin no. 2 safe feature has been implemented in accordance of the device. with connection. ® Sapcon Instruments Pvt.Ltd. -
Page 9: For M-12 Connector
Sensitivity of the tuning fork may have to be adjusted depending on the density of material of the application media.Vital-T has a LED display which helps in visualizing the desired sensitivity level. The device ships with a default sensitivity level . -
Page 10: Error Indications
Thank you for going through the instructions given in this manual. To further ease the process of installation and use, we have developed special demo videos which are hosted on YouTube. Sapcon’s YouTube channel, SAPCON INSTRUMENTS, lists all these videos: https://goo.gl/dnxfcz Should you require further information regarding installation, use or working of the instrument, please don’t hesitate to contact us. -
Page 11: Customer Support
User Manual & Datasheet V 1.0 14 Order Code Product VT: Vital-T: compact tubular vibrating fork type level limit switch appropriate for all types of solid , granules and powders Type I : Integral (sensor in same unit) Probe Housing Material...
