The Multiline DECT 209 has phone line detect feature which
automatically detects the phone line when the base power is on.
In standby mode Line LED 1~2 will be off.
When in use the Line's LED will be on.
If no line is connected the LED will flash.
If you add or remove a new line turn the mains power off and then
on again to reboot.
The Handset Features
1. Fixed Power supply: 6VDC input, with 100V ~ 240V AC 50~60Hz adapter.
2. Uses one battery pack Ni-MH 2.4V
3. Weight: 110g .
4. Dimensions: (L x W x H): 169mm x 48mm x 23mm.

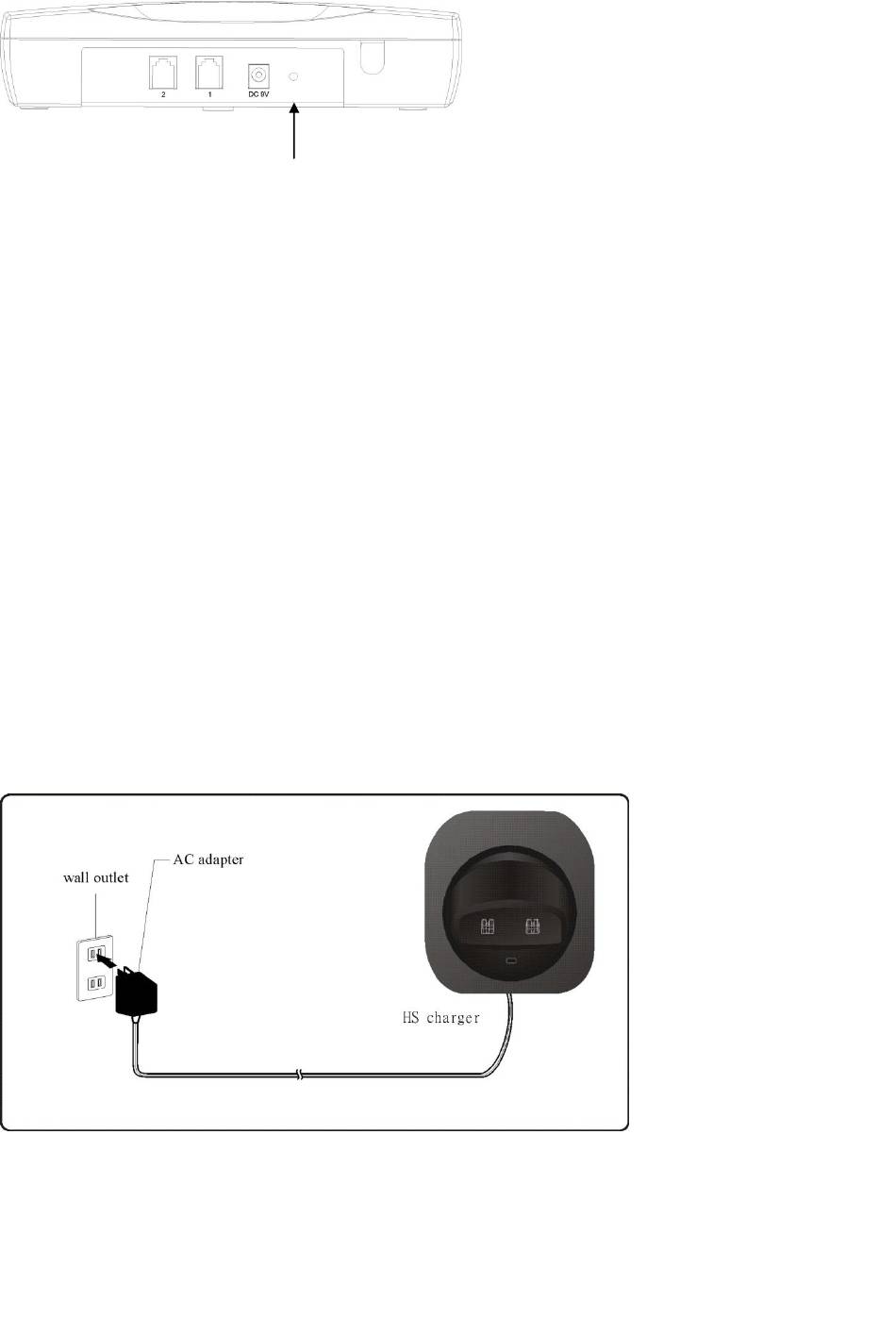

Handset Charger
Register button
6
