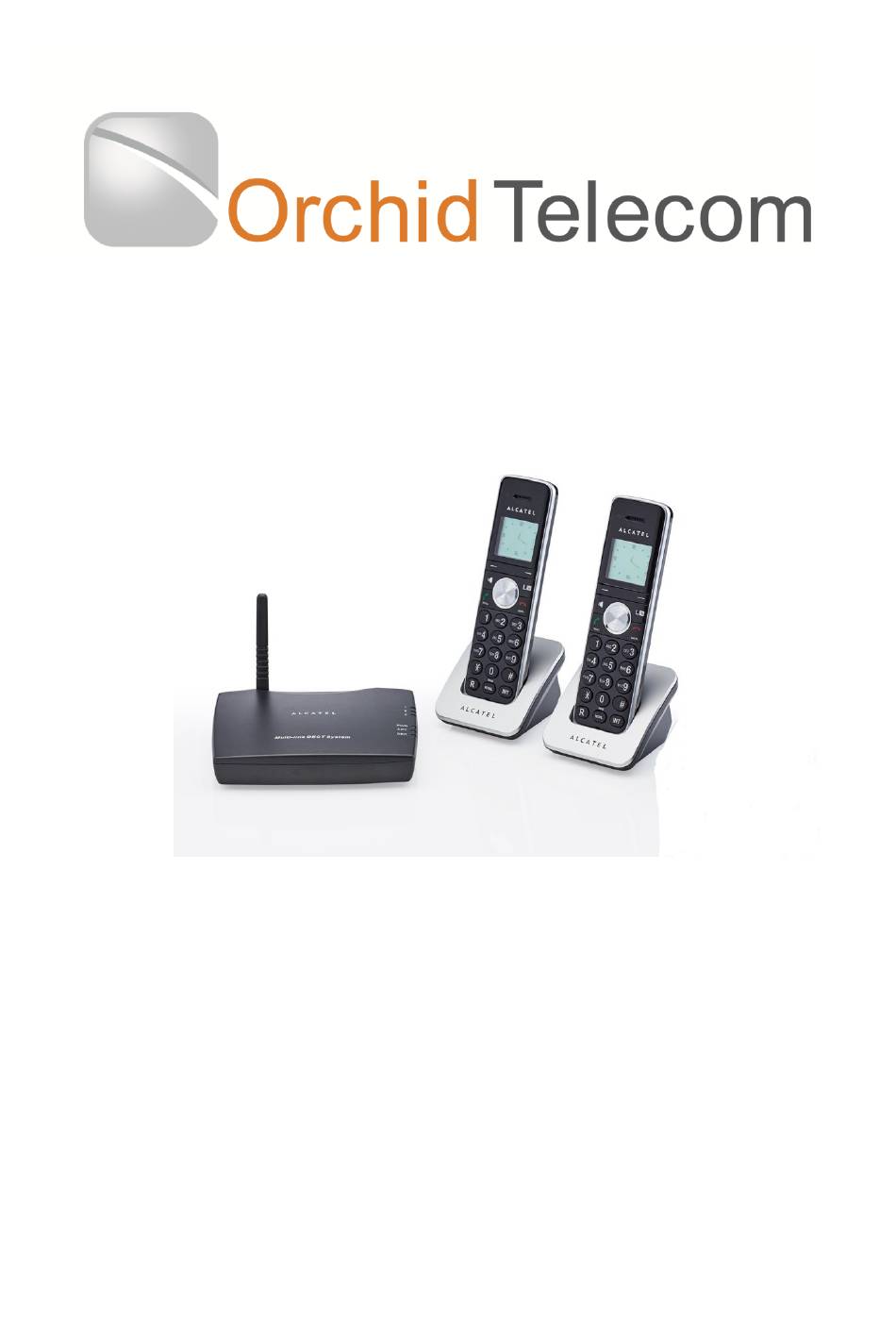

- Page 1 Alcatel DECT 209 Wireless PBX System USER GUIDE...
-
Page 2: Table Of Contents
User Guide Index Contents Installation The Base The Handset Charger Battery Cover Handset Keys LCD Icons Standby Mode Receiving a Call Making a Call Standard Dialling Preview Dialling Call Handling Adjusting the Volume during a call. Redial Call Waiting – Receive a new external call Making an Internal Call Receiving an Internal Call Receiving an External Call during an Internal Call... - Page 3 Handset Auto Answer Setting Handset Contrast Setting Handset Language Setting Handset Alarm Setting Handset Key Tone Setting Handset Ringer Melody Settings Setting the Ringer Melody and Volume for External Calls Setting the Ringer Melody and Volume for Internal Calls Keypad Lock Handset R Key Function BASE STATION SETTING Restoring Base to Factory Default...
-
Page 4: Contents
PACKAGE CONTENTS 1 x Base 2 x Handsets 2 x Handset chargers with fixed 2 x Handset Rechargeable power adaptors. Battery Packs. 1 x Adapter for base 2 x Line Cords to connect the Specifications: phone lines Base – DC9V, 0.5A Handset –... -
Page 5: Installation
Installation Installing the Base & Handsets 1. Plug one end of the power adaptor cable into the DC9V slot on the back of the base, and the other end into a mains socket. 2. Using the line cords supplied connect your line sockets, to L1 & L2 sockets on the rear of the base. -
Page 6: The Handset
Register button The Multiline DECT 209 has phone line detect feature which automatically detects the phone line when the base power is on. In standby mode Line LED 1~2 will be off. When in use the Line’s LED will be on. -
Page 7: Battery Cover
Handset Battery Cover 1. Slide down the battery cover using thumb pressure or nail. 2. Insert the batteries pack 3. Slide the battery cover back into place. Important: Charge for 12 hours before using for the first time. Handset Keys Charge LED Left Key Right Key... -
Page 8: Lcd Icons
LCD Icons Function Icon Handset icon Antenna In talk mode Speakerphone Handset number Miss call Internal call Non-disturb Handset time (Ringer off) Keypad lock Battery Menu Back Delete Mic mute Mic ON STANDBY MODE In standby mode an Analogue Clock will be displayed. While making or receiving a call the handset extension number, battery level , and signal strength are displayed. -
Page 9: Call Handling
Call Handling Adjusting the Volume During a call, press up /down key to adjust to one of the 4 volume levels. The current volume is displayed. Redial The thirty most recently dialed numbers are saved to your handset. 1. Press up key to enter the menu. -
Page 10: Transferring An External Call
conversation with the internal extension, the external caller will hear on hold music only. 3. Press INT key again to end the internal call and return to the external call. Transferring an External Call 1. During an external call, press INT key to hold the call, the caller will hear on hold music only. -
Page 11: Alphanumeric Keys
left key to delete an incorrect character.) 3. Press right menu key to confirm. Enter No : is displayed. Use the keypad to enter the phone number of the new contact. (Press left key to delete an incorrect character.) 4. Press right menu key to confirm. -
Page 12: Deleting The Phonebook
Deleting the Phonebook 1. Press right menu key to enter the menu. 2. Press up /down key to select Phone Book, and press right menu key confirm. 3. Press up /down key to select View Entry, and press right menu key confirm. -
Page 13: Registering A New Handset
REGISTERING A NEW HANDSET On the rear of the main base station (not the charger pod) you will find the REG button needed for step 1. To register the handset: Press and hold the REG button on the rear of the main base of the DECT312 until the SBR LED is on permanently (will take approx. -
Page 14: Handset Settings
HANDSET SETTINGS Restoring Handset to Factory Default 1. Press right menu key to enter the menu. 2. Press up /down key to select HS Setting. 3. Press right menu key to confirm. 4. Press up /down key to select Reset HS. 5. -
Page 15: Handset Alarm Setting
Handset Alarm Setting 1. Press right menu key to enter the menu. 2. Press up /down key to select HS Setting. 3. Press right menu key to confirm. Register HS is displayed. 4. Press up /down key to select Alarm. Press right menu key to confirm. -
Page 16: Keypad Lock
3. Press right menu key to confirm. Register HS is displayed. 4. Press up /down key to select Melody INT. Press right menu key confirm. 5. Press up /down key to select among 10 melodies. A short melody will be played while you switch to each ring tone. -
Page 17: Time And Date Setting
waiting tone is turned off. Press up /down key to turn the call waiting tone on or off. 6. Press right menu key to confirm. 7. Press end key to exit. Time and Date NB If you have caller ID with your service provider, there is NO need to set time and date. -
Page 18: Handset Menu
Handset Menu... -
Page 19: Troubleshooting
TROUBLESHOOTING Error Solution The handset cannot be used. Make sure the power cord of the base station is connected to a power source. Make sure the batteries are charged and inserted correctly. Make sure the phone cables are properly connected to the RJ-11 phone jacks. Make sure the handset is registered to the base station. -
Page 20: Feature List
FEATURES 1.8GHz, Digital Enhanced Cordless Technology GAP compliance, compatible with most DECT handsets Base for 2 PSTN lines Expandable up to 9 cordless handsets Supports 3 simultaneous calls Phone line auto searching Caller ID FSK/DTMF available ... -
Page 21: Safety
– as a backup. Orchid Telecom Ltd hereby declares that the following model conform to the essential requirements and other applicable provisions of European directive 1999/5/EC. Alcatel Multiline DECT AMD209 Customer Help Desk – Call Orchid Telecom on 01572 717888 or email sales@orchid-telecom.com...
