Victron energy Digital Multi Control 200/200A Manual page 16

6
6
Please check the scale before using
this paper as a template for cutting a
hole in your panel !!
No rights can be derived from this
drawing.
© victron energy b.v.
Page 14
Digital Multi Control
120
9
60

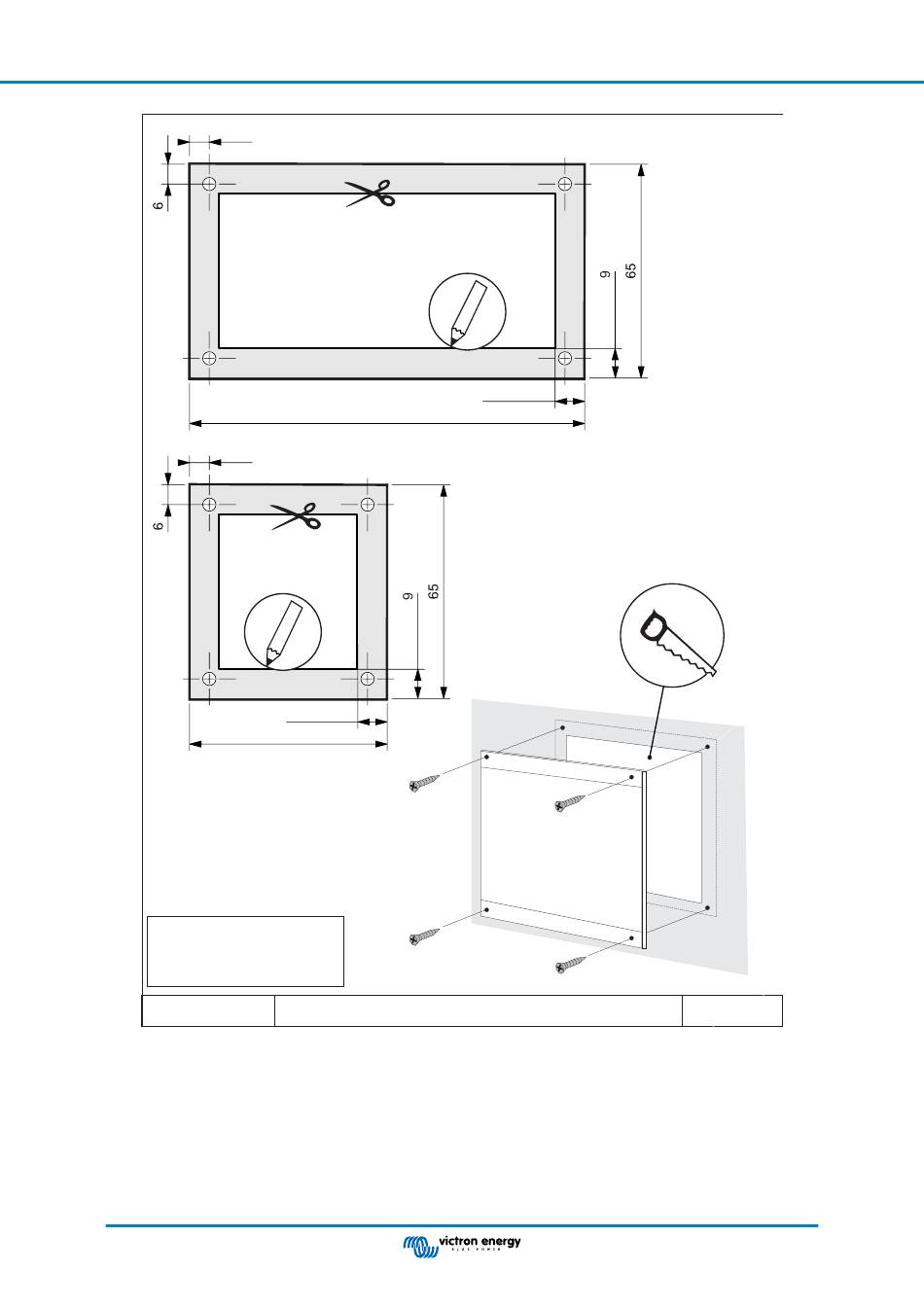

Dimension diagram Victron Energy remote panels
9
Template for
drilling and
cutting
doc: PN001501
article: metal panel
date: 30-06-2015 rev: 02
Dimensions
