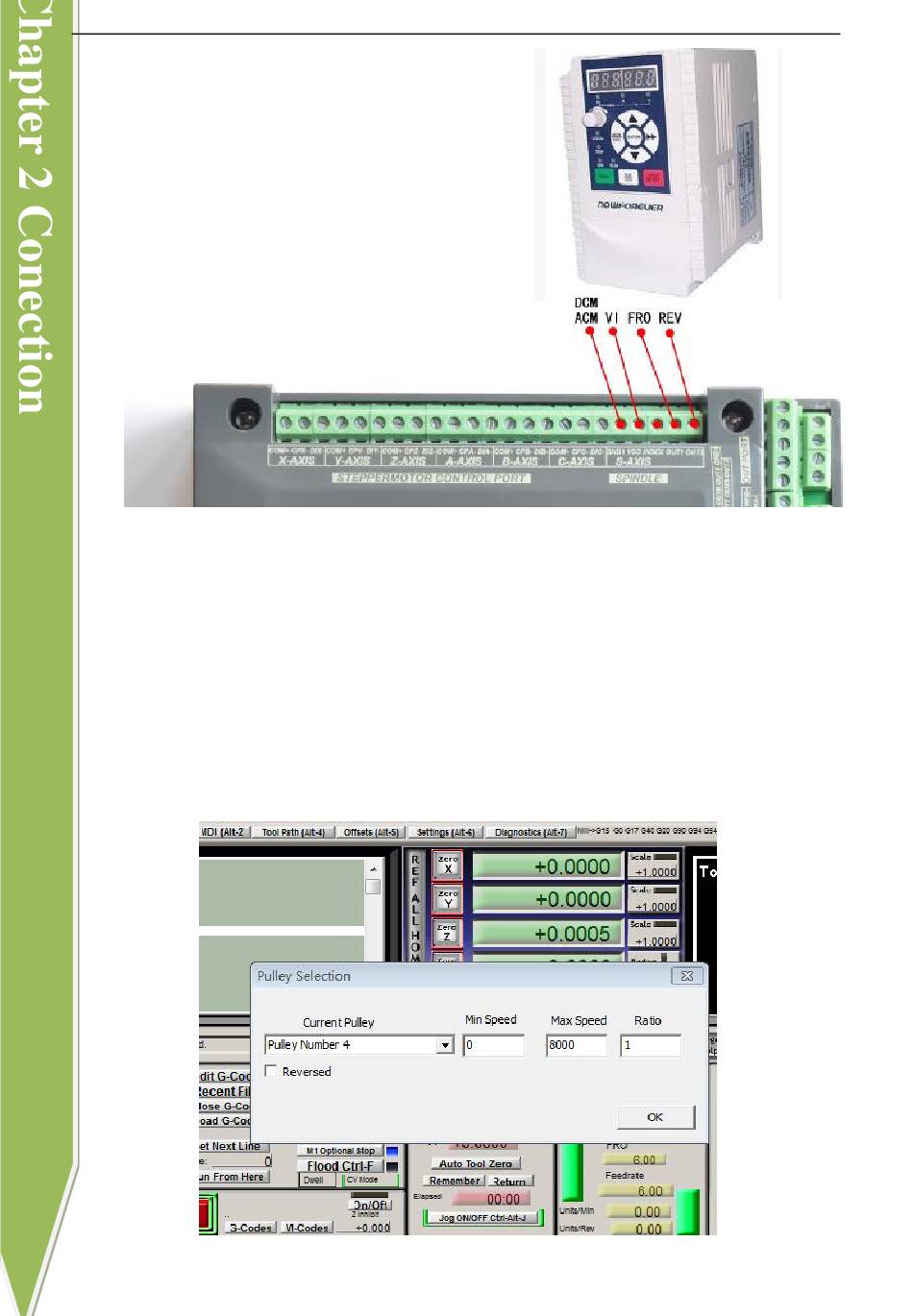

Figure 2-4.
VSO real output voltage=10V*s spindle setting speed/max spindle speed.Forexample,if max
spindle speed is 24000,current spindle speed is S=18000,so
voltage=10*18000/24000=7.5V.
Max. spindle speed setting ports as showed sa Figure 2-5,open it from Pulley from Menu
config.The current spindle speed can be set by S directive or Mach 3 spindle setting speed module.
spindle control output and inverter connection
Max spindle speed setting position
Figure 2-5.
the VSO output
