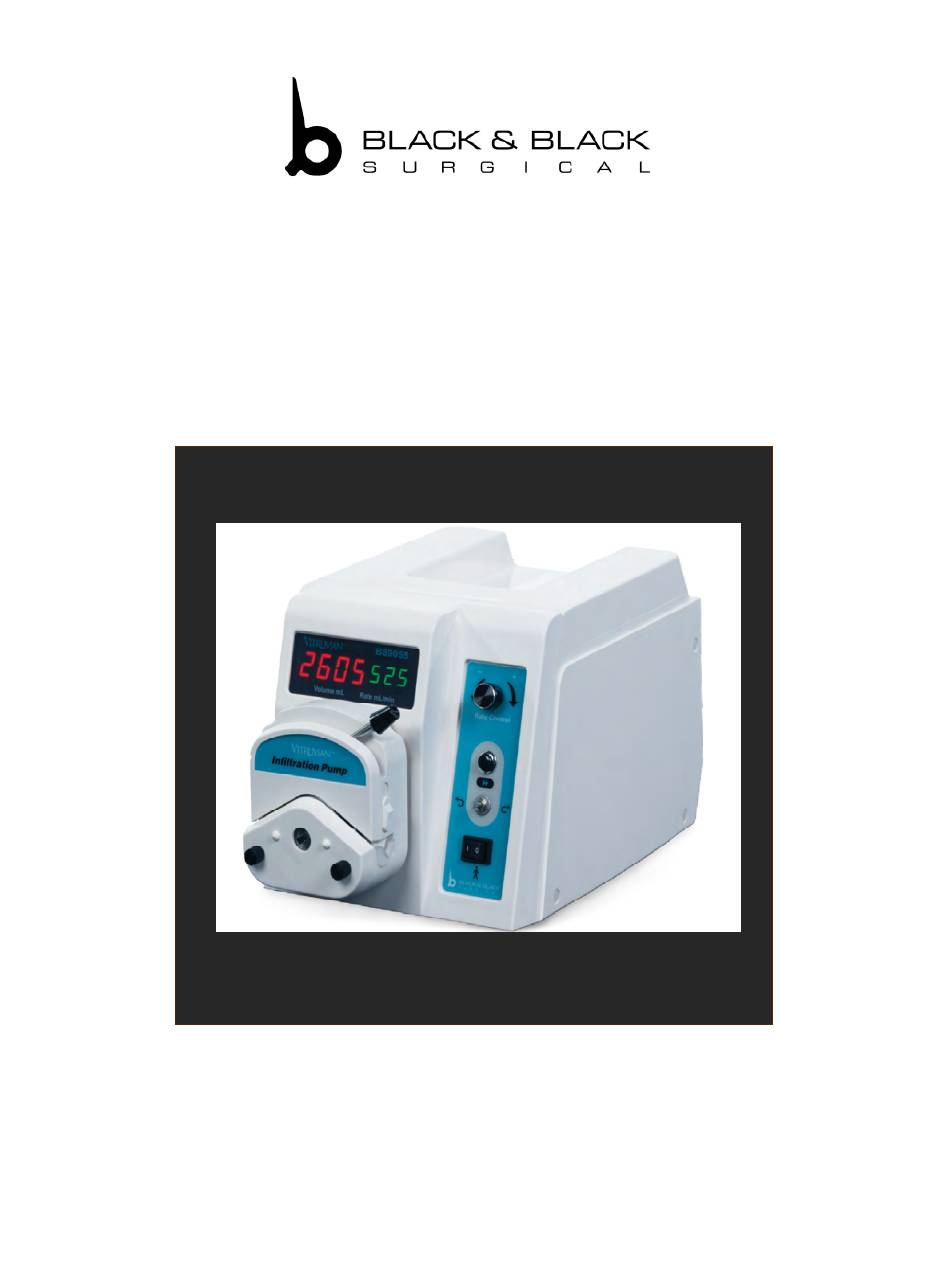

- Page 1 B89055 VITRUVIAN INFILTRATION PUMP OPERATING MANUAL LIT-#25-3013 Ver. 1 12-20-2021 Page 1 of 23...
- Page 2 CONGRATULATIONS Thank you for choosing Black & Black’s Vitruvian Infiltration Pump. The Vitruvian Infiltration Pump is a peristaltic pump using three rollers to create pumping action to deliver tumescent fluid to the operative site. This manual provides instructions for operation, maintenance, and troubleshooting assistance for the Black &...
-
Page 3: Table Of Contents
Table of Contents Symbols ................................4 Indications For Use ............................. 5 Intended User /Patient Population / Environment .................... 5 Contraindications ............................... 5 Warnings ................................5 Precautions................................. 6 Modifications ..............................6 Description of Components ..........................7 Description of Components contd........................8 Setup Instructions ............................ -
Page 4: Symbols
Symbols For Prescription Use Only CONSULT OPERATING MANUAL POWER ON POWER OFF TYPE B APPLIED PART Waste Electrical Products should not be disposed of in landfill. Please recycle where facilities exist. Check with your Local Authority for recycling advice. IPX1 Degree of protection against the ingress of water CAUTION- NOT FOR INTRAVENOUS USE LIT-#25-3013... -
Page 5: Indications For Use
Indications For Use The Vitruvian Infiltration Pump is intended to be used for: Aesthetic Body Contouring Intended User /Patient Population / Environment Black & Black Surgical’s Vitruvian Infiltration Pump should be handled and operated by healthcare professionals completely familiar with use of the device. The intended patient population for this device includes persons seeking surgical, plastic, or liposuction procedures for body contouring. -
Page 6: Precautions
Precautions Use of this device is limited to those physicians who, by means of formal professional training or sanctioned continuing medical education (including supervised operative experience), have attained proficiency in suction lipoplasty. Results of this procedure will vary depending upon patient age, surgical site, and experience of the physician. -
Page 7: Description Of Components
Description of Components FRONT VIEW Flow Rate Adjusting Knob In manual control mode, turn the Speed Adjusting Knob clockwise to increase the speed; Turn the Speed Adjusting Knob counter clockwise to decrease the speed. Prime Key In manual control mode press down the Prime Key to enter Prime status where the pump runs at full speed (525 mL/min) for quick filling or emptying of the tubing. -
Page 8: Description Of Components Contd
Description of Components contd. REAR VIEW Food Switch Mode Choose momentary or maintained mode. In the momentary mode, the pump will only run as long as the foot switch is pressed. Once pressure is removed, the pump stops. Factory settings are in momentary mode. ... - Page 9 Items included The Vitruvian Infiltration Pump comes with: Hospital grade power cord (2) Foot pedals Suggestions Recommended Black & Black items: B89213 - 13' SOFTOUCH PUMP TUBING SET-SINGLE SPIKE, BOX OF 10 Some types of cannulas that may be purchased separately from Black & Black include: o B8TI-1215-LL - TUMESCENT INFILTRATION CANNULA;...
-
Page 10: Setup Instructions
Setup Instructions 1. The infiltration fluid, tubing set, and handle / cannula that are used with the Black & Black Vitruvian Infiltration Pump must be sterile. (Not supplied with this device) 2. Open the pump head by lifting or raising the lever counter clockwise to the left 180°. 3. - Page 11 5. Repeat step 4 with the other end of the tubing as shown below. Make sure there isn’t excess tubing or slack inside pump head by gently pulling on both ends of the tubing. 6. Lower pump head by moving the lever clockwise 180° to the right to lock in place. Your unit will now look like this: LIT-#25-3013 Ver.
- Page 12 7. Connect pneumatic foot switch tubing to port located on the rear of the pump: Turn connector clockwise to tighten onto port Repeat this step for the second foot pedal. LIT-#25-3013 Ver. 1 12-20-2021 Page 12 of 23...
-
Page 13: Operating Procedures
Operating Procedures 1. Turn power to the Vitruvian Infiltration Pump ON (on front of unit) by flipping the switch to the “I” position. 2. Depress either footswitch to start the pump’s operation. Release foot from footswitch to discontinue pump operation. Footswitches can be used interchangeably. 3. - Page 14 5. To re-install pump head, insert the flat end of the pump head's shaft into the slot of drive's coupling. Make the positioning hole of the pump head match the positioning pin of the drive. 6. Tighten the screws connecting the pump head and the drive. Tighten the screws to the same degree.
-
Page 15: Troubleshooting Guide
Troubleshooting Guide Please contact Black & Black Surgical for assistance if the following solutions do not resolve the problem. Problem Possible Causes Solution 1. Power switch not on. 1. Turn power switch to “on” 2. Power cord not plugged into wall 2. -
Page 16: Technical Specifications
Technical Specifications Functions Applicable Pump Head PH-1515 Prime Fast filling (525 mL/min) Speed Control Variable speed control Display Displays volume and rate (mL and mL/min) Specifications Speed 1 to 525 mL/min Speed Precision 1 mL/min Speed Adjusting Continuous adjusting by rotary coded switch Display Mode Two LED displays reading mL and mL/min. -
Page 17: Damaged Or Loss In Shipment
Damaged or Loss in Shipment Examine shipment upon receipt for any external damage. If product package is damaged please contact Black & Black Surgical immediately. If concealed loss or damage is discovered, retain all packaging materials, notify the transportation company immediately, and request an inspection. -
Page 18: Returns
Returns NO RETURNS OR EXCHANGES WILL BE ACCEPTED UNLESS YOU HAVE RECEIVED A RETURN OF MERCHANDISE AUTHORIZATION NUMBER (RMA) FROM BLACK & BLACK. THIS NUMBER MUST BE ON THE RETURN SHIPPING LABEL AND ALL WRITTEN COMMUNICATION. Call Black & Black toll-free at 1-877-252-2517 to get a Return Merchandise Authorization (RMA) number for your order. -
Page 19: Repair Program
Repair Program If repairs are necessary due to damage other than that incurred during initial shipment (see section labeled DAMAGE OR LOSS IN SHIPMENT), contact Black & Black to return your unit. A Return of Goods Authorization number must be obtained from Black & Black’s Customer Service Department prior to returning any merchandise. - Page 20 APPENDIX – A - Electromagnetic Compatibility Information LIT-#25-3013 Ver. 1 12-20-2021 Page 20 of 23...
- Page 21 APPENDIX – A - Electromagnetic Compatibility Information, contd. LIT-#25-3013 Ver. 1 12-20-2021 Page 21 of 23...
- Page 22 APPENDIX – A - Electromagnetic Compatibility Information, contd. LIT-#25-3013 Ver. 1 12-20-2021 Page 22 of 23...
- Page 23 APPENDIX – A - Electromagnetic Compatibility Information, contd. LIT-#25-3013 Ver. 1 12-20-2021 Page 23 of 23...
