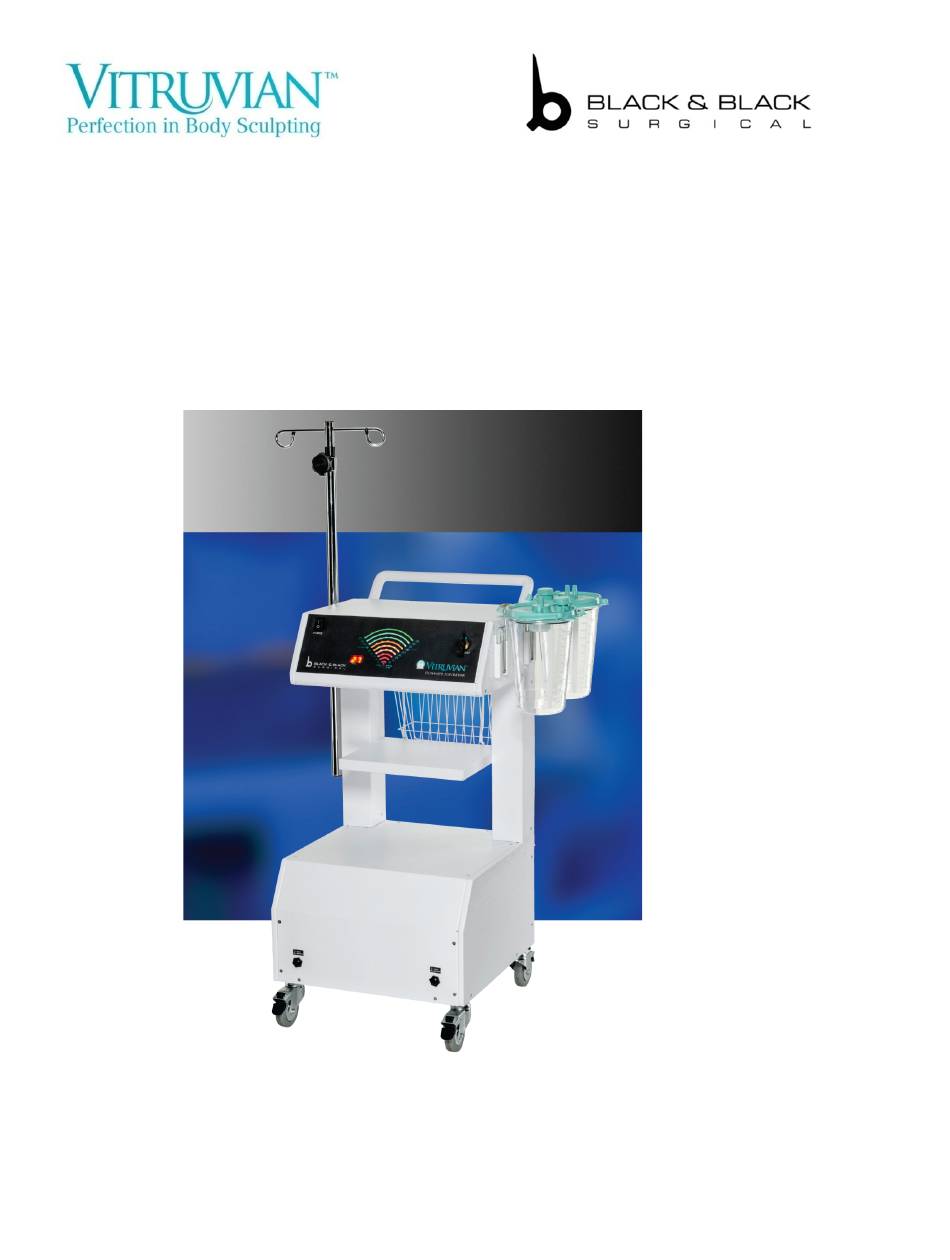

- Page 1 B89025 VITRUVIAN™ ULTIMATE ASPIRATOR 120V/230V Instructions for Use Manual DOC # 25-3012 REV L 09/2021 Page 1 of 29...
- Page 2 CONGRATULATIONS You have purchased one of the finest aspirators available. Utilizing two piston driven ½ HP motors assures that you are able to achieve and maintain the highest vacuum levels that the laws of physics allow. Beyond that you will have complete control over the vacuum level giving you much more versatility in how you use the device.
-
Page 3: Table Of Contents
Instructions for Use Table of Contents Table of Content Table of Contents ............................3 Introduction..............................5 Symbol Definitions ............................5 Use of This Documentation ..........................5 Warnings ..............................6 Precautions ..............................6 Operational Safety ............................7 Modifications ..............................8 Damage or Loss in Shipment ........................... 8 Incorrect Items Shipped by Black &... - Page 4 Suggestions ..............................21 III. Maintenance ............................22 Cleaning Instructions............................. 22 Troubleshooting Guide ..........................23 Warranty Provisions ..........................24 APPENDIX – A .............................. 25 VITRUVIAN™ Ultimate Aspirator Specifications................... 25 Table 1 – Guidance and manufacturer’s declaration – electromagnetic emissions ........26 Table 2 –...
-
Page 5: Introduction
Introduction Symbol Definitions The following symbols appear on the exterior of the product or elsewhere in this User’s Manual. Attention: Consult accompanying documents Power OFF Power ON Alternating Current Fuse Attention: Consult User’s Manual USE PROPER GROUNDING: Use only receptacle marked “hospital Grade”... -
Page 6: Warnings
Instruction manuals should be made available to the user(s) during the procedure. Follow all instructions contained in this manual pertaining to the device, with particular attention given to the WARNINGS and PRECAUTIONS. Warnings Warnings are statements about conditions that could cause serious injury or death. The following warnings apply: Read this User’s Manual completely prior to use. -
Page 7: Operational Safety
Operate the B89025 VITRUVIAN™ Ultimate Aspirator only with the supplied B89030 Hospital Grade Power cord (or equivalent) “hospital grade” power cord. 1. Insert the universal end of the power cord into the receptacle on the back of the aspirator. 2. -
Page 8: Modifications
Modifications Modifications of any kind are NOT recommended and will void all warranties. Damage or Loss in Shipment Thoroughly inspect shipment immediately upon arrival. If goods are received short or in damaged condition, it is important that you notify the transportation company and insist on a notation of the loss or damage on the freight bill. -
Page 9: Policy On Returned Goods
Policy on Returned Goods NO RETURNS OR EXCHANGES WILL BE ACCEPTED UNLESS YOU HAVE RECEIVED A RETURN OF MERCHANDISE AUTHORIZATION NUMBER (RMA) FROM BLACK & BLACK. THIS NUMBER MUST BE ON THE RETURN SHIPPING LABEL AND ALL WRITTEN COMMUNICATION. Call Black & Black toll-free at 1-877-252-2517 to get a Return Merchandise Authorization (RMA) number for your order. -
Page 10: Repair Program
Repair Program If repairs are necessary due to damage other than that incurred during initial shipment (see section labeled DAMAGE OR LOSS IN SHIPMENT), contact Black & Black to return your unit. A Return of Goods Authorization number must be obtained from Black & Black’s Customer Service Department prior to returning any merchandise. -
Page 11: Operation
Operation Intended Use The VITRUVIAN™ Ultimate Aspirator is intended to be used for: Aesthetic Body Contouring. Intended User /Patient Population / Environment VITRUVIAN™ Black & Black Surgical’s Ultimate Aspirator should be handled and operated by healthcare professionals completely familiar with use of the device. For prescription use only. The intended patient population for this device includes any person seeking surgical, plastic, or liposuction procedures for body contouring. -
Page 12: Unpacking
Unpacking Figure 1 Figure 2 Your new VITRUVIAN™ Ultimate Aspirator will come packaged similar to picture in Figure 1 shown above. 1. Lift the carton vertically as shown in Figure 1 to remove. 2. Carefully remove foam protection pieces from side of device. 3. -
Page 13: Initial Inspection, Set Up, And Testing
Initial Inspection, Set Up, and Testing Your new aspirator was made to the highest standard and packaged to prevent shipping damage. However, please perform the following before using. Visually inspect the entire exterior for dents, scratches or any other damage. ... -
Page 14: Operative Controls And Components

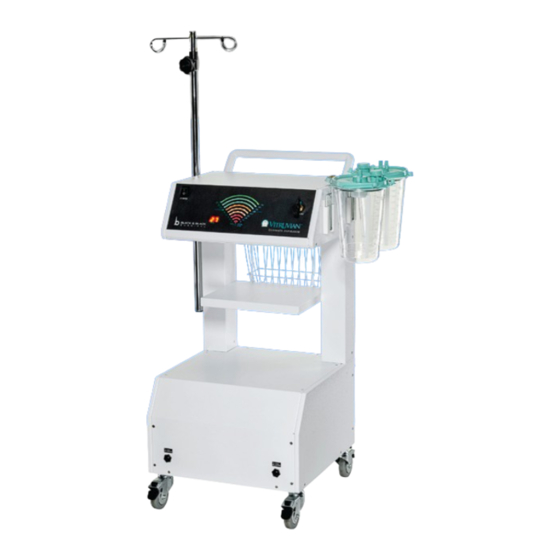

Operative Controls and Components Front View Filter Power Switch Vacuum Control IV Pole Mount Collection Canisters Numeric Vacuum Graphic Display in Inches Vacuum Display of Hg Foot switch Connections DOC # 25-3012 REV L 09/2021 Page 14 of 29... - Page 15 Front Panel Vacuum Control Power Switch Numeric Vacuum Display in Inches Graphic Vacuum of Hg Display (IN Hg / mm Hg.) DOC # 25-3012 REV L 09/2021 Page 15 of 29...
- Page 16 Foot switch Pictures FRONT BACK 1. Feed foot pedal tubing through FRONT the front of the tightening nut. Insert Foot Switch tip of tubing into foot switch on aspirator. Push it in so the tubing is snug. 2. Push the tightening nut onto the foot switch and tighten by turning the nut clockwise.
- Page 17 Foot switch control Cooling fan Cooling fan Power cord connection 120V &230V circuit breakers Main Circuit Breaker Voltage Selector Rear View DOC # 25-3012 REV L 09/2021 Page 17 of 29...
-
Page 18: Additional Features
For replacement canisters, filters or tubing contact Black & Black Surgical Phone: 770-414-4880 Toll Free: 877-252-2517 Additional Features A main breaker is installed which will cut power in the event of a severe power surge or some other catastrophic event. Each motor will work on either 120V or 230V. -
Page 19: (If Using Black & Black Parts) Canister Set-Up Illustration
(If using Black & Black parts) Canister Set-Up Illustration DOC # 25-3012 REV L 09/2021 Page 19 of 29... - Page 20 DOC # 25-3012 REV L 09/2021 Page 20 of 29...
-
Page 21: Usage Instructions
Usage Instructions Make sure that Power Cord and Foot Switch(es) are connected. Double check the tubing connections are correct per diagram and instructions on pages 18- One end of suction tubing will need to be handled out of sterile field to be connected to the patient (see page 18). -
Page 22: Iii. Maintenance
III. Maintenance Cleaning Instructions The unit exterior should be wiped down with a damp cloth and germicide. DO NOT use cleaning solutions containing ALCOHOL OR SOLVENTS! Warning – Do not immerse in liquid. Store the aspirator covered, in a clean dry place. Contact proper authorized person for servicing. -
Page 23: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Footswitch not connected. Connect footswitch and retry No Power Power cord loose or not plugged Check to be sure that power cord is plugged into both the aspirator and power outlet Power switch in the off (O) Move switch to on ( | ) position position Check circuit breaker on back of... -
Page 24: Iv. Warranty Provisions
IV. Warranty Provisions The B89025 VITRUVIAN™ Ultimate Aspirator is warranted for a period of 1 year from the date of purchase. The B89025 VITRUVIAN™ Ultimate Aspirator is warranted to be free of defects in materials and workmanship and of functional defects when used under normal conditions for its intended surgical purpose. -
Page 25: Vitruvian™ Ultimate Aspirator Specifications
APPENDIX – A VITRUVIAN™ Ultimate Aspirator Specifications VITRUVIAN™ Ultimate Aspirator 120V/230V 18”x18”x38” (45cm x 45cm x 97cm) Size Weight Approximately 100 lbs (47KG) Power Cord 10 ft / 3 m Hospital Grade IEC AC Power Input 120 /230 VAC, 50/60 Hz Fuse T 20A Maximum Vacuum... - Page 26 Table 1 – Guidance and manufacturer’s declaration – electromagnetic emissions (Table 1) Guidance and manufacturer’s declaration – electromagnetic emissions The EQUIPMENT is intended for use in the electromagnetic environment specified below. The customer or the user of the EQUIPMENT should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment –...
- Page 27 Table 2 – Guidance and manufacturer’s declaration – electromagnetic immunity (Table 2 Guidance and manufacturer’s declaration – electromagnetic immunity The EQUIPMENT is intended for use in the electromagnetic environment specified below. The customer or the user of the EQUIPMENT should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level...
- Page 28 Table 4 – Guidance and manufacturer’s declaration – electromagnetic immunity (Table 4) Guidance and manufacturer’s declaration – electromagnetic immunity The EQUIPMENT is intended for use in the electromagnetic environment specified below. The customer or the user of the EQUIPMENT should assure that it is used in such an environment. Immunity test IEC 60601 Compliance...
- Page 29 Table 6 – Recommended separation distances between portable and mobile RF communications equipment and the VITRUVIAN™ Ultimate Aspirator (Table 6) Recommended separation distances between portable and mobile RF communications equipment and the VITRUVIAN™ Ultimate Aspirator The VITRUVIAN™ Ultimate Aspirator is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
