OWNER'S MANUAL
Read and Follow All Safety Information and
Instructions.
Keep for future reference.
Failure to follow these warnings and
instructions can result in serious injury or
death to users, especially children.
WARNING
Prevent Drowning
Children under 5, especially toddlers are at
Keep all electrical lines, radios, speakers, and
highest risk of drowning.
other electrical devices away from pool.
Closely watch children who are in or near this pool.
Do not place pool near or under overhead
Empty pool or prevent access when not in use.
electrical lines.
Prevent Young Children From Drowning:
• Install fencing or approved barrier around all sides of pool.
• State or local laws or codes may require fencing or other approved barriers.
• Check state or local laws and codes before setting up pool.
• Drowning occurs silently and quickly. Assign an adult to supervise pool and
wear provided water watcher tag.
• Keep children in your direct sight when they are in or near pool and when
you are filling and emptying pool.
• When searching for a missing child, check pool first, even if you think your
child is in the house.
• Pool presents a drowning hazard even during filling and draining of the pool.
• Maintain constant supervision of children and do not remove any safety
barriers until the pool is completely empty and stowed away.
• Refer to the list of barrier recommendations and guidelines as described in
CPSC Publication No.362.
• Assign an adult to be responsible for watching children in the pool. Give this
person a "water watcher" tag and ask that they wear it the entire time they
are in charge of supervising children in the pool. If they need to leave for any
reason, ask this person to pass the "water watcher" tag and the supervision
responsibility to another adult.
Prevent Young Children From Gaining Access to Pool:
• Remove pool ladders before leaving pool. Toddlers can climb ladder and get
into pool.
• Position furniture away from pool so that children cannot climb and gain
access to pool.
• When leaving pool, remove floats and toys from pool that might attract a
child.
Be Prepared to Respond to an Emergency:
• Keep a working phone and list of emergency numbers near pool.
• Become certified in cardiopulmonary resuscitation (CPR) so you can
respond to an emergency.
Diving Risk:
• Do not dive into the pool. Diving into shallow water can result in a broken
neck, paralysis, or death.
Electrocution Risk:
• Keep all electrical lines, radios, speakers and other electrical appliances
away from the pool.
• Do not place pool near or under overhead electrical lines.
Safety Barrier Guidelines for Residential Swimming Pool
Section I: Outdoor swimming pool
An outdoor swimming pool, including an inground, aboveground, or onground
pool, hot tub, or spa, should be provided with a barrier which complies with
the following:
1. The top of the barrier should be at least 48 inches above grade measured
on the side of the barrier which faces away from the swimming pool. The
maximum vertical clearance between grade and the bottom of the barrier
should be 4 inches measured on the side of the barrier which faces away
from the swimming pool. Where the top of the pool structure is above
WARNING
WARNING
Electrocution Risk
No Diving
You can break your neck
and be paralyzed!
grade, such as an aboveground pool, the barrier may be at ground level,
such as the pool structure, or mounted on top of the pool structure. Where
the barrier is mounted on top of the pool structure, the maximum vertical
clearance between the top of the pool structure and the bottom of the
barrier should be 4 inches.
2. Openings in the barrier should not allow passage of a 4-inch diameter
sphere.
3. Solid barriers, which do not have openings, such as a masonry or stone
wall, should not contain indentations or protrusions except for normal
construction tolerances and tooled masonry joints.
4. Where the barrier is composed of horizontal and vertical members and the
distance between the tops of the horizontal members is less than 45
inches, the horizontal members should be located on the swimming pool
side of the fence. Spacing between vertical members should not exceed
1-3/4 inches in width. Where there are decorative cutouts, spacing within
the cutouts should not exceed 1-3/4 inches in width.
5. Where the barrier is composed of horizontal and vertical members and the
distance between the tops of the horizontal members is 45 inches or
more, spacing between vertical members should not exceed 4 inches.
Where there are decorative cutouts, spacing within the cutouts should not
exceed 1-3/4 inches in width.
6. Maximum mesh size for chain link fences should not exceed 1-3/4 inch
square unless the fence is provided with slats fastened at the top or the
bottom which reduce the openings to no more than 1-3/4 inches.
7. Where the barrier is composed of diagonal members, such as a lattice
fence, the maximum opening formed by the diagonal members should be
no more than 1-3/4 inches.
8. Access gates to the pool should comply with Section I, Paragraphs 1
through 7, and should be equipped to accommodate alocking device.
Pedestrian access gates should open outward, away from the pool, and
should be self-closing and have a self-latching device. Gates other than
pedestrian access gates should have a self-latching device. Where the
release mechanism of the self-latching device is located less than 54
inches from the bottom of the gate, (a) the release mechanism should be
located on the pool side of the gate at least 3 inches below the top of the
gate and (b) the gate and barrier should have no opening greater than 1/2
inch within18 inches of the release mechanism.
9. Where a wall of a dwelling serves aspart of the barrier, one of the
following should apply:
(a) All doors with direct access to the pool through that wall should be
equipped with an alarm which produces an audible warning when the
door and its screen, if present, are opened. The alarm should sound
continuously for a minimum of 30 seconds within 7 seconds after the
door is opened. Alarms should meet the requirements of UL2017
General-Purpose Signaling Devices and Systems, Section 77. The
alarm should have a minimum sound pressure rating of 85 dBA at 10
feet and the sound of the alarm should be distinctive from other
household sounds, such as smoke alarms, telephones, and door bells.
The alarm should automatically reset under all conditions. The alarm
should be equipped with manual means, such as touchpads or
switches, to temporarily deactivate the alarm for a single opening of
the door from either direction. Such deactivation should last for no
more than 15 seconds. The deactivation touchpads or switches should
be located at least 54 inches above the threshold of the door.
(b) The pool should be equipped with a power safety cover which
complies with ASTM F1346-91 listed below.
(c) Other means of protection, such as self-closing doors with self-latching
devices, are acceptable so long as the degree of protection afforded is
not less than the protection afforded by (a) or (b) described above.
10. Where an aboveground pool structure is used as a barrier or where the
barrier is mounted on top of the pool structure, and the means of access is
a ladder or steps, then (a) the ladder to the pool or steps should be
capable of being secured, locked or removed to prevent access, or (b) the
ladder or steps should be surrounded by a barrier which meets Section I,
Paragraphs 1 through 9. When the ladder or steps are secured, locked, or
removed, any opening created should not allow the passage of a 4-inch
diameter sphere.
Section II: Barrier Locations
Barriers should be located so as to prohibit permanent structures, equipment
or similar objects from being used to climb the barriers.

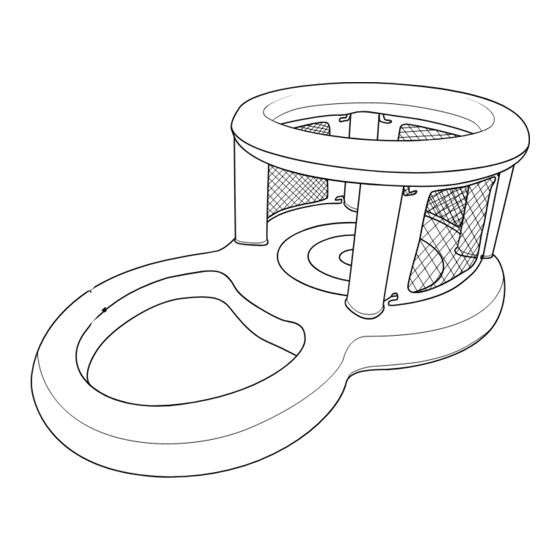

Product Description
Item
52385E
1
Part
• One bouncer
• Repair patch
